Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

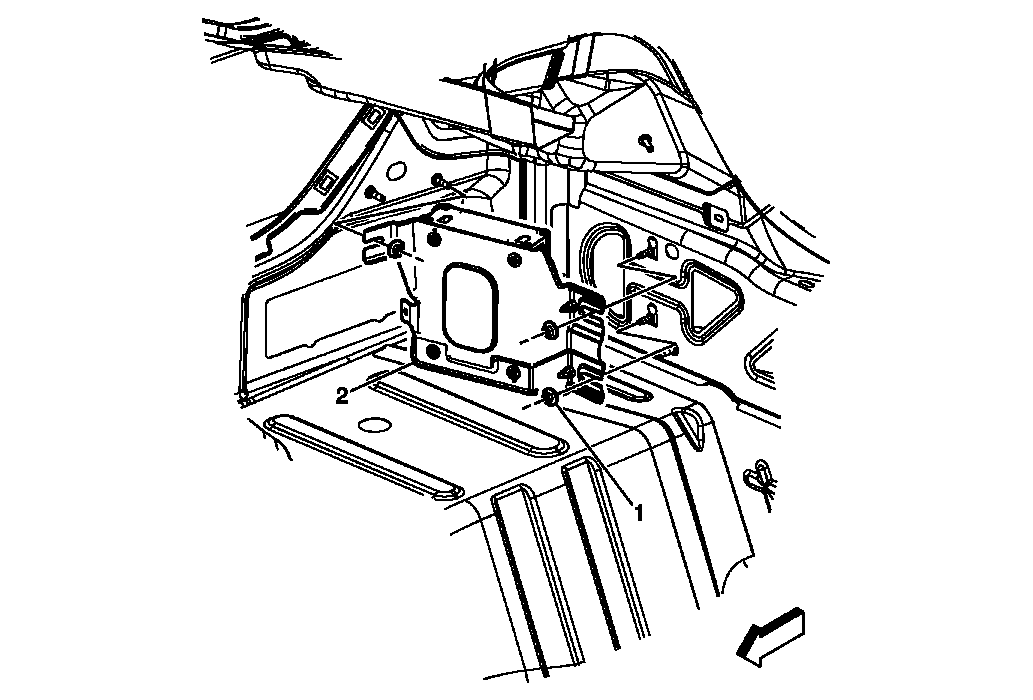

Fig 1: Identifying Amplifier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right side rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement . Program the audio amplifier after replacement. Refer to Control Module References .
1	Amplifier Radio Speaker Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Radio Speaker Amplifier Assembly

Callout

Component Name

Preliminary Procedure

Remove the right side rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
Program the audio amplifier after replacement. Refer to Control Module References .

Amplifier Radio Speaker Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Radio Speaker Amplifier Assembly
