DTC U0107: Notes

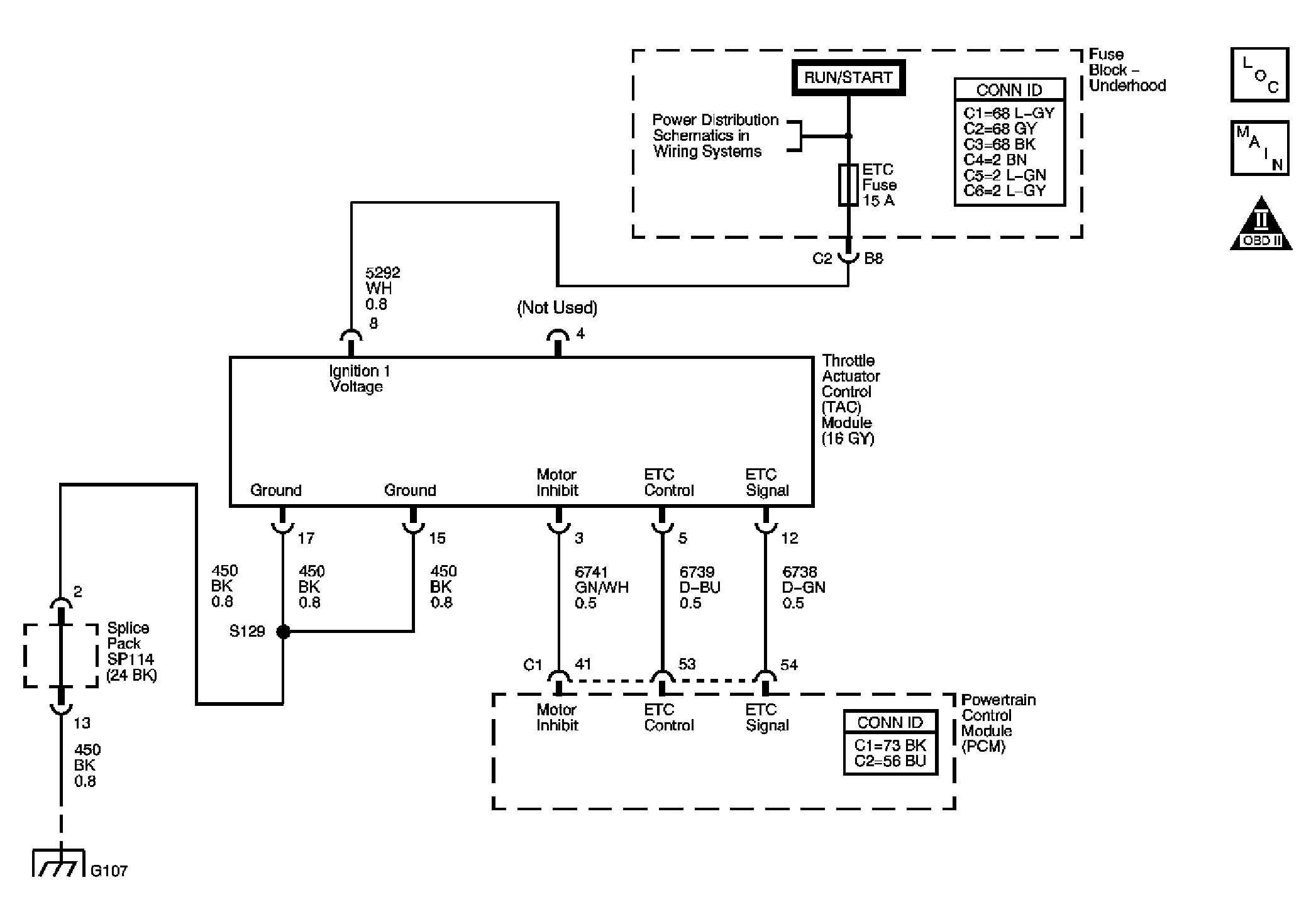

Fig 1: Throttle Actuator Control (TAC) Module Circuit

GM1350434

Courtesy of GENERAL MOTORS CORP.
