Automatic Transmission Shift Lock Control Schematics

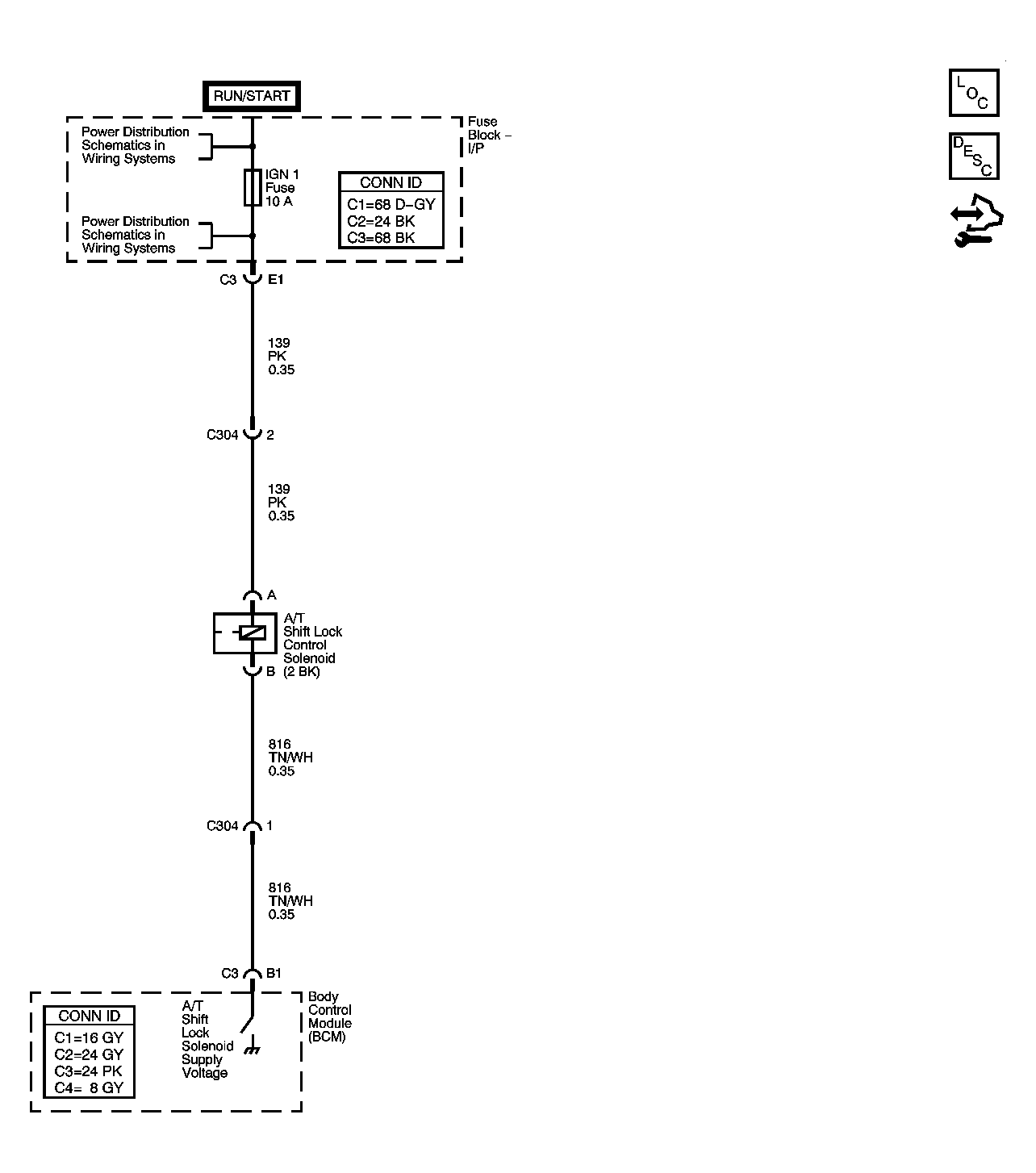

Fig 1: Shift Lock Control Wiring Diagram

GM1584027

Courtesy of GENERAL MOTORS CORP.
