Section 1190 (Cellular System, Entertainment System, And Navigation System)
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>
Amplifier (UQA) Wiring Schematics
Amplifier (UQA) Wiring Schematics
WARNING:
This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

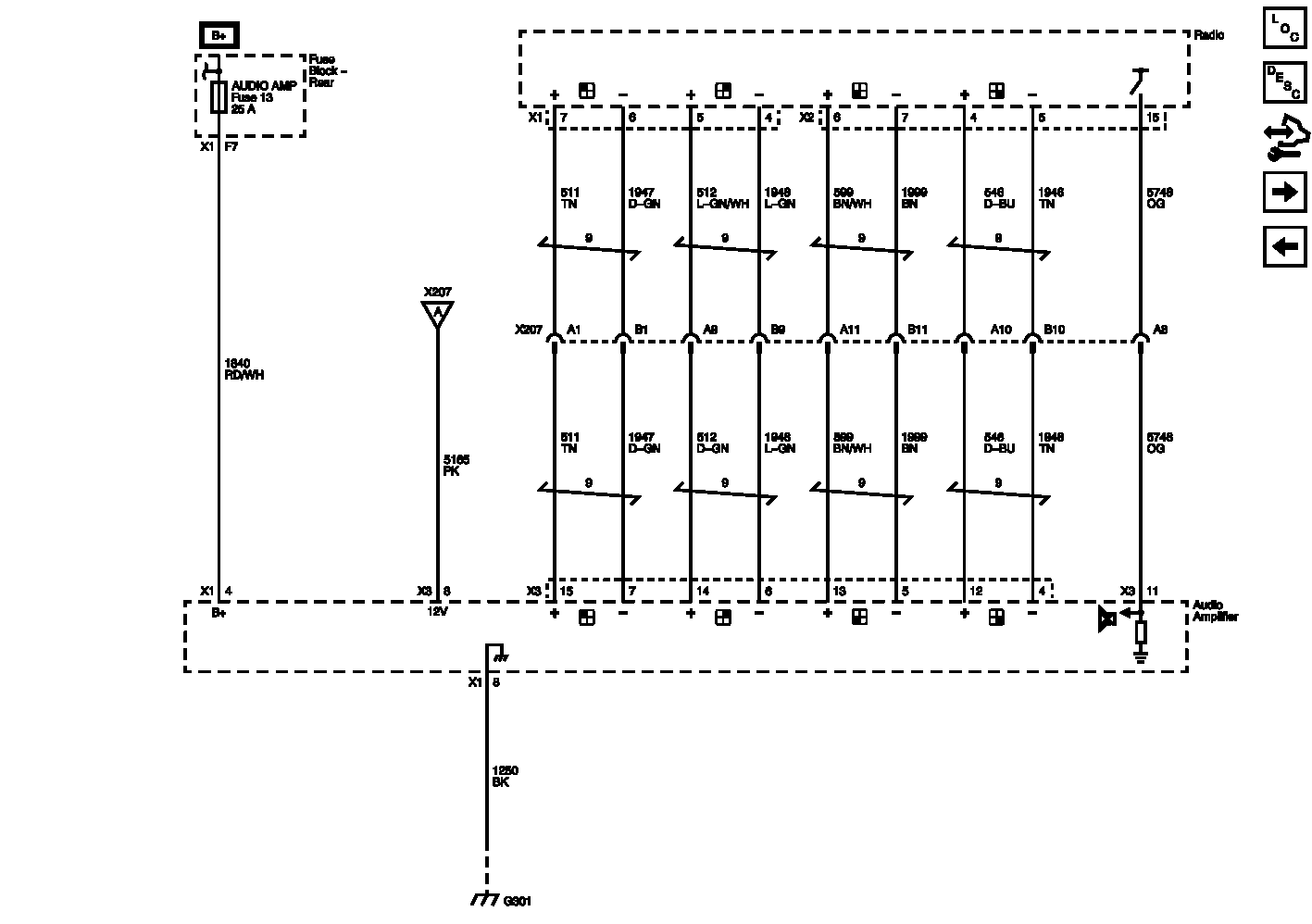

Fig 1: Amplifier (UQA) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
