Wireless Communication Interface Antenna Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

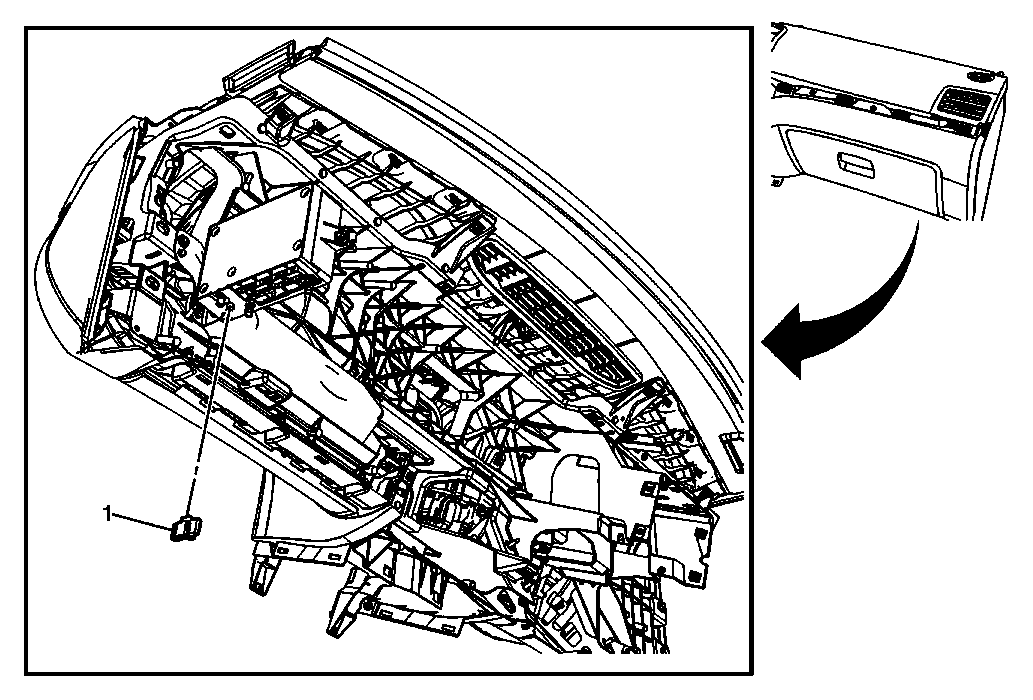

Fig 1: View of Wireless Communication Interface Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Compartment. Refer to Instrument Panel Compartment Replacement .
1	Wireless Communication Interface Antenna Bluetooth Module Procedure Unsnap Antenna from the Communication Module. Refer to Communication Interface Module Replacement If necessary.

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Compartment. Refer to Instrument Panel Compartment Replacement .

Wireless Communication Interface Antenna Bluetooth Module

Procedure

Unsnap Antenna from the Communication Module.
Refer to Communication Interface Module Replacement If necessary.
