Radio Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

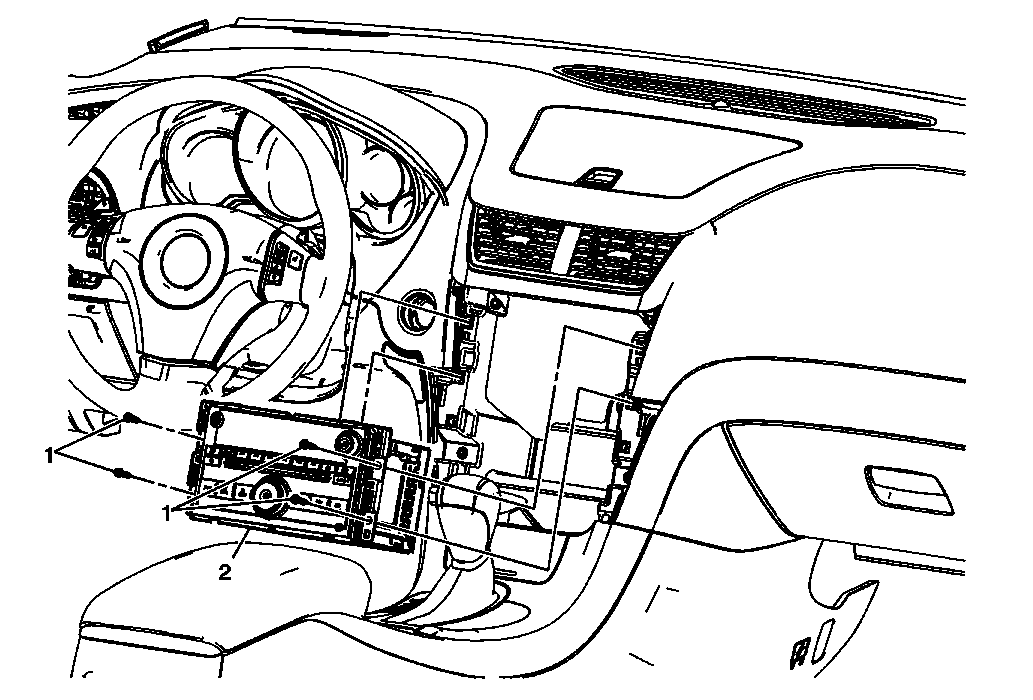

Fig 1: View Of Radio

Courtesy of GENERAL MOTORS COMPANY

Radio Replacement

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory upper trim panel. Refer to Instrument Panel Accessory Upper Trim Plate Replacement . Remove the HVAC control module. Refer to HVAC Control Module Replacement .
1	Radio Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Radio Assembly Procedure Disconnect electrical connector. Disconnect antenna cable. When installing the radio verify that the locator pin on the back of the radio is firmly seated in the I/P structure extension. Reprogram the radio after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Remove the instrument panel accessory upper trim panel. Refer to Instrument Panel Accessory Upper Trim Plate Replacement .
Remove the HVAC control module. Refer to HVAC Control Module Replacement .

Radio Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Radio Assembly

Procedure

Disconnect electrical connector.
Disconnect antenna cable.
When installing the radio verify that the locator pin on the back of the radio is firmly seated in the I/P structure extension.
Reprogram the radio after replacement. Refer to Control Module References .
