Front Upper Speaker Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

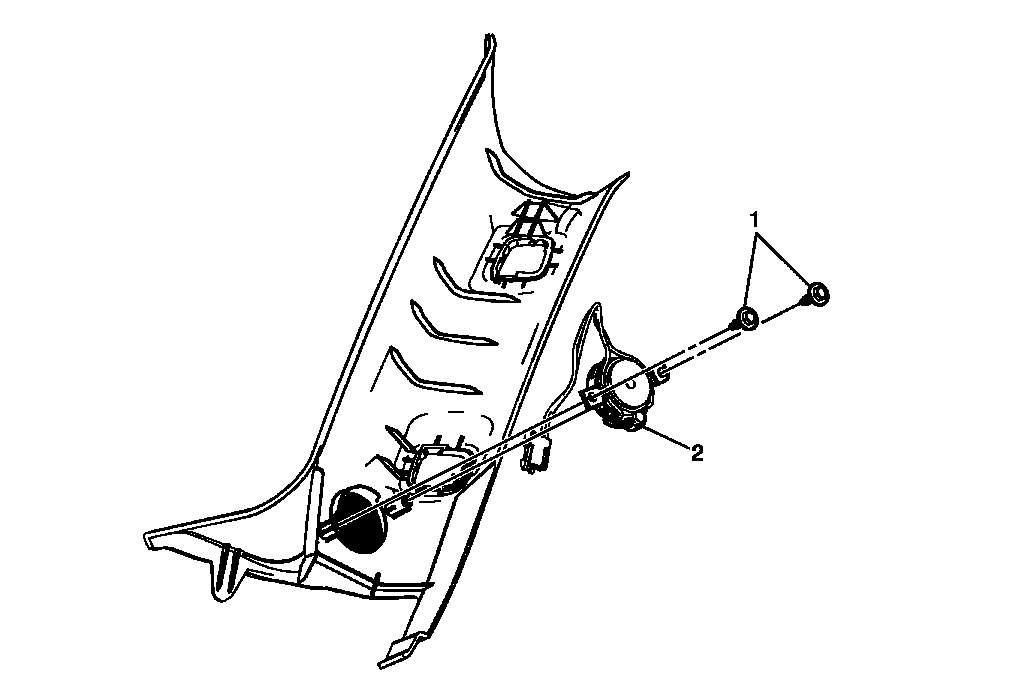

Fig 1: Front Upper Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement .
1	Speaker Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (25 lb in)
2	Front Upper Speaker Procedure Disconnect the electrical connector.
