Defogger Schematics

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

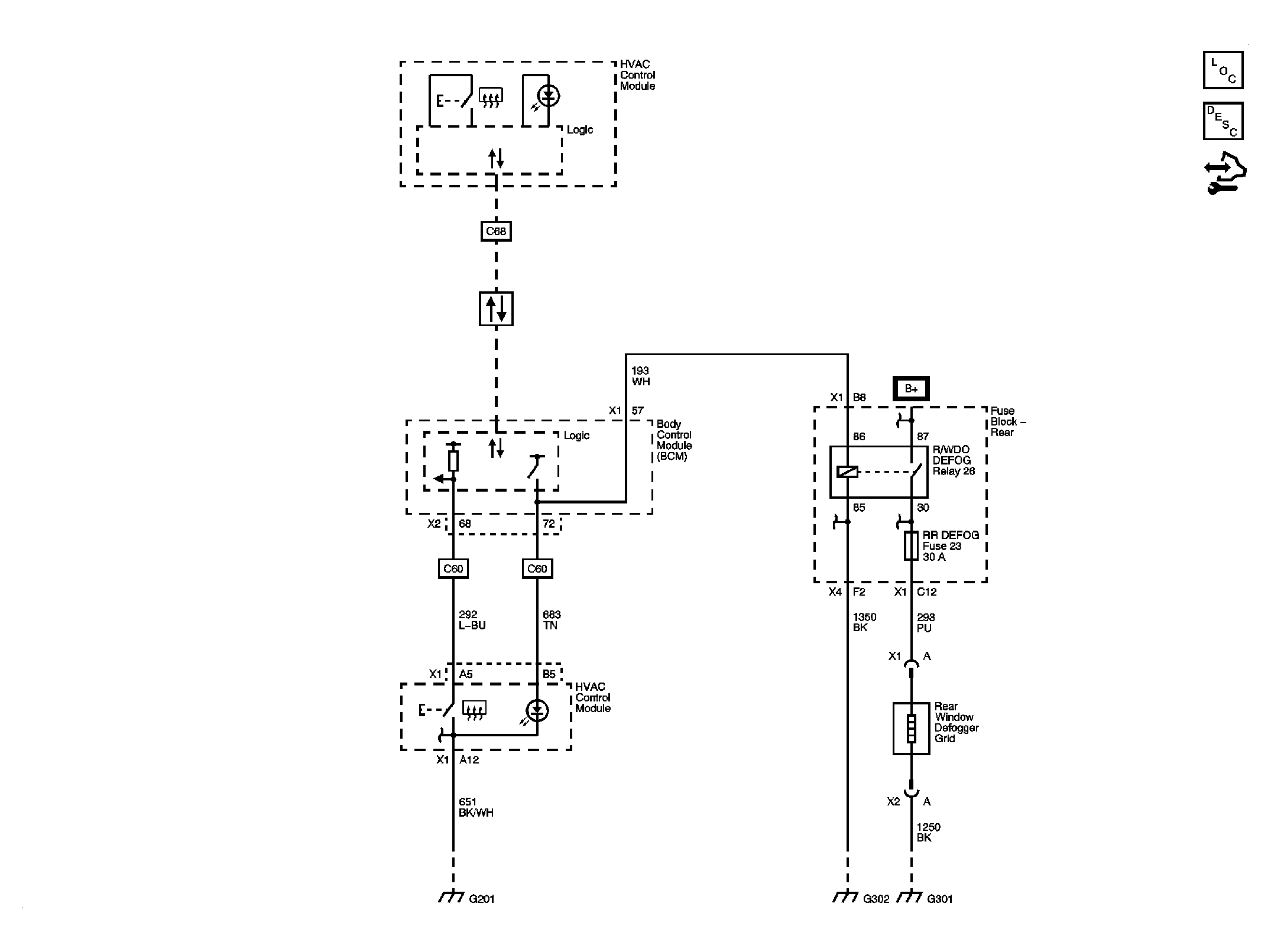

Fig 1: Defogger Schematic
GM2253042Courtesy of GENERAL MOTORS CORP.
