Horns Component Views

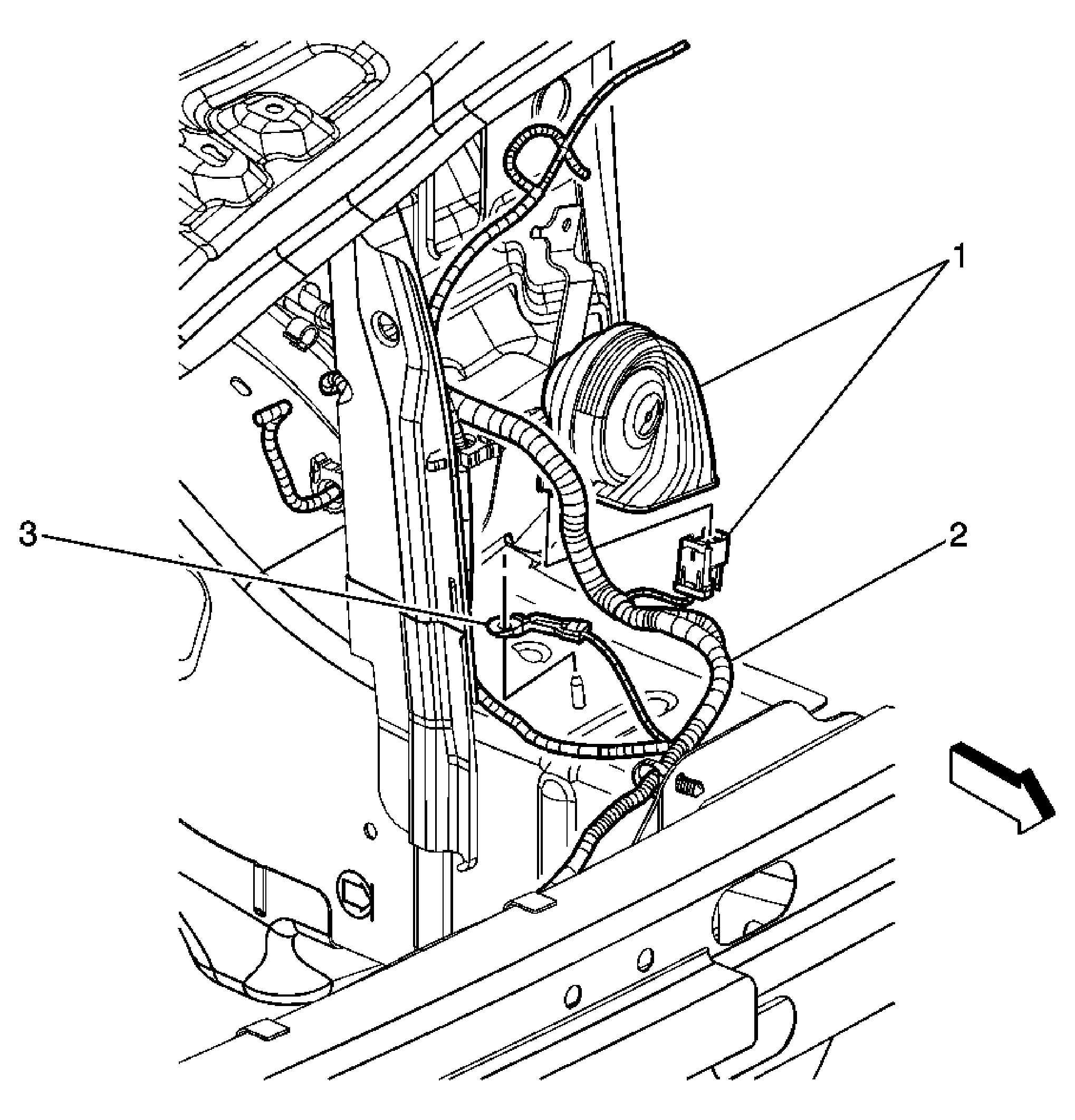

Fig 1: Horn Location
GM1653144Courtesy of GENERAL MOTORS CORP.
Fig 2: Steering Wheel Components
GM1692464Courtesy of GENERAL MOTORS CORP.
  1. Steering Wheel Controls - Left
  2. Steering Wheel Controls - Right
  3. Horn Switch
Callouts For Fig. 2

Callout Component Name
1 Horn
2 Forward Lamp Harness
3 G101
