Range Selector Displays Incorrect Range (3.5L): Notes

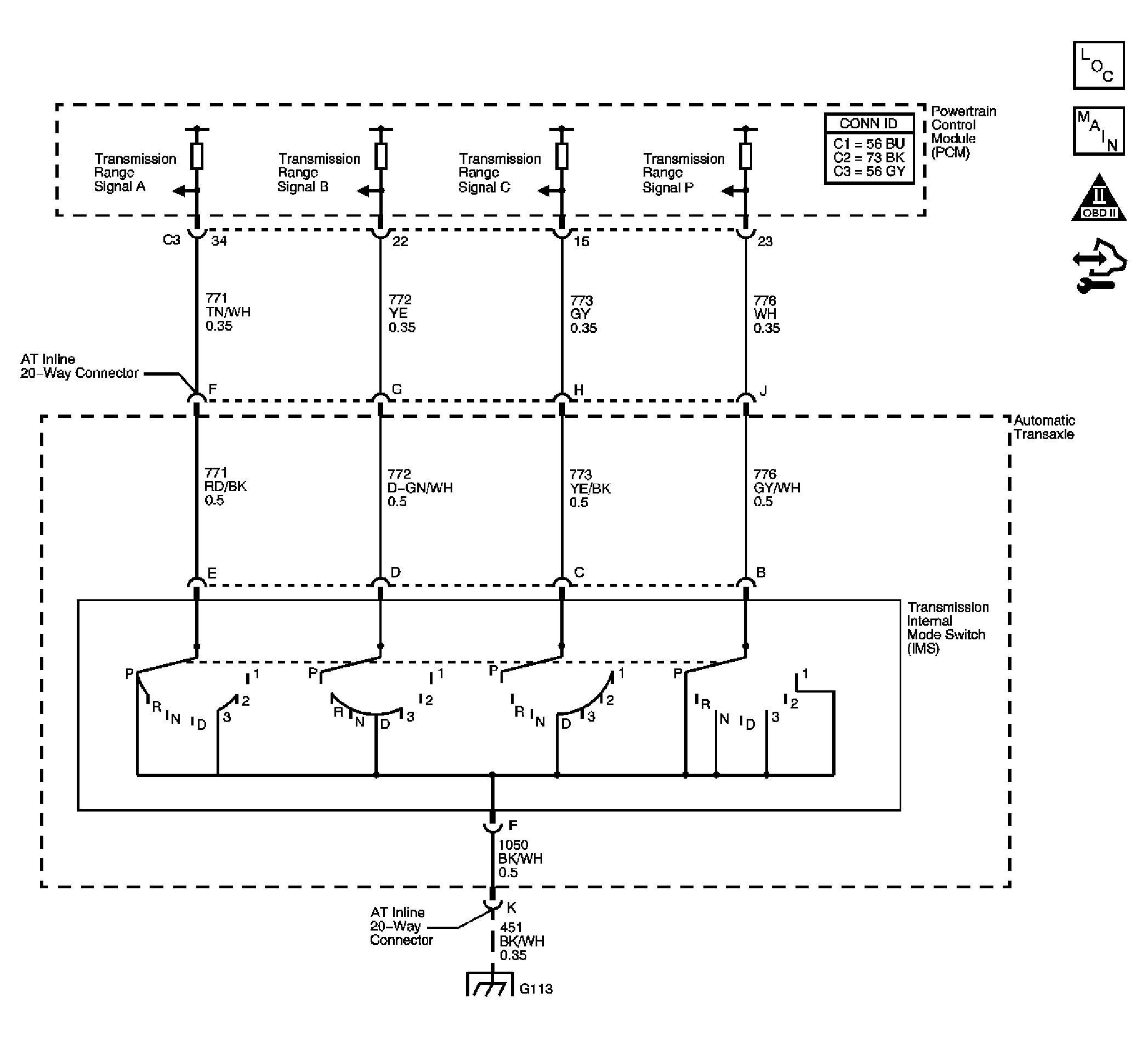

Fig 1: Internal Mode Switch (IMS) Circuit Schematic (3.5L)

GM1545501

Courtesy of GENERAL MOTORS CORP.
