Installation Procedure

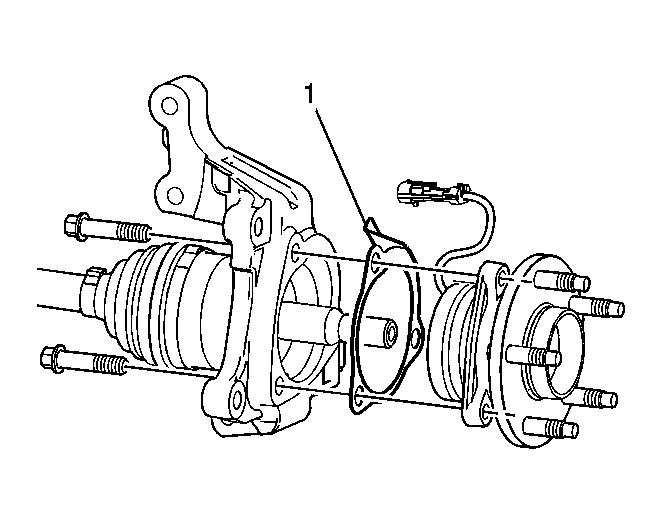

Fig 1: Locating Wheel Bearing/Hub Spacer
GM1385624Courtesy of GENERAL MOTORS CORP.
  1. Install the wheel bearing/hub assembly and spacer (1) to the steering knuckle and wheel drive shaft. Position the spacer as noted prior to removal.
    NOTE: This is a self-retaining fastener joint that does not require thread locking compounds. Do not attempt to clean the threads with a standard tap. If a standard tap is used, damage to the joint threads will occur.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the wheel bearing/hub assembly mounting bolts. Tighten the bolts evenly to draw the bearing assembly to the steering knuckle, then tighten the bolts to specifications.

    Tighten:  Tighten the bolts to 115 N.m (85 lb ft).

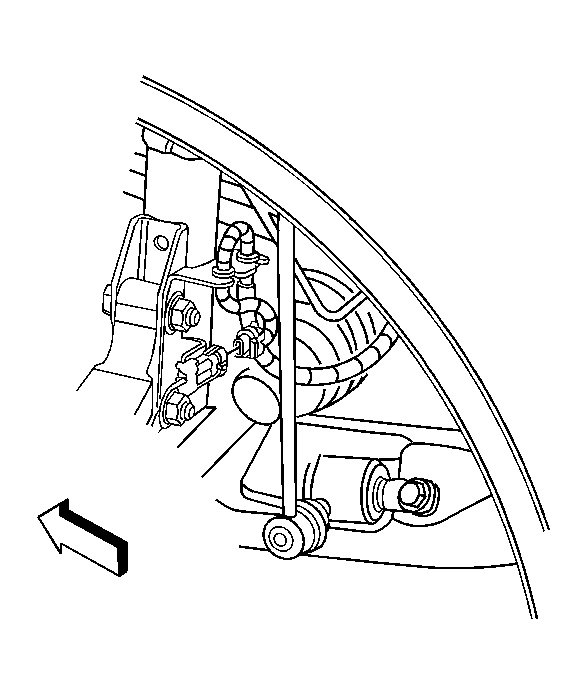

    Fig 2: View Of Wheel Speed Sensor Jumper Electrical Connector
    GM890994Courtesy of GENERAL MOTORS CORP.
  3. Install the wheel speed sensor jumper connector to the harness retaining bracket on the strut, if equipped with ABS.
  4. Connect the electrical connector to the wheel speed sensor jumper, if equipped with ABS.
  5. Install the brake rotor abd install the brake caliper and bracket as an assembly. Refer to Brake Rotor Replacement - Front in Disc Brakes.
  6. Install the wheel drive shaft nut. Refer to Wheel Drive Shaft Replacement in Wheel Drive Shafts.
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (5 Lug Wheel) or Tire and Wheel Removal and Installation (4 Lug wheel) in Tires and Wheels.
  8. Lower the vehicle.
