Front Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

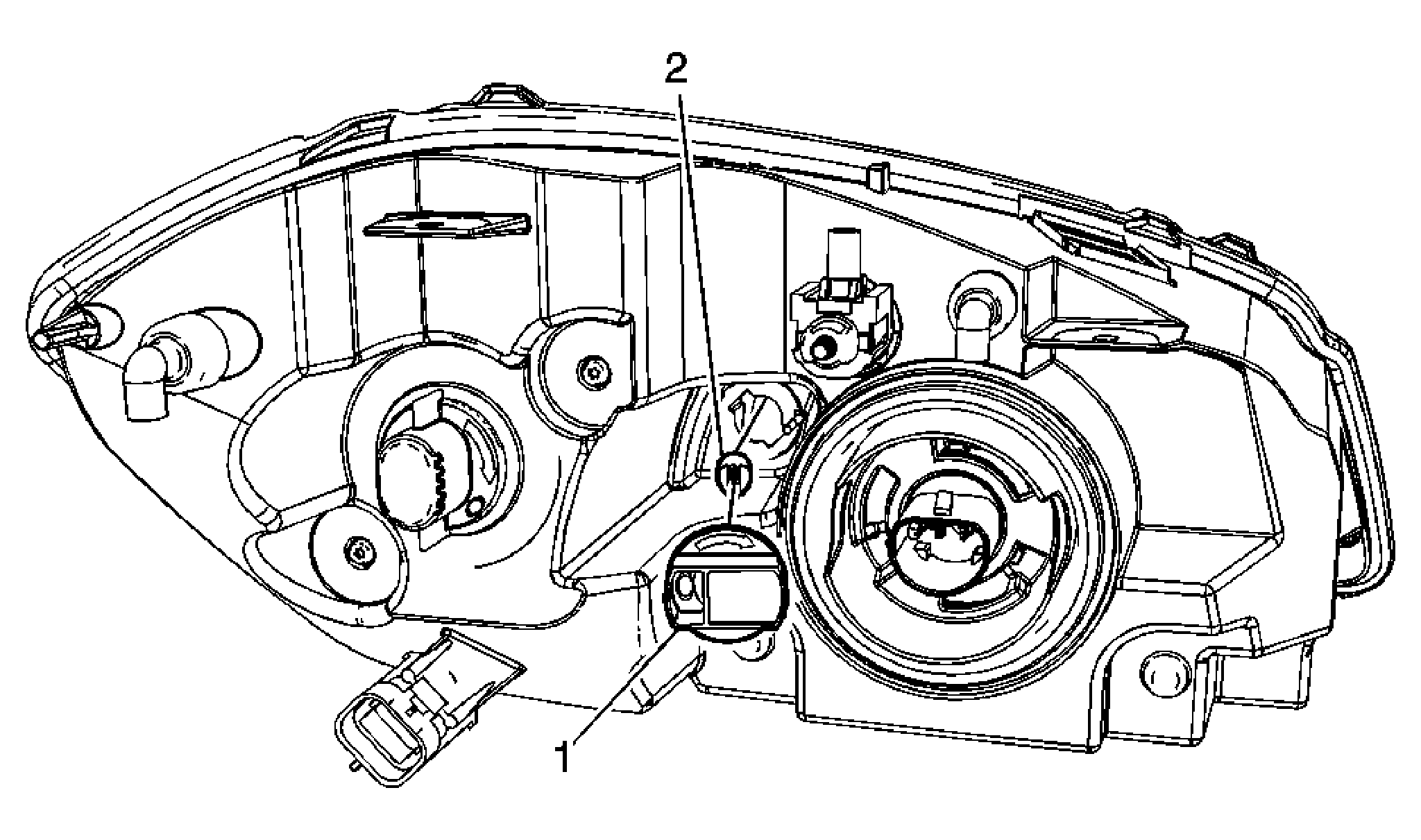

Fig 1: Identifying Front Side Marker Lamp Bulb
GM2018017Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the headlamp bracket assembly. Refer to Headlamp Bracket Replacement .
1 Marker Lamp Bulb Harness Connector
Tip:  Rotate the connector counter-clockwise to unlock from the headlamp assembly.
2 Marker Lamp Bulb
