Cruise Control Schematics

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

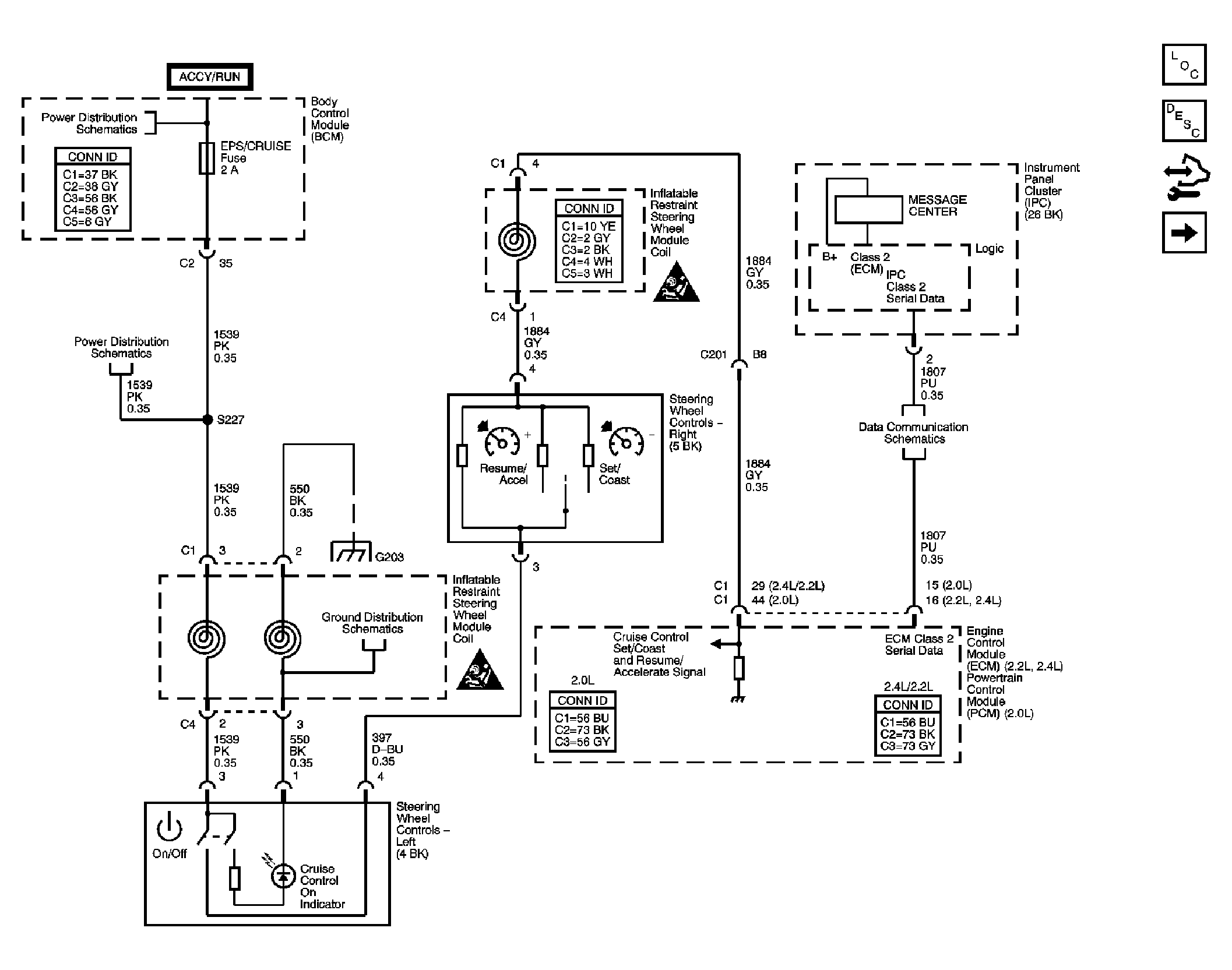

Fig 1: Driver Controls

Courtesy of GENERAL MOTORS CORP.

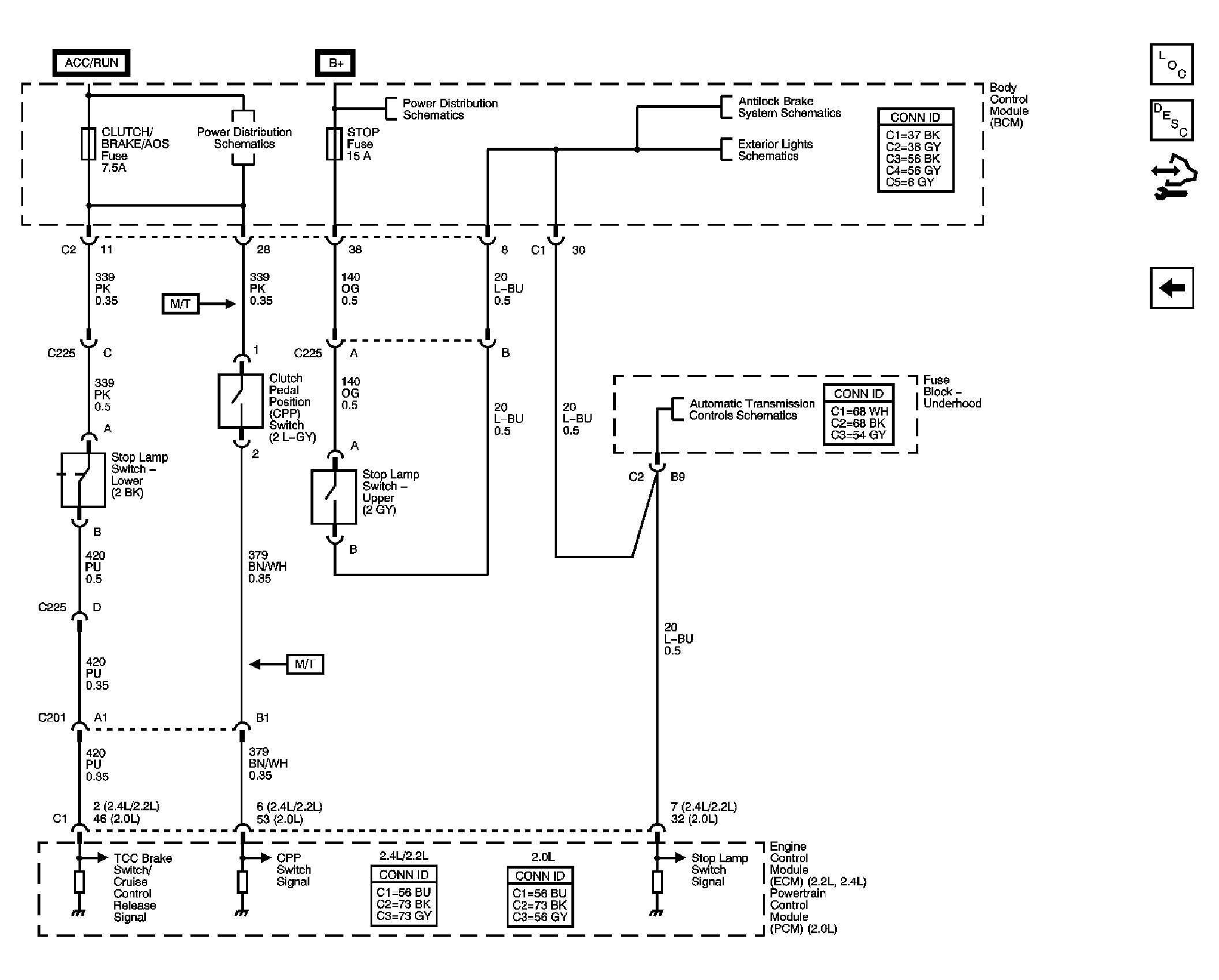

Fig 2: Stop Lamp and Clutch Switches

Courtesy of GENERAL MOTORS CORP.
