Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment release switch to the steering column filler panel.

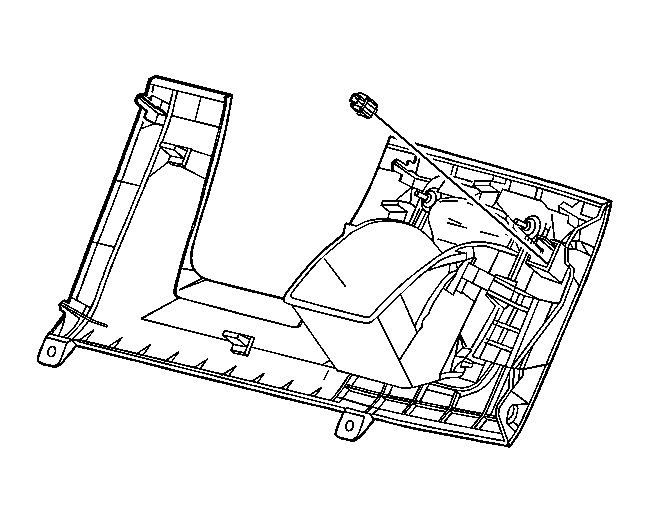

    2. Fig 1: View Of Rear Compartment Release Switch
    GM877795Courtesy of GENERAL MOTORS CORP.
  2. Install the steering column filler panel. Refer to Steering Column Filler Replacement in Instrument Panel, Gages, and Console.
