Retained Accessory Power (RAP) Schematics

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

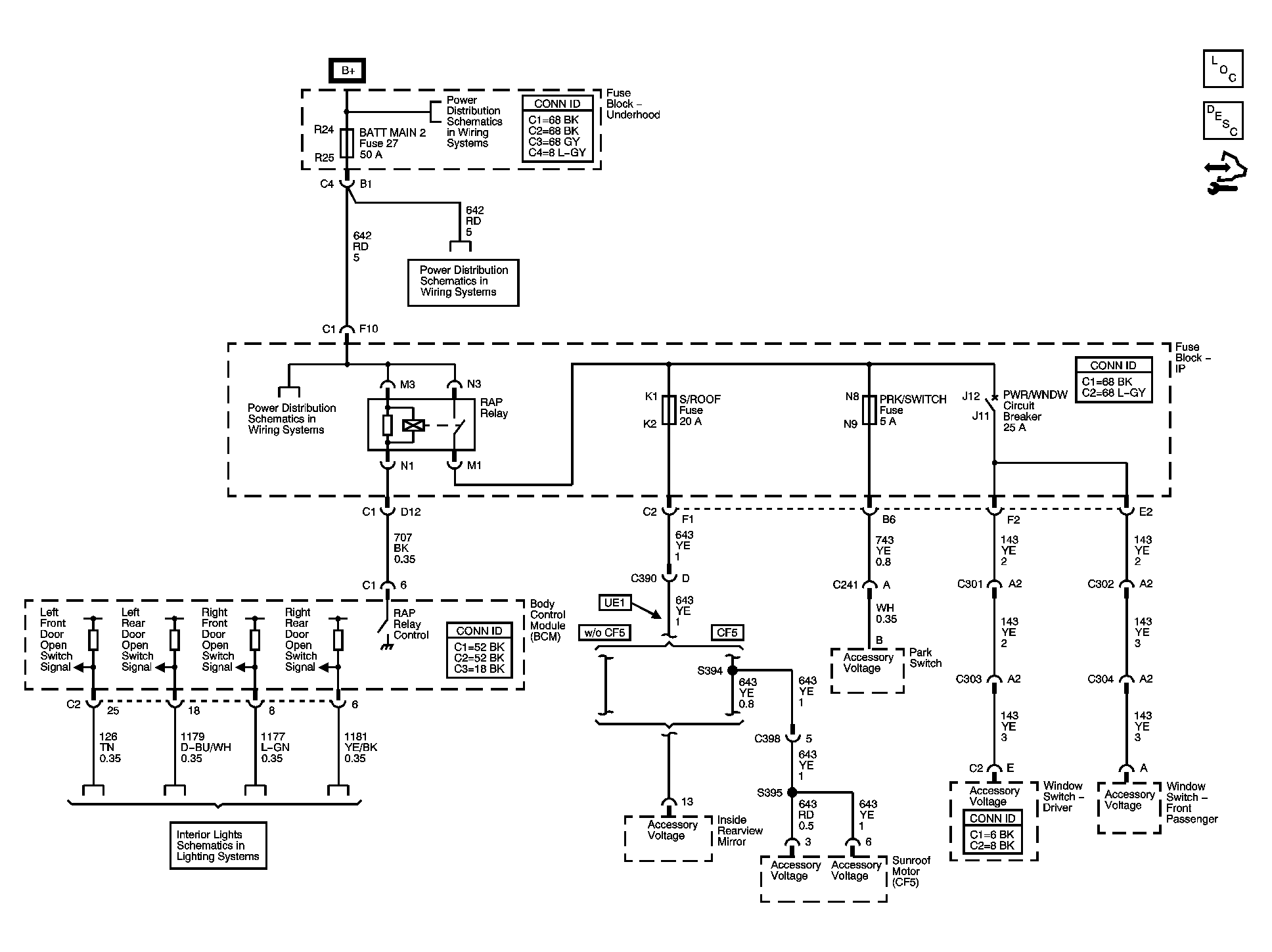

Fig 1: Retained Accessory Power (RAP) Schematic
GM1476971Courtesy of GENERAL MOTORS CORP.
