Driver Information Center Replacement

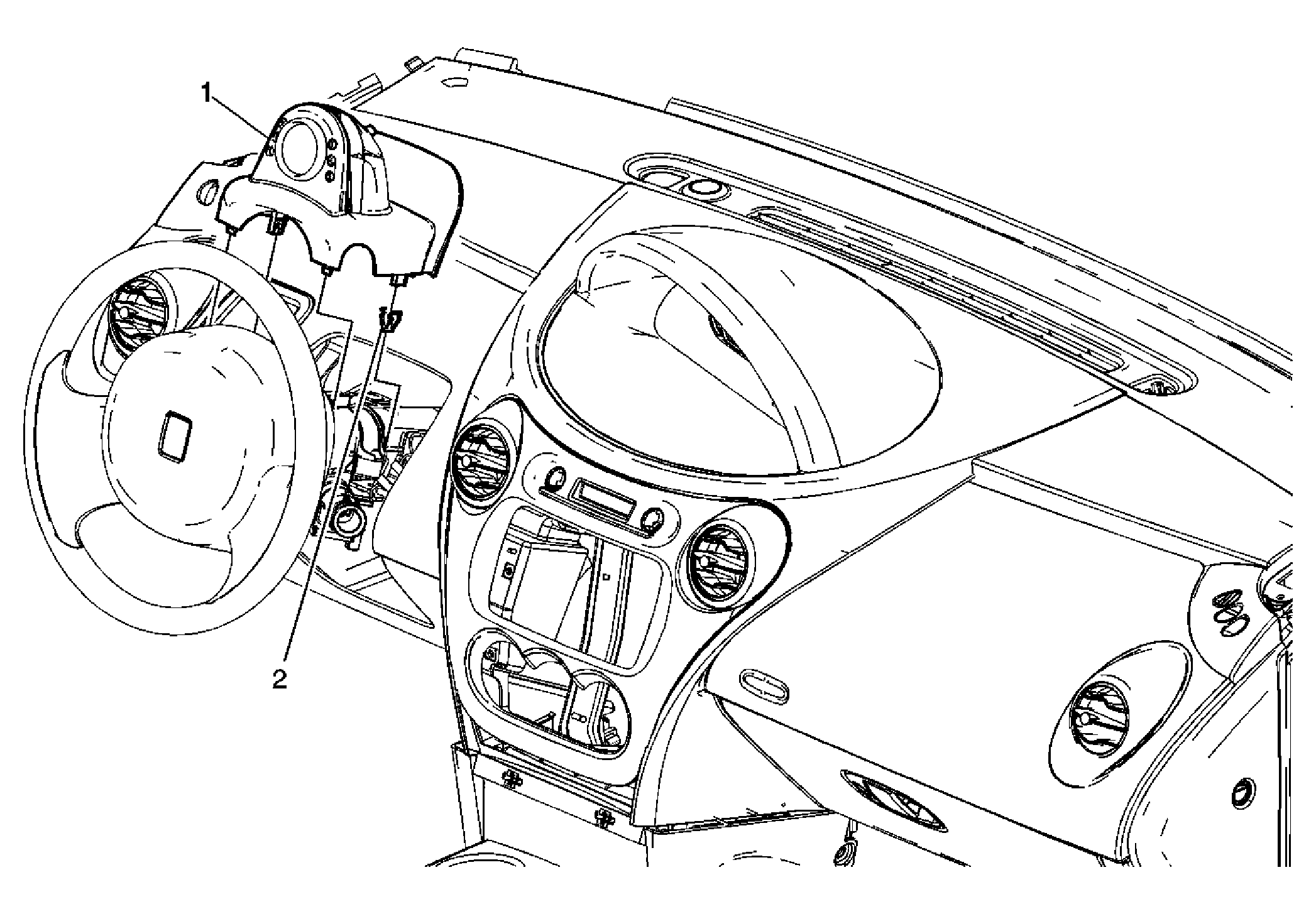

Fig 1: IdentifyingDriver Information Center
GM1663959Courtesy of GENERAL MOTORS CORP.
Driver Information Center Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Driver Information Display Assembly
Tip:
  1. Pull the display assembly upward to disengage the retainers.
  2. Disconnect the electrical connector.
2 Retainer Clip (Qty:4)
