Installation Procedure

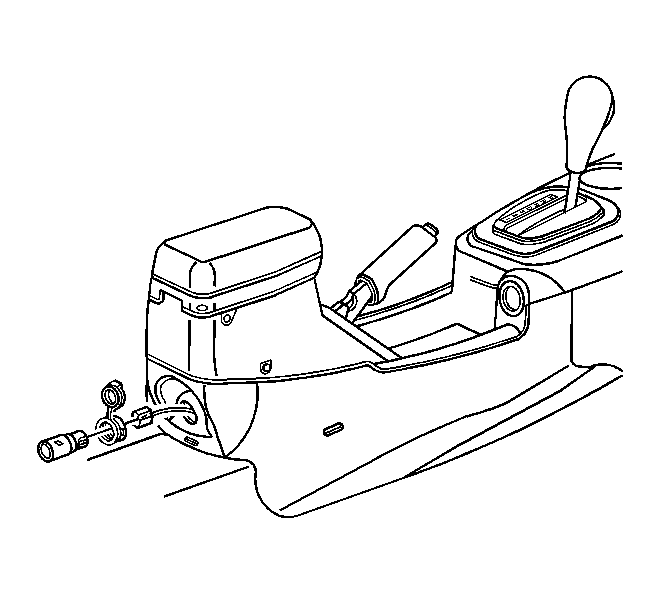

Fig 1: View Of Floor Console Power Outlet Cover
GM875768Courtesy of GENERAL MOTORS CORP.
  1. Position the power outlet cover with the key to the slot into the power outlet hole.
  2. Install the power accessory receptacle. Refer to Cigar Lighter Housing Replacement - Floor Console in Power Outlets.
