Removal Procedure

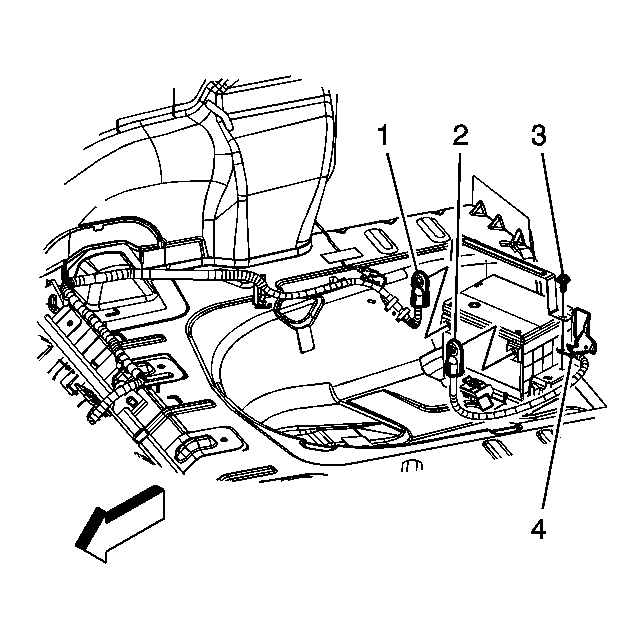

Fig 1: Identifying Negative/Positive Battery Cable
GM1650324Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable (2). Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Loosen the positive battery cable (1) bolt.
  3. Remove the positive battery cable from the battery.

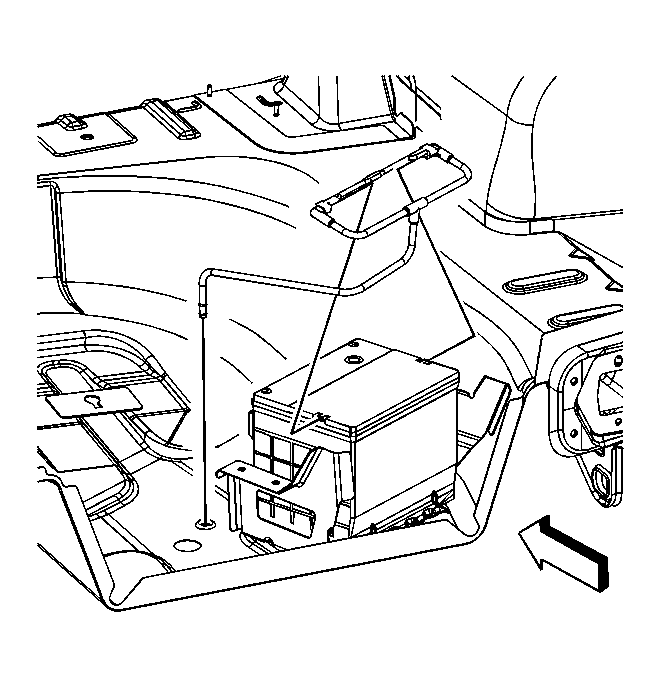

    Fig 2: View Of Battery Vent Tube
    GM1650318Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery vent tube from the battery and grommet.

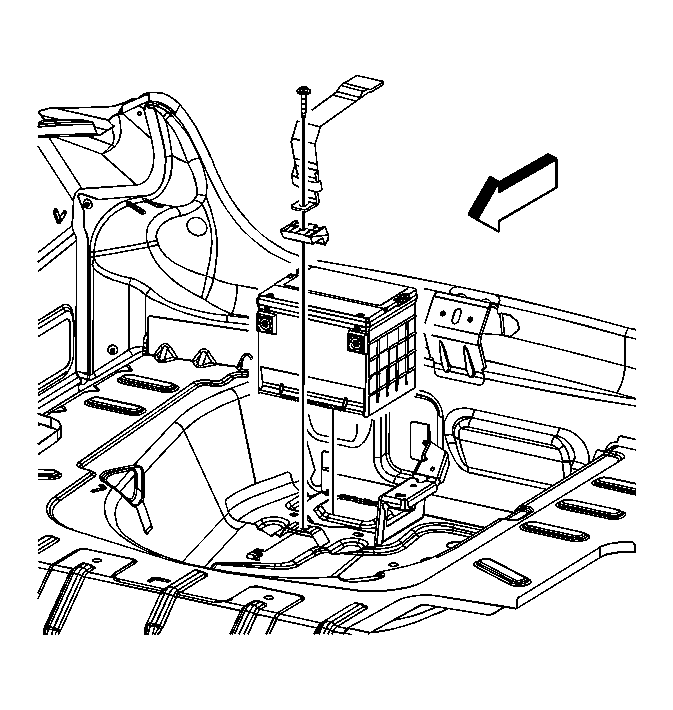

    Fig 3: Locating Battery
    GM1650317Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery retainer bolt.
  6. Remove the battery strap and retainer.
    IMPORTANT: Do not tip the battery more than 40 degrees during removal.
  7. Remove the battery.
