ABS Schematics

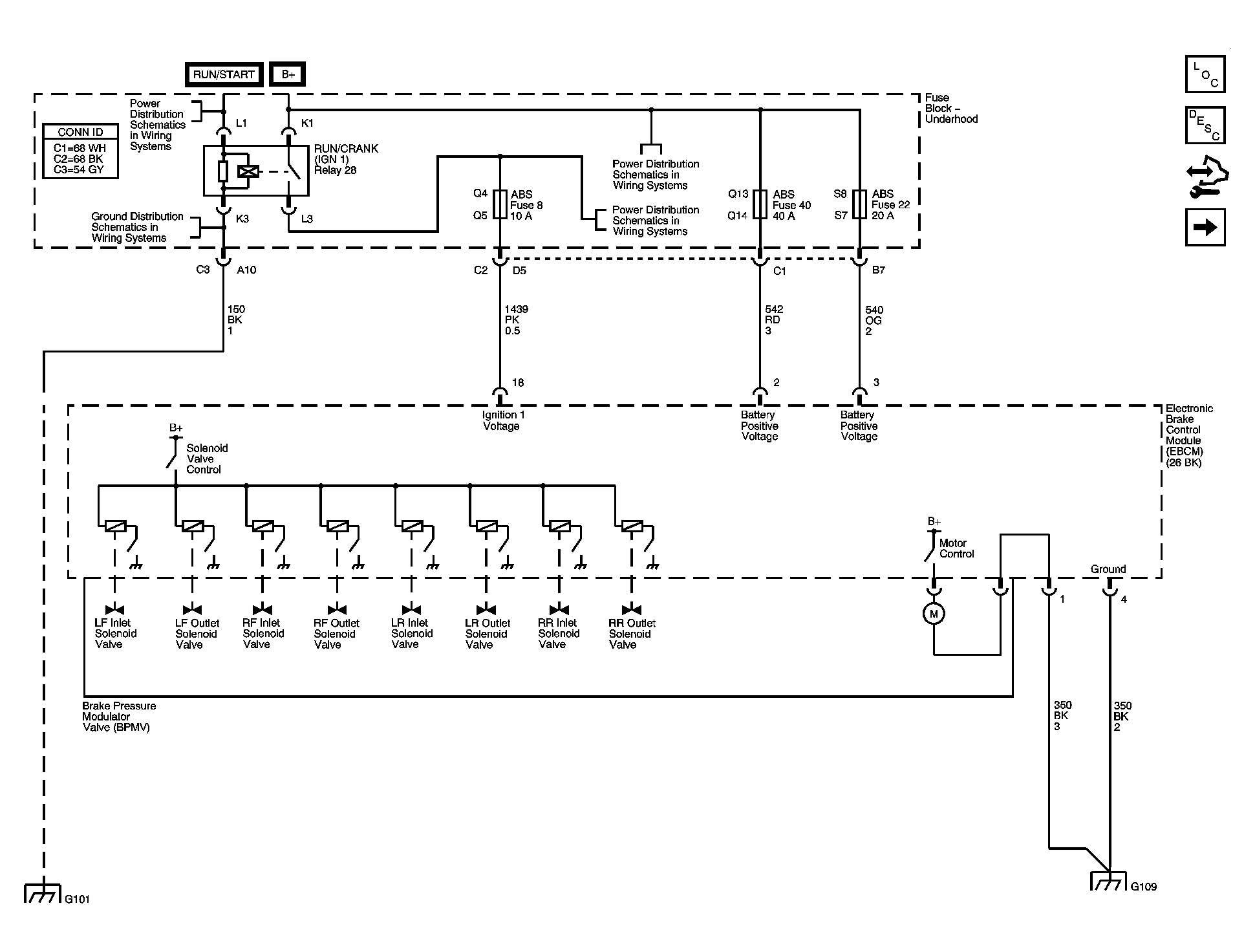

Fig 1: Power, Ground and BPMV Controls Schematic
GM1434115Courtesy of GENERAL MOTORS CORP.

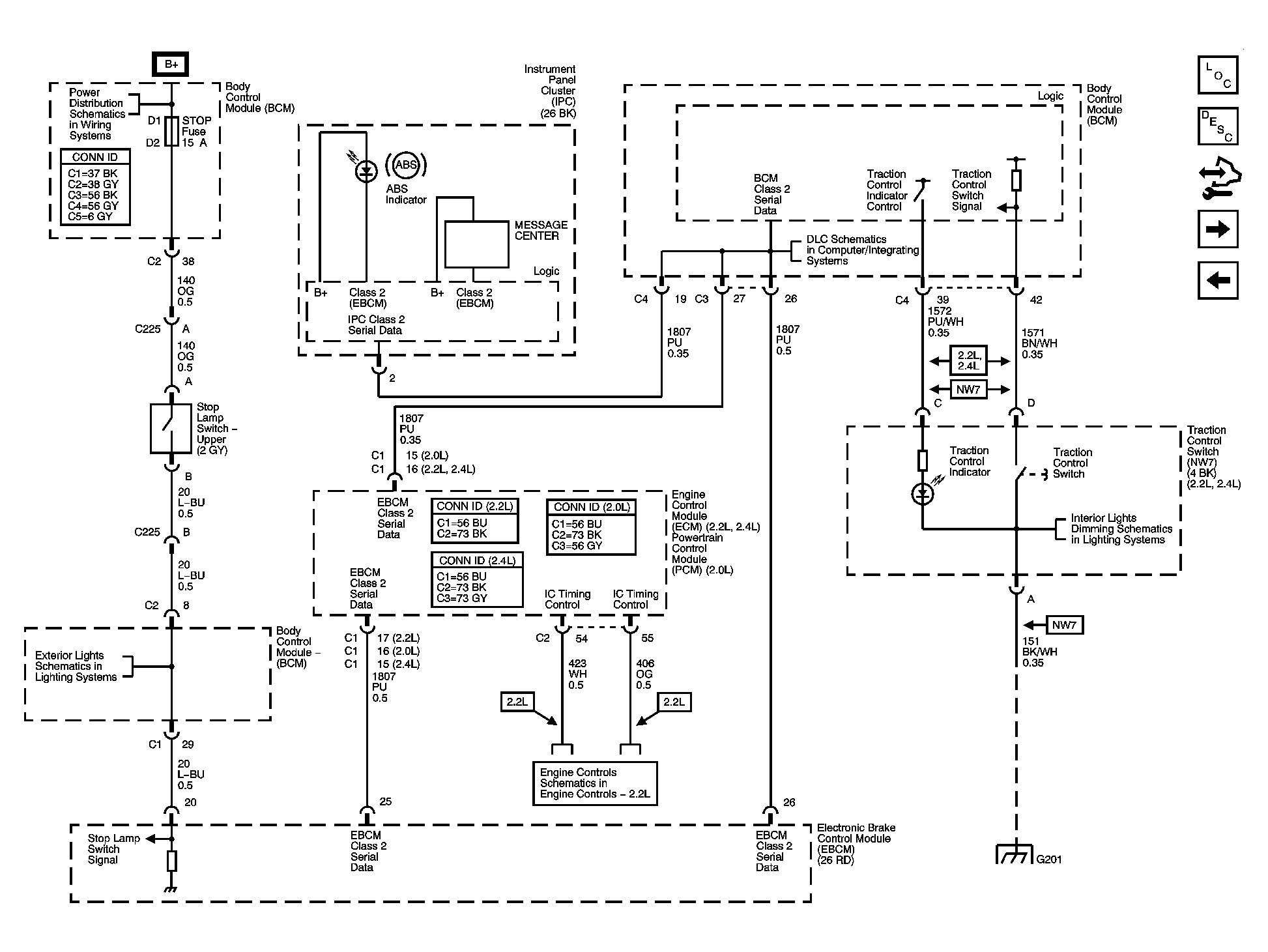

Fig 2: Traction Control, DLC and Indicators Schematic
GM1592461Courtesy of GENERAL MOTORS CORP.

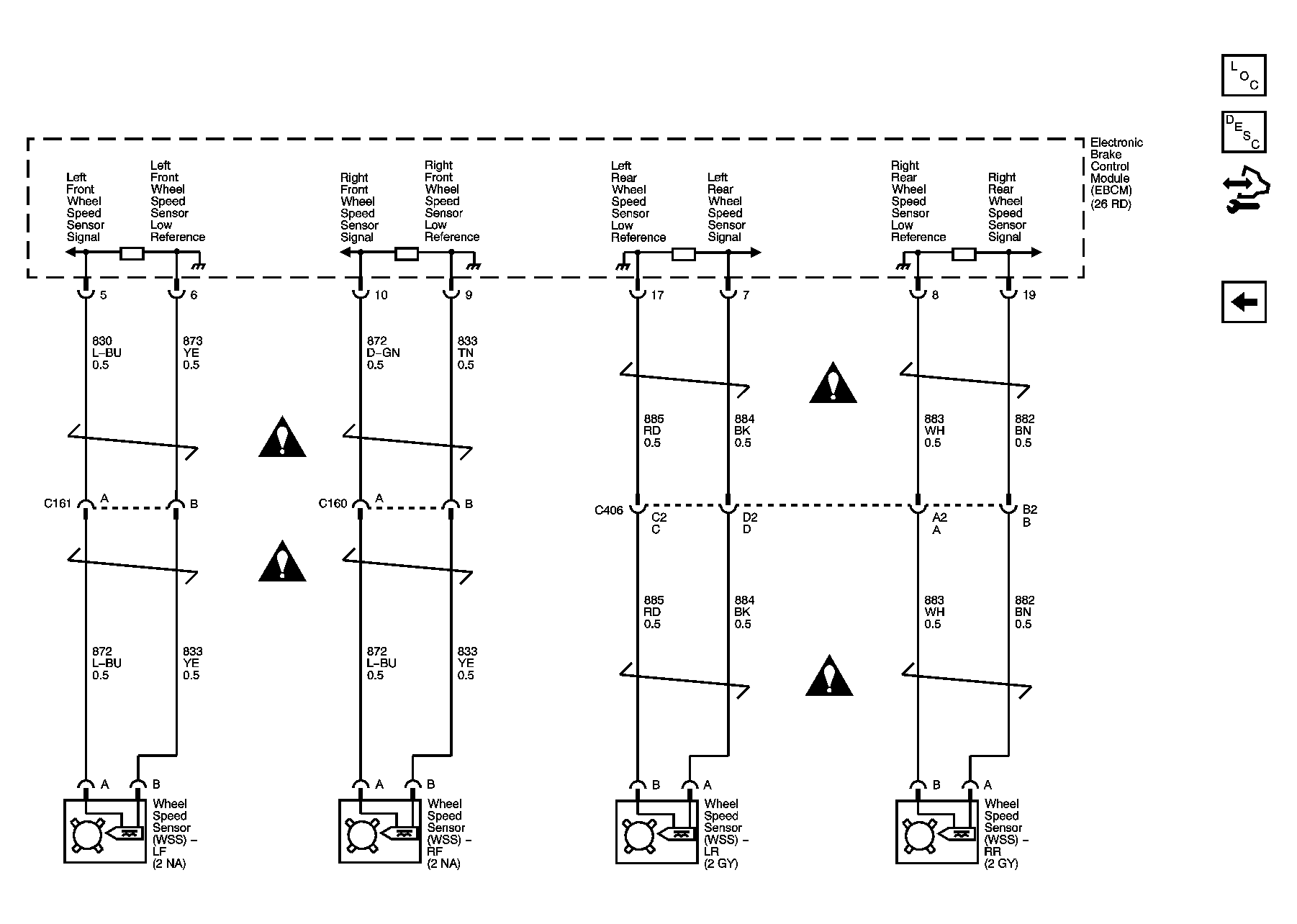

Fig 3: Wheel Speed Sensors Schematic
GM1470969Courtesy of GENERAL MOTORS CORP.
