Power Distribution Schematics

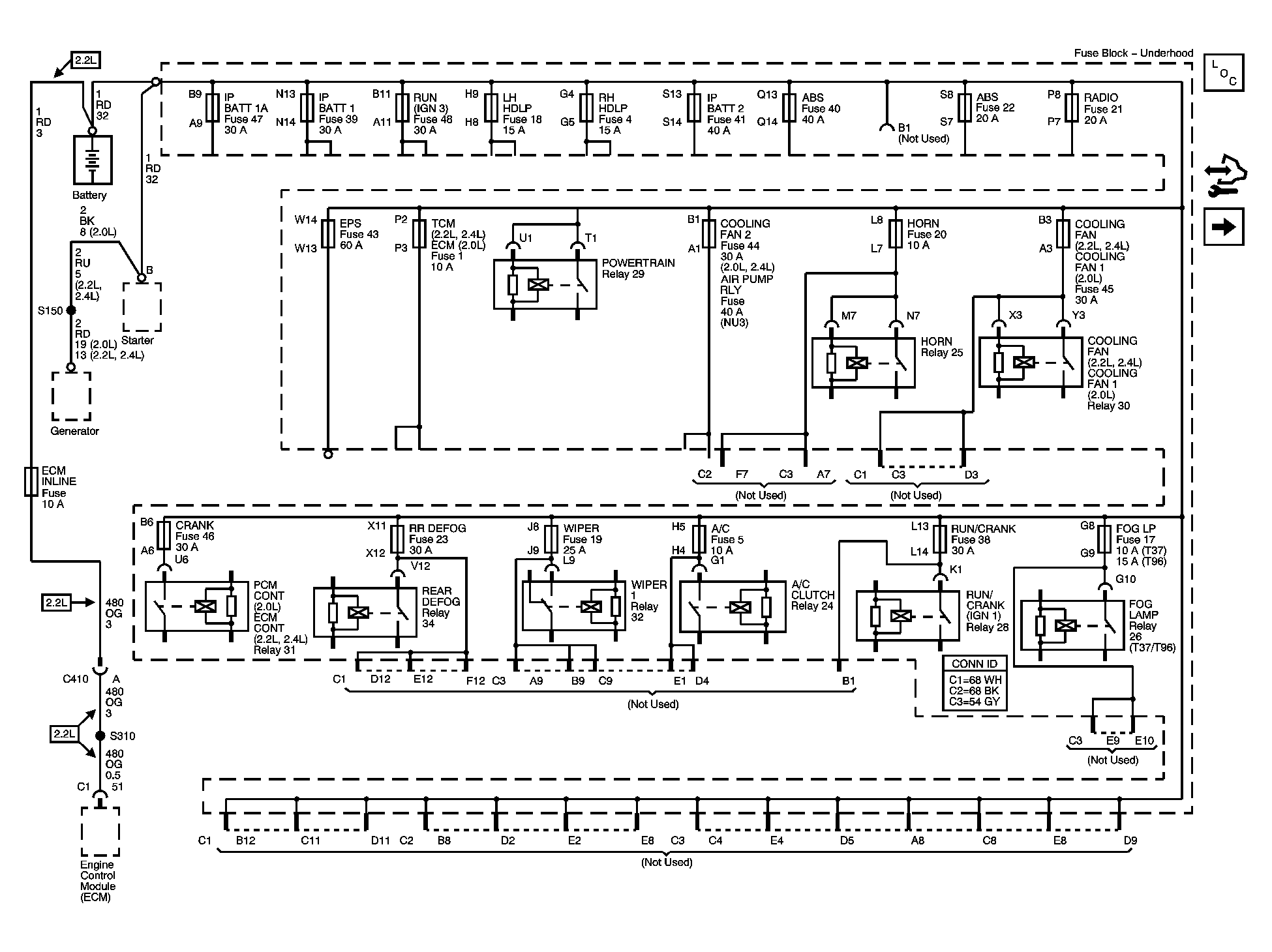

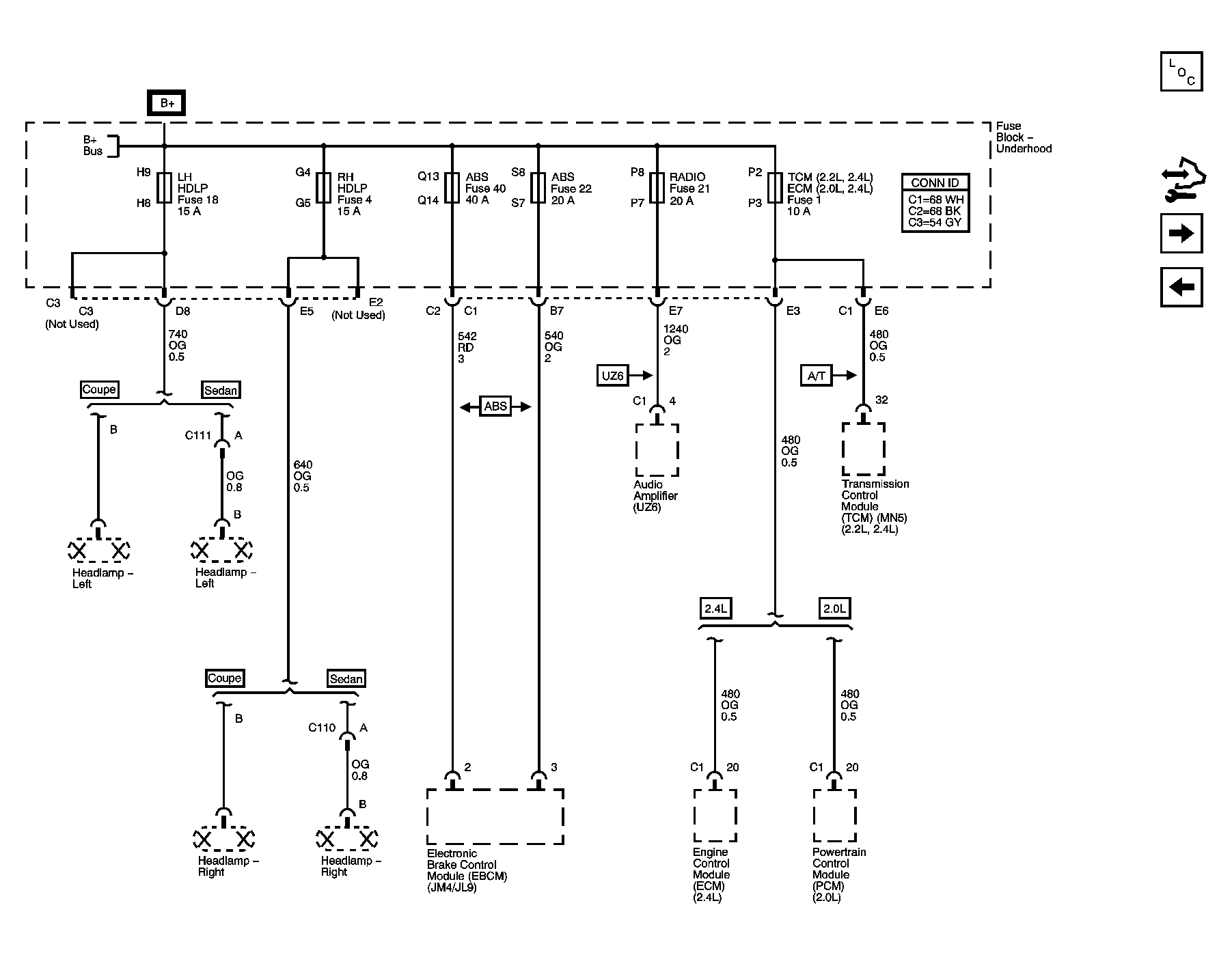

Fig 1: B+ Bus

Courtesy of GENERAL MOTORS CORP.

Fig 2: ABS (40A), ABS (20A), ECM, LH HDLP, RADIO, RH HDLP, and TCM Fuses

Courtesy of GENERAL MOTORS CORP.

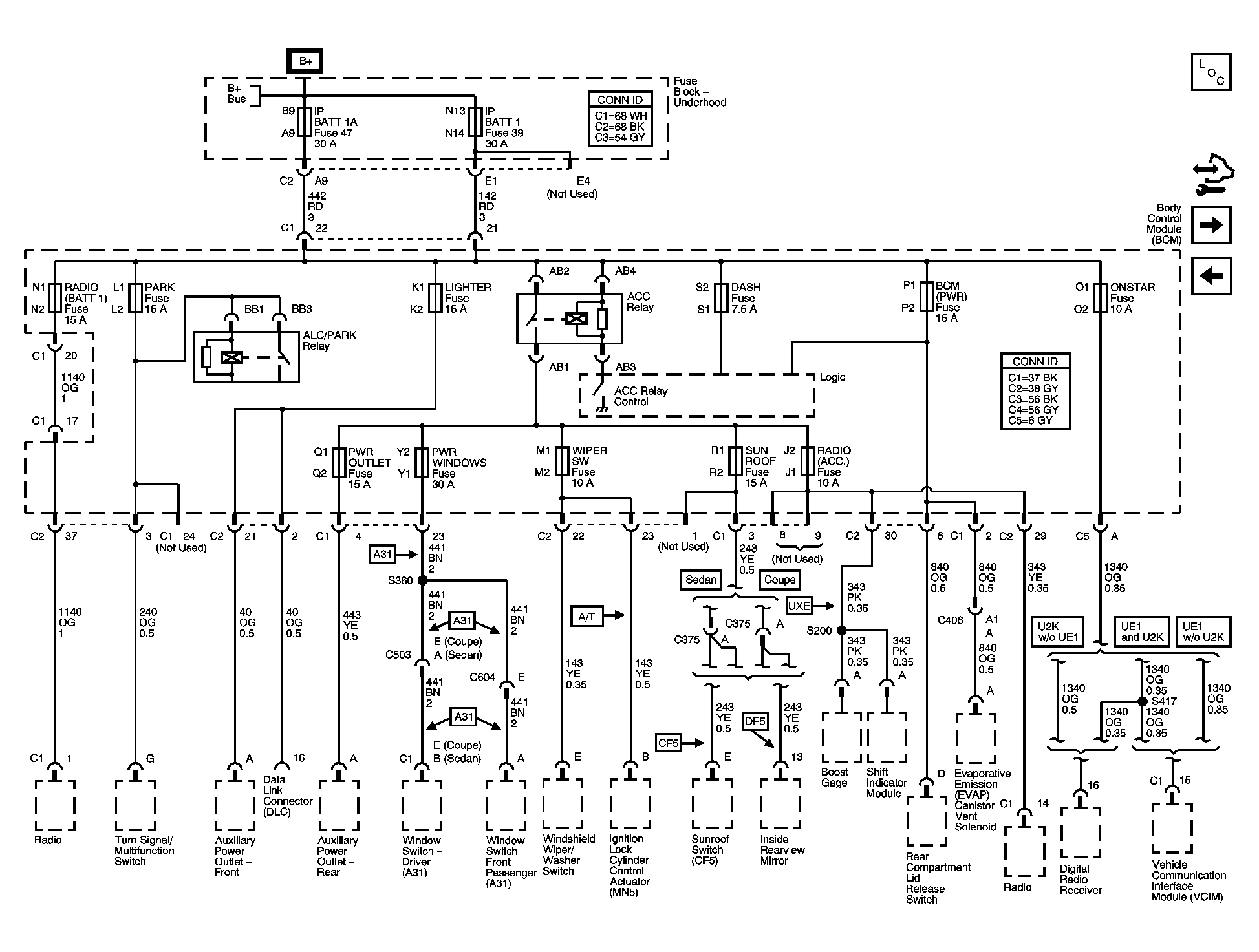

Fig 3: BCM (PWR), DASH, IP BATT 1, IP BATT 1A, LIGHTER, ONSTAR, PARK, PWR OUTLET, PWR WINDOWS, RADIO (ACC.), RADIO (BATT 1), SUN ROOF, and WIPER SW Fuses

Courtesy of GENERAL MOTORS CORP.

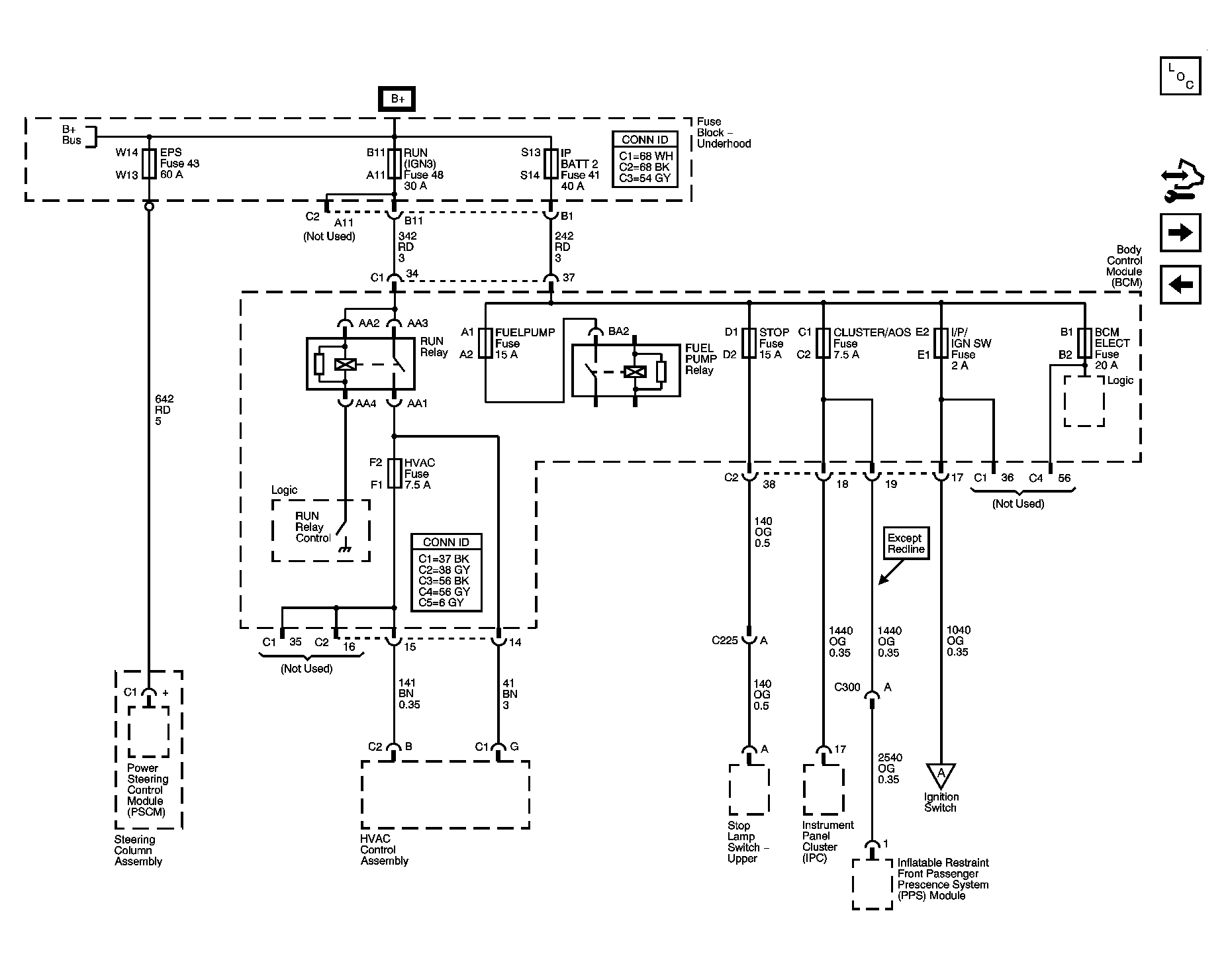

Fig 4: BCM ELECT, CLUSTER/AOS, EPS (60A), FUEL PUMP, HVAC, IGN SW, IP BATT 2, RUN (IGN 3), and STOP Fuses, RUN and Fuel Pump Relays

Courtesy of GENERAL MOTORS CORP.

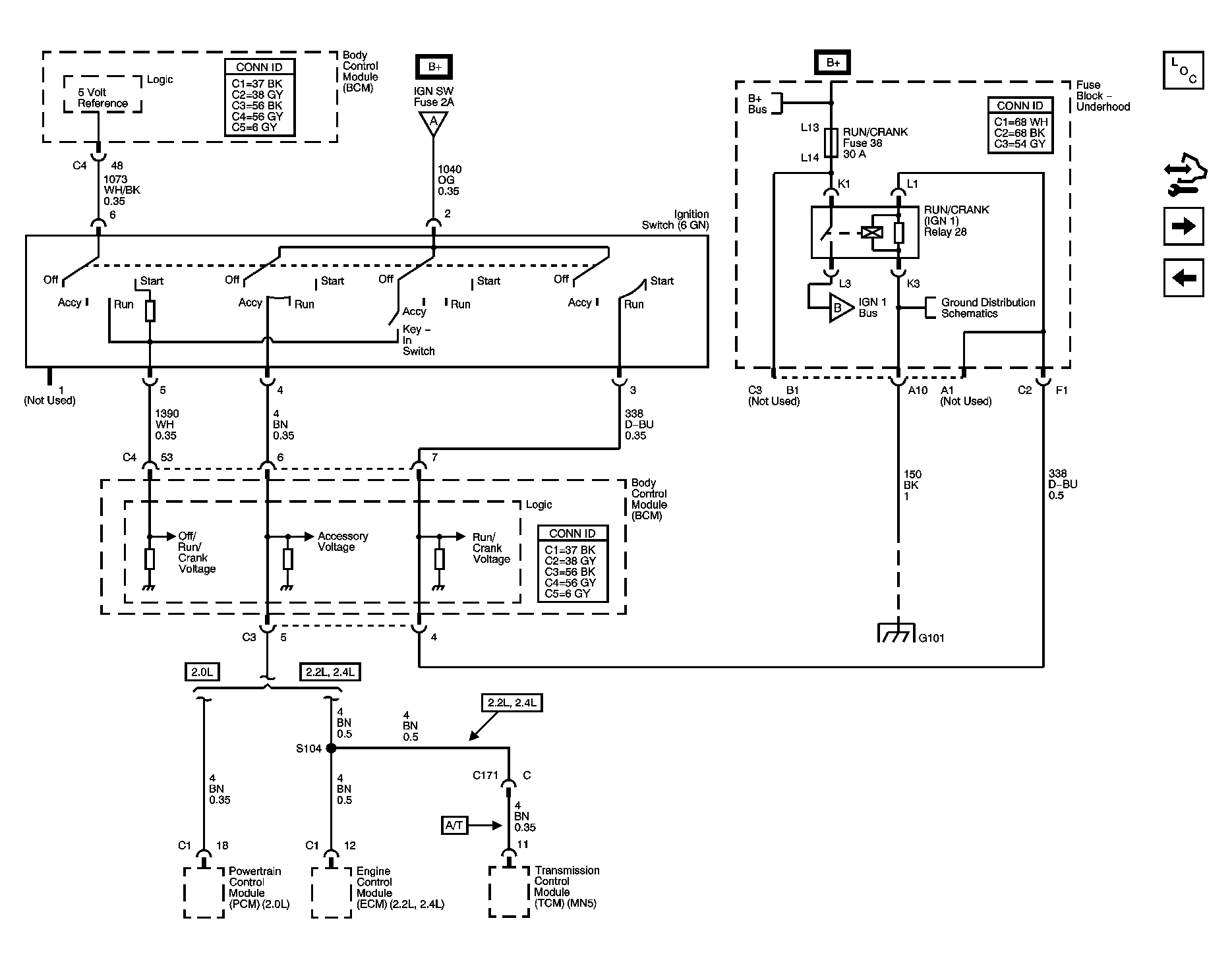

Fig 5: Ignition Switch, RUN/CRANK Fuse, RUN/Crank (IGN1) Relay

Courtesy of GENERAL MOTORS CORP.

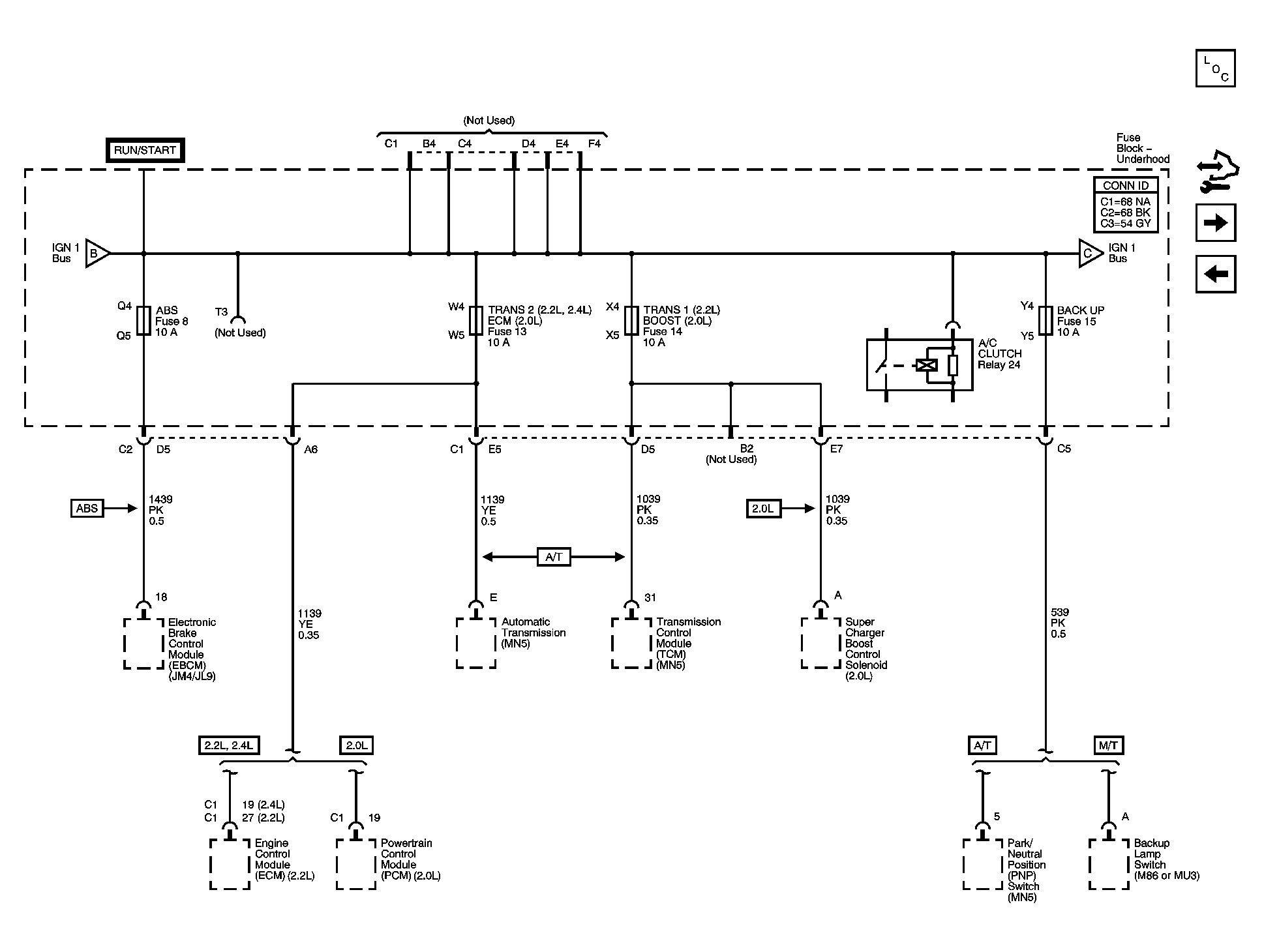

Fig 6: ABS (10A), BACK UP, BOOST, ECM, TRANS 1, and TRANS 2 Fuses

Courtesy of GENERAL MOTORS CORP.

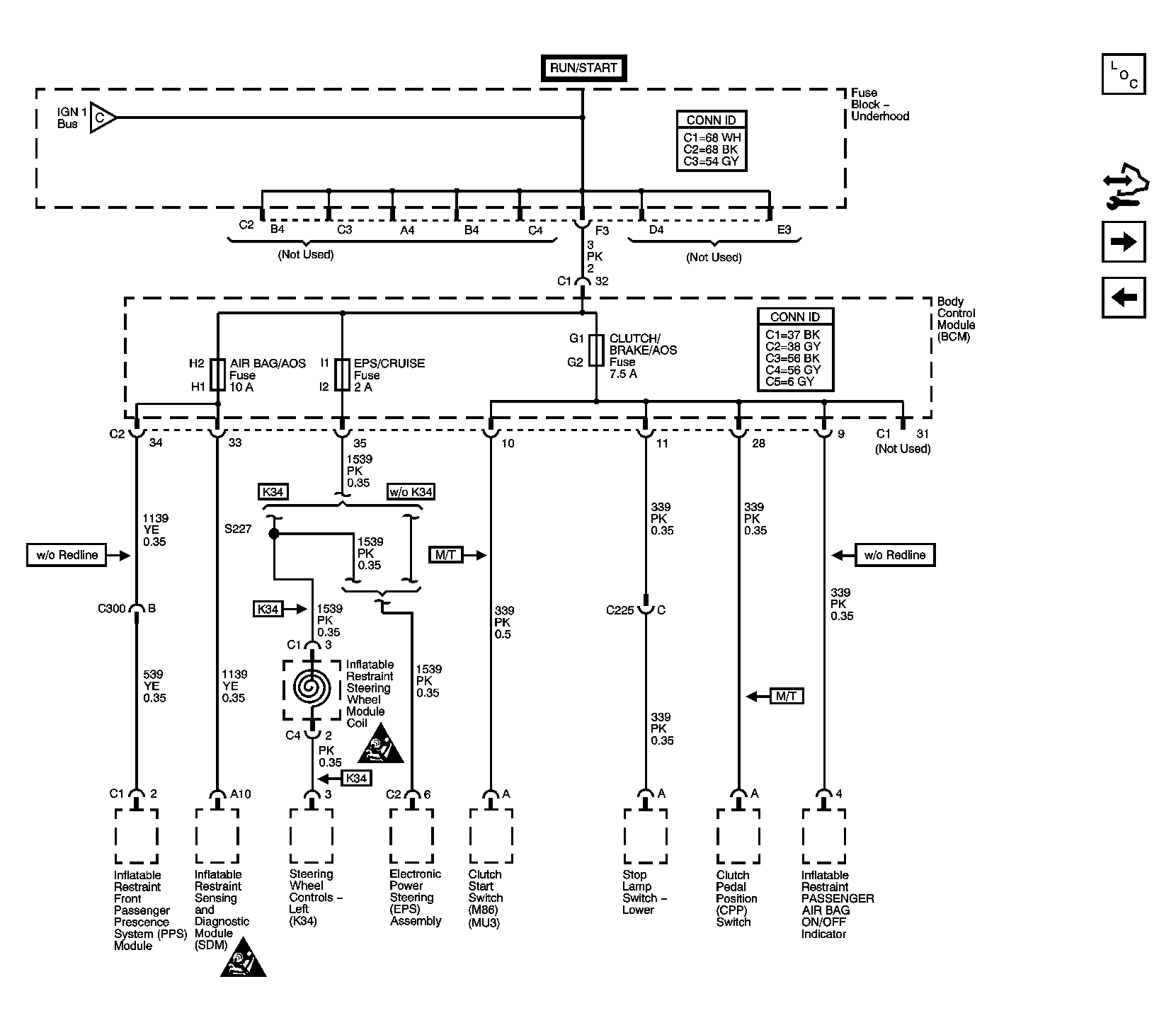

Fig 7: AIR BAG/AOS, CLUTCH/BRAKE/AOS, and EPS/CRUISE Fuses

Courtesy of GENERAL MOTORS CORP.

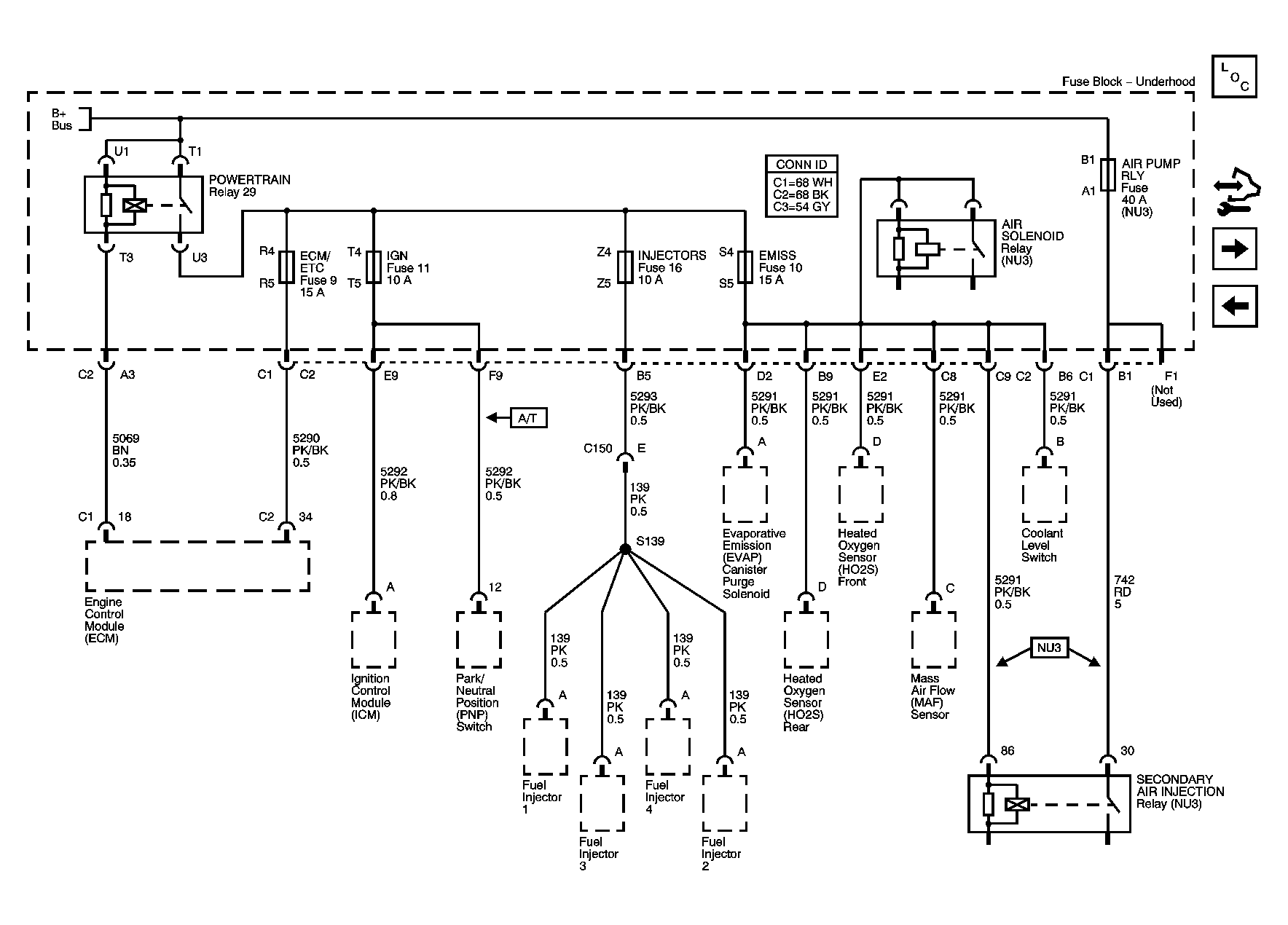

Fig 8: AIR PUMP RLY, ECM/ECT, EMISS, IGN and INJECTOR Fuse, AIR SOLENOID, POWERTRAIN Relays - 2.2L

Courtesy of GENERAL MOTORS CORP.

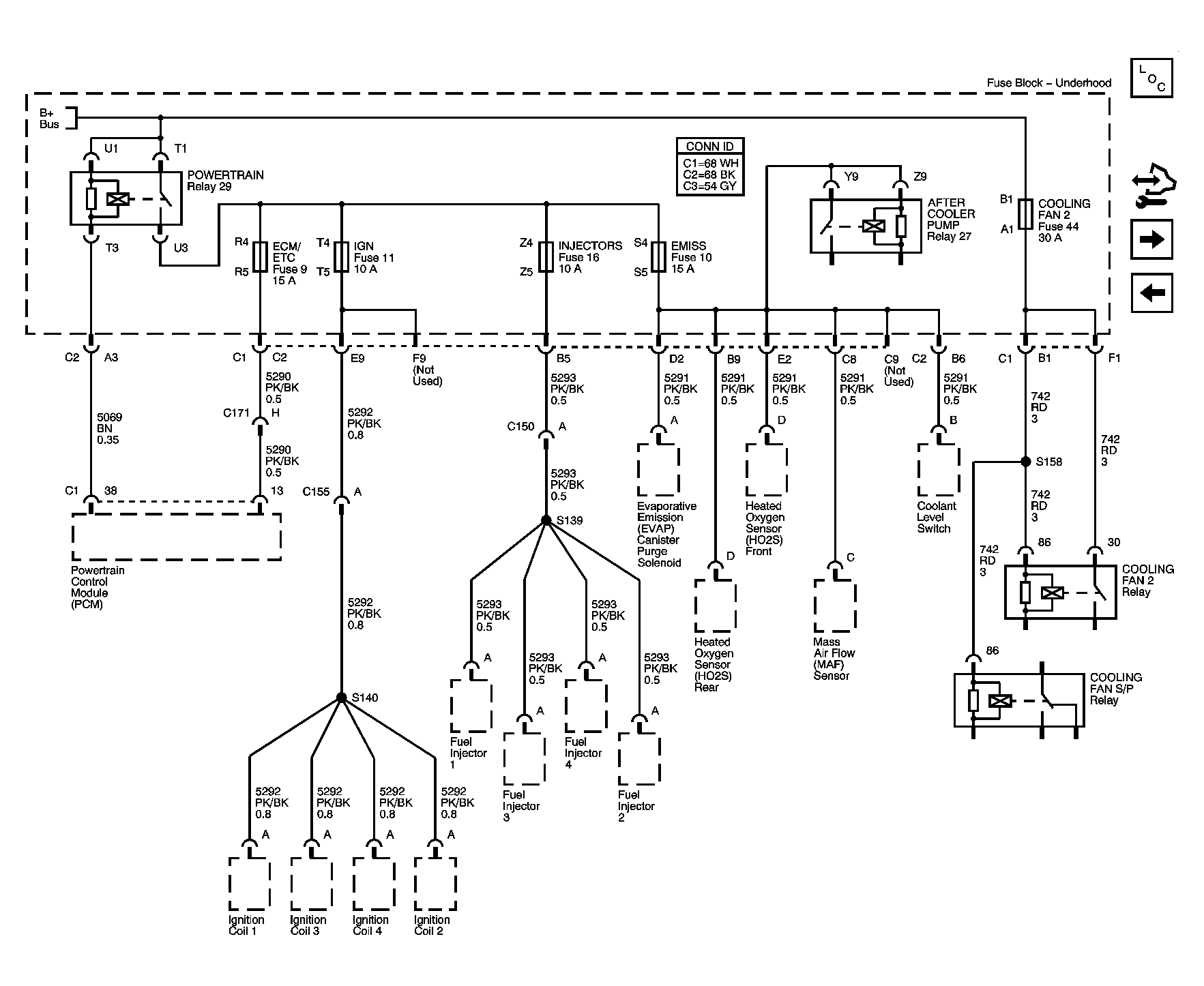

Fig 9: COOLING FAN, ECM/ETC, EMISS, INJECTORS, and IGN Fuses, AFTER COOLER PUMP and POWERTRAIN RELAYS - 2.0L

Courtesy of GENERAL MOTORS CORP.

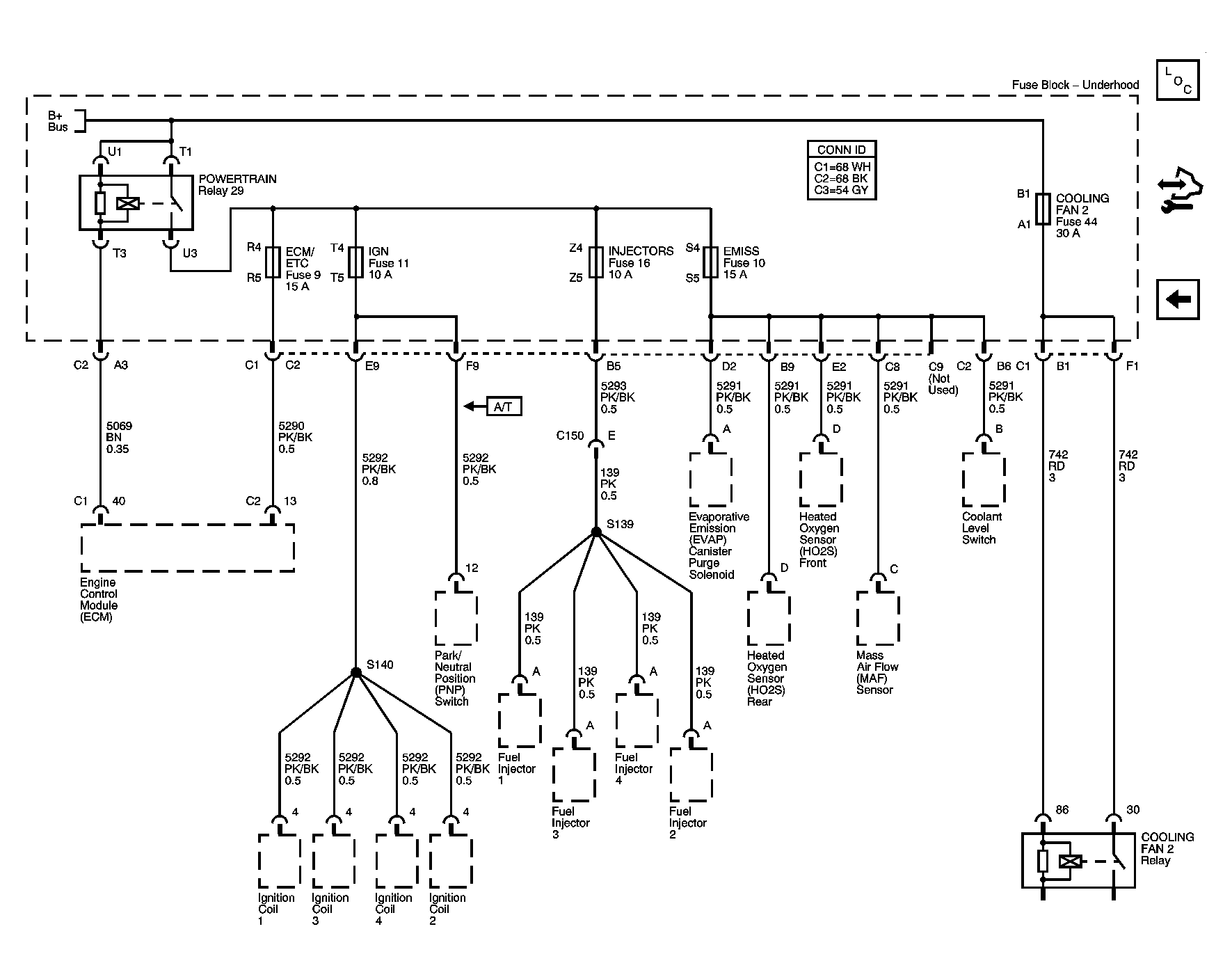

Fig 10: Cooling FAN2, ECM/ETC, EMISS, IGN and INJECTORS Fues, POWERTRAIN Relay - 2.4L

Courtesy of GENERAL MOTORS CORP.
