Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

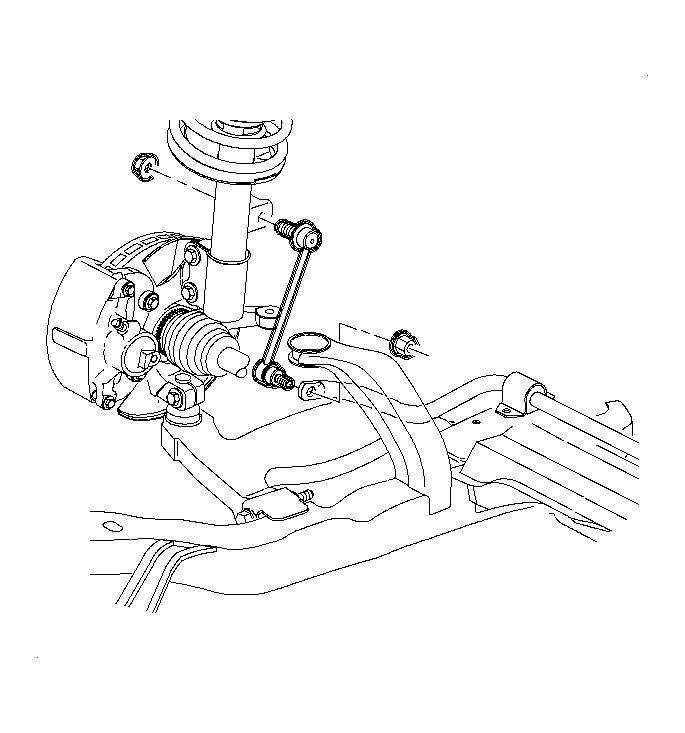

    2. Fig 1: Removing/Installing Stabilizer Shaft Link
    GM891976Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not allow the ball stud to rotate when installing the ball stud nut.
  2. Install the stabilizer link to stabilizer shaft ball stud nut. Hand tighten only.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the stabilizer link to strut assembly ball stud nut.

    Tighten:  Tighten both Ball stud nuts to 65 N.m (48 lb ft).

  4. Remove the stabilizer link from the vehicle.
  5. Lower the vehicle.
