Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

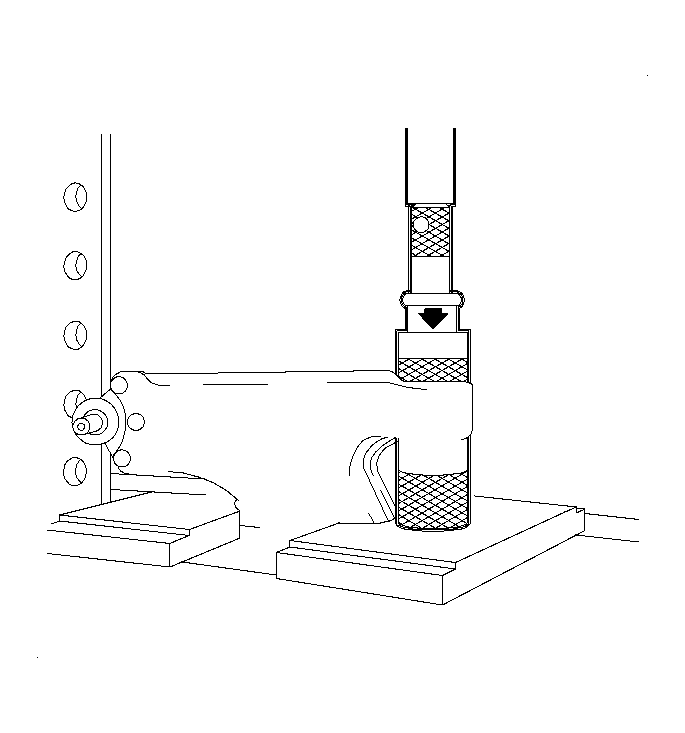

    Fig 1: Installing NEW Front Lower Control Arm Bushing
    GM891960Courtesy of GENERAL MOTORS CORP.
  1. Using the KM-508-A  , assemble the KM-508-1, KM-508-2 and KM-508-3 and press in the new front control arm bushing. See Special Tools .
  2. Install the lower control arm. Refer to Lower Control Arm Replacement .
