Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Mode Cover & Components

Courtesy of GENERAL MOTORS CORP.

Install the mode actuator (2).

NOTE: Refer to Fastener Notice .

Install the mode actuator bolts/screws (1).
Tighten: Tighten the screws to 1.2 N.m (11 lb in).

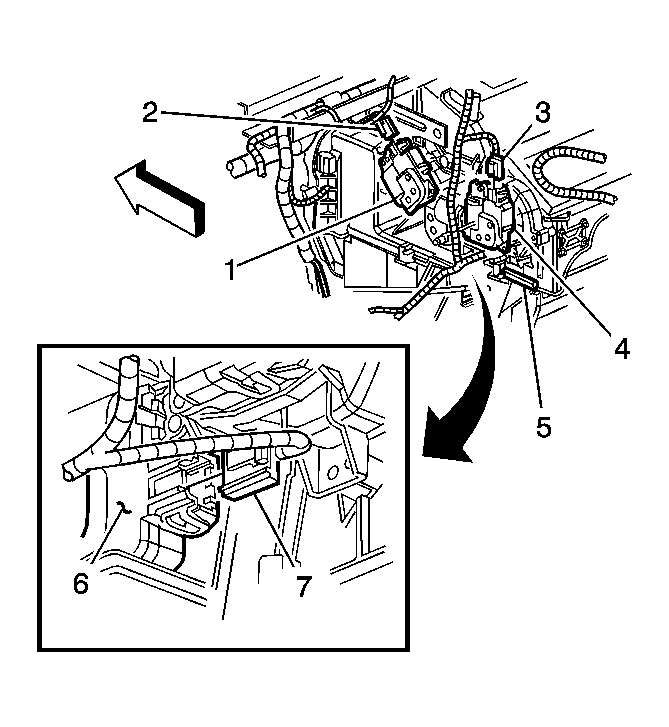

Fig 2: Identifying Air Temperature Actuator Components (Single Zone)

Courtesy of GENERAL MOTORS CORP.

Connect the mode actuator electrical connector (3).
Install the driver side knee bolster.
Re-calibrate the actuators. Refer to Actuators Recalibration .
