Body Control System Schematics

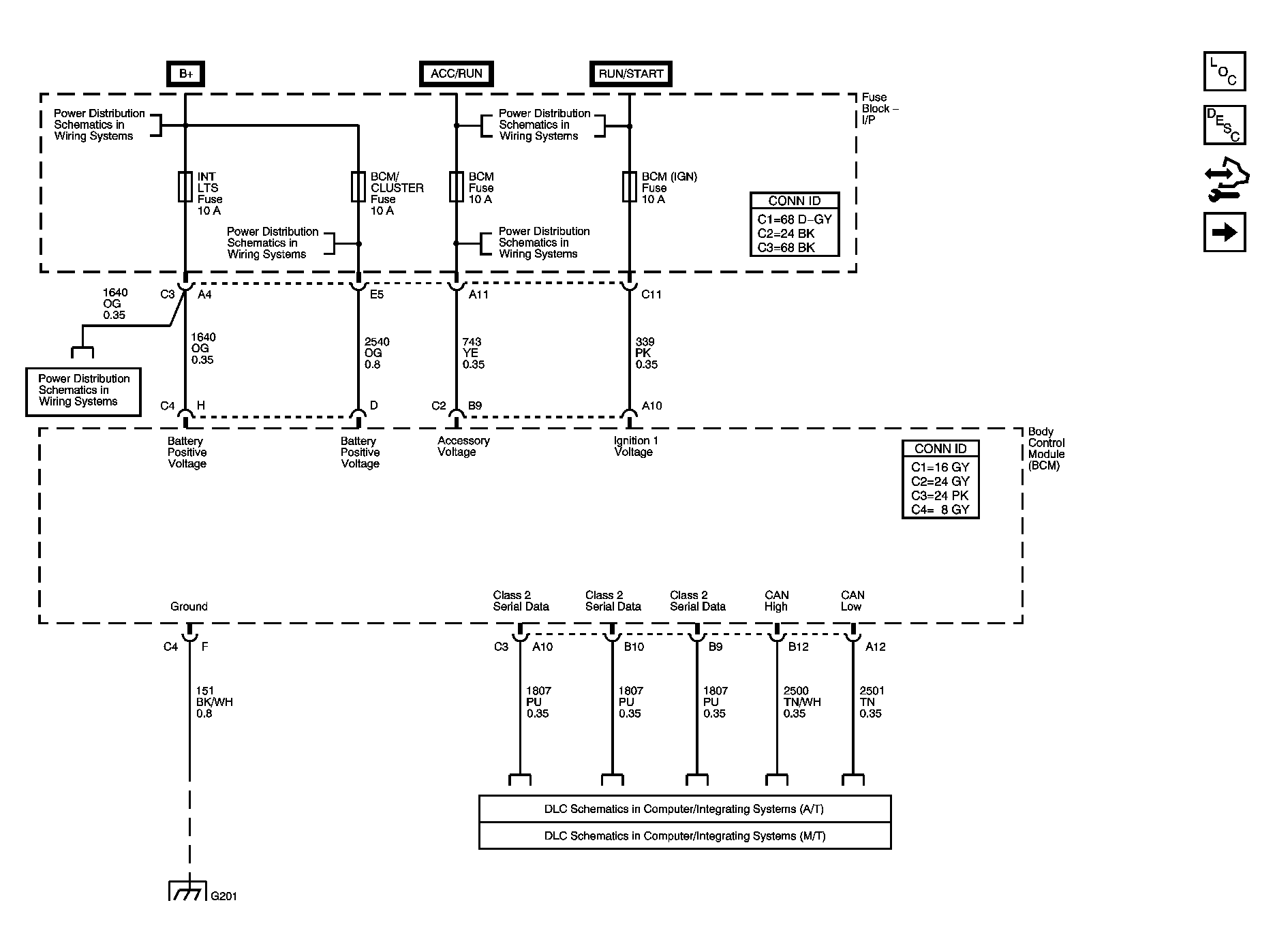

Fig 1: Power, Ground, and Communication
GM1501765Courtesy of GENERAL MOTORS CORP.

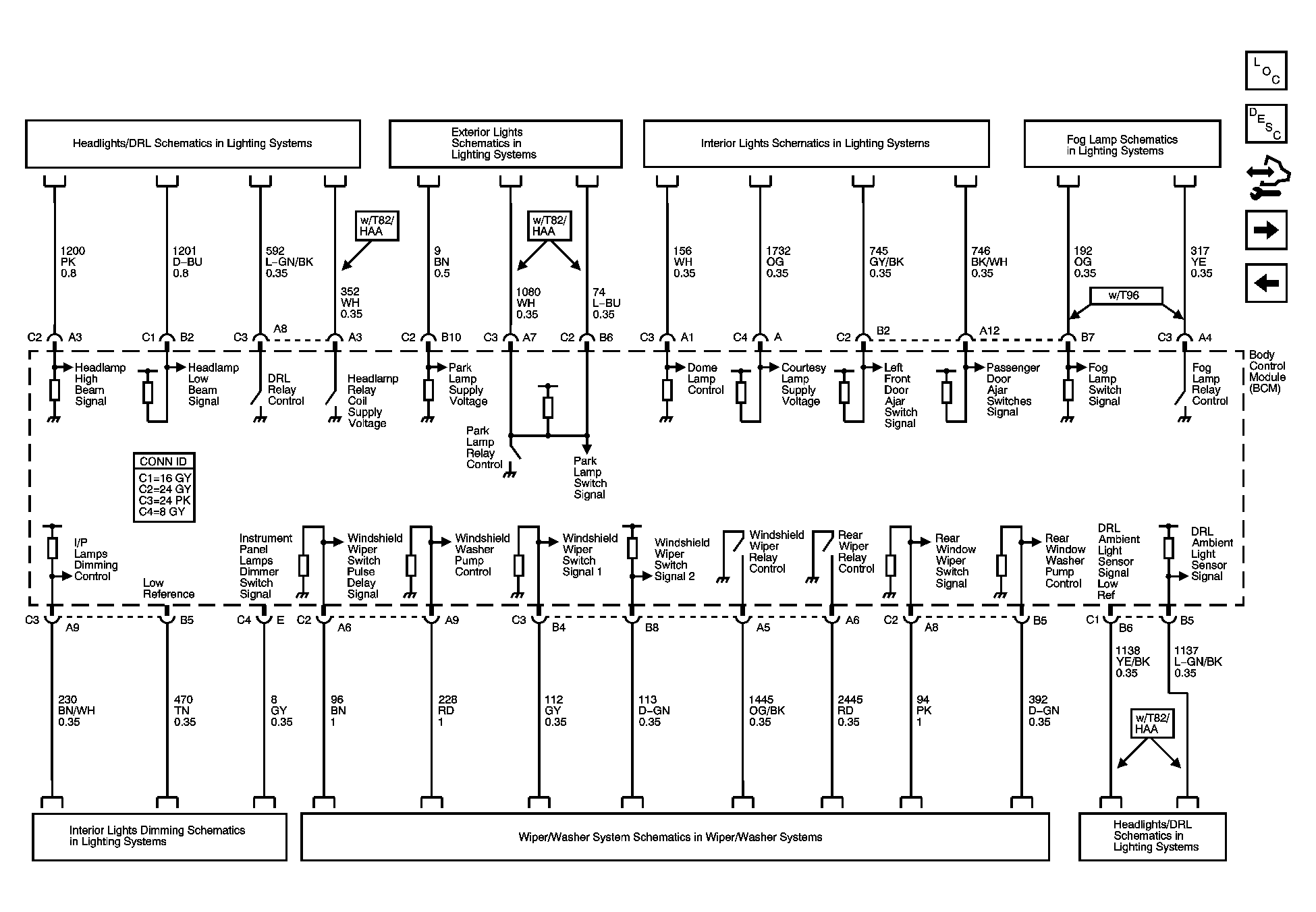

Fig 2: Lighting and Wiper System References
GM1501766Courtesy of GENERAL MOTORS CORP.

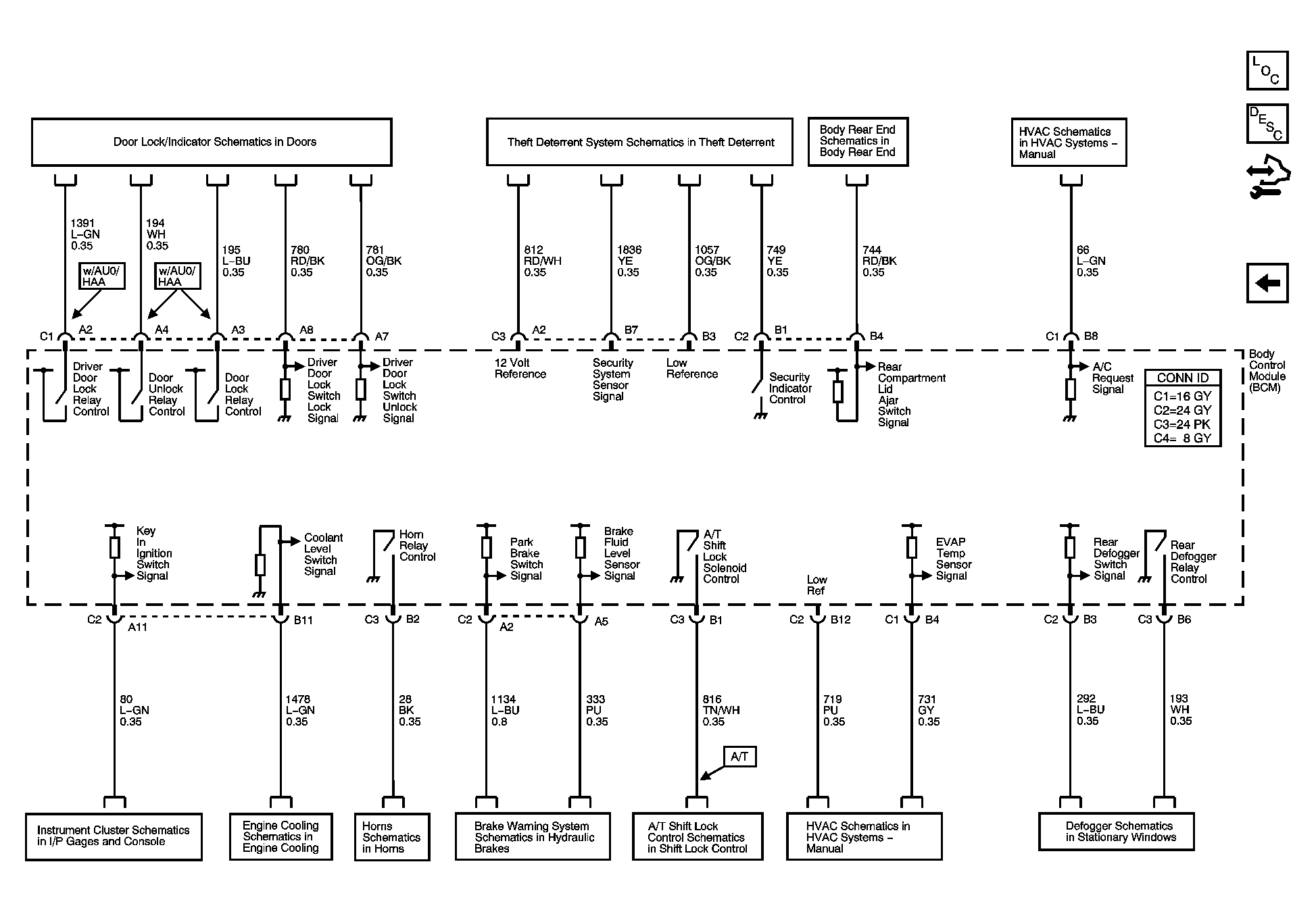

Fig 3: Controlled/Monitored Subsystem References
GM1501767Courtesy of GENERAL MOTORS CORP.
