Removal Procedure

  1. Loosen the clamp at the air cleaner assembly.

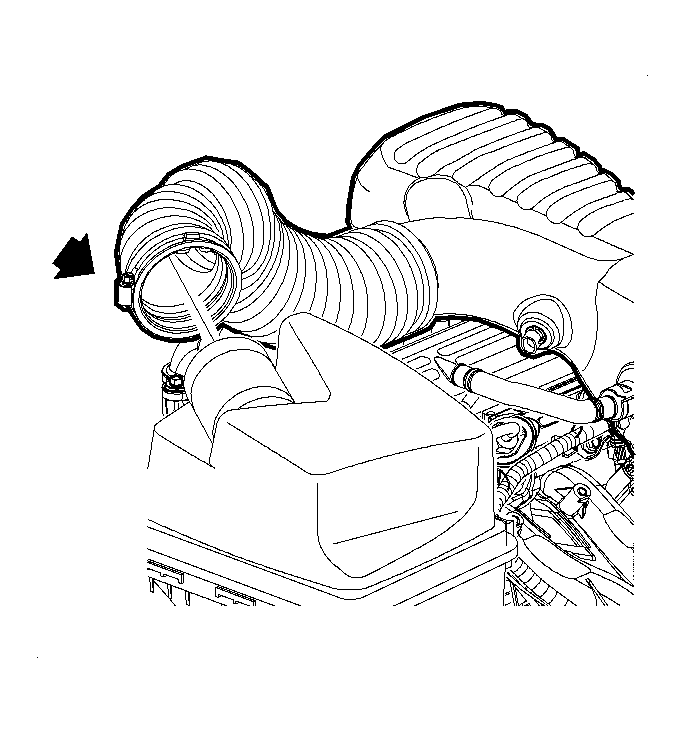

    Fig 1: Locating Air Cleaner Assembly
    GM956328Courtesy of GENERAL MOTORS CORP.
  2. Unclamp the air cleaner lid
  3. Remove the air filter assembly.
