Hood Latch Support Replacement

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

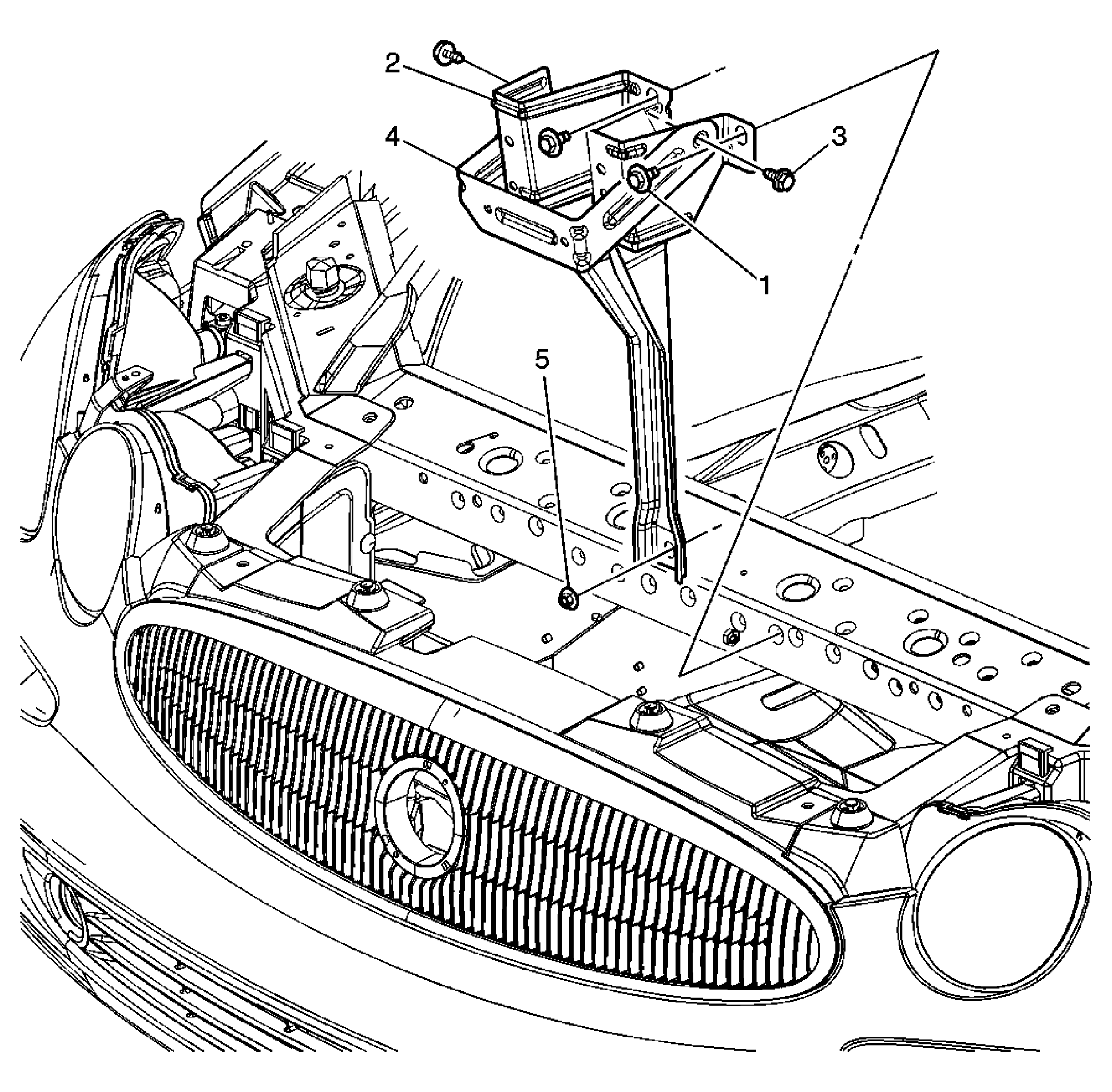

Fig 1: View Of Hood Latch Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the radiator support sight shield. Refer to Radiator Support Sight Shield Replacement . Remove the hood latch. Refer to Hood Latch Replacement .
1	Bolt, Hood Latch Support Secondary (Qty: 2) Tighten: 10 N.m (89 lb in)
2	Bracket, Hood Latch Secondary Support
3	Bolt, Hood Latch Support (Qty: 2) Tighten: 10 N.m (89 lb in)
4	Nut, Hood Latch Support Tighten: 10 N.m (89 lb in)
5	Bracket, Hood Latch Support
