Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
    Fig 1: View Of Battery Ground (Negative) Cable And Bolt
    GM368800Courtesy of GENERAL MOTORS CORP.
  2. Remove the battery tray. Refer to Battery Tray Replacement (L61)  or Battery Tray Replacement (L66) .
  3. Remove the negative battery cable nut from the right frame rail.
  4. Disconnect the negative battery cable from the transmission bracket (1).

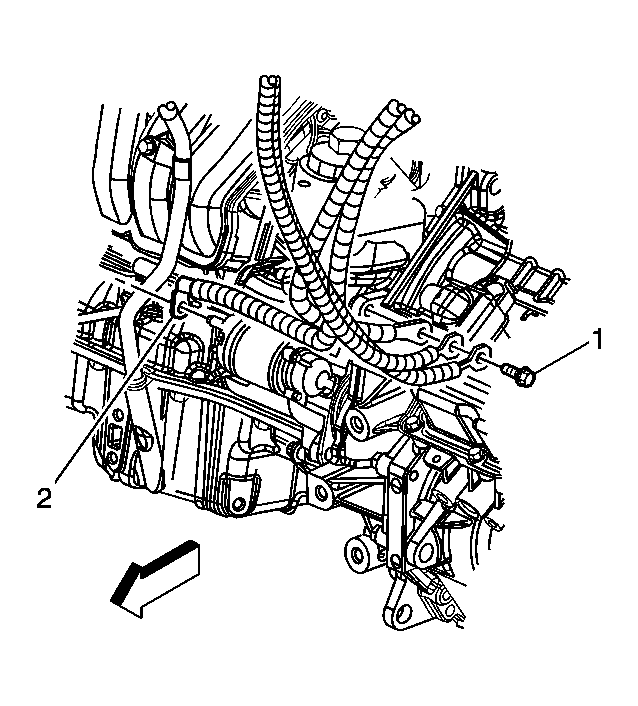

    Fig 2: View Of Negative Battery Cable To The Transmission Bracket
    GM1336944Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the negative battery cable from the retainers.
  6. Remove the negative battery cable.
