Dome Lamp Replacement
WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

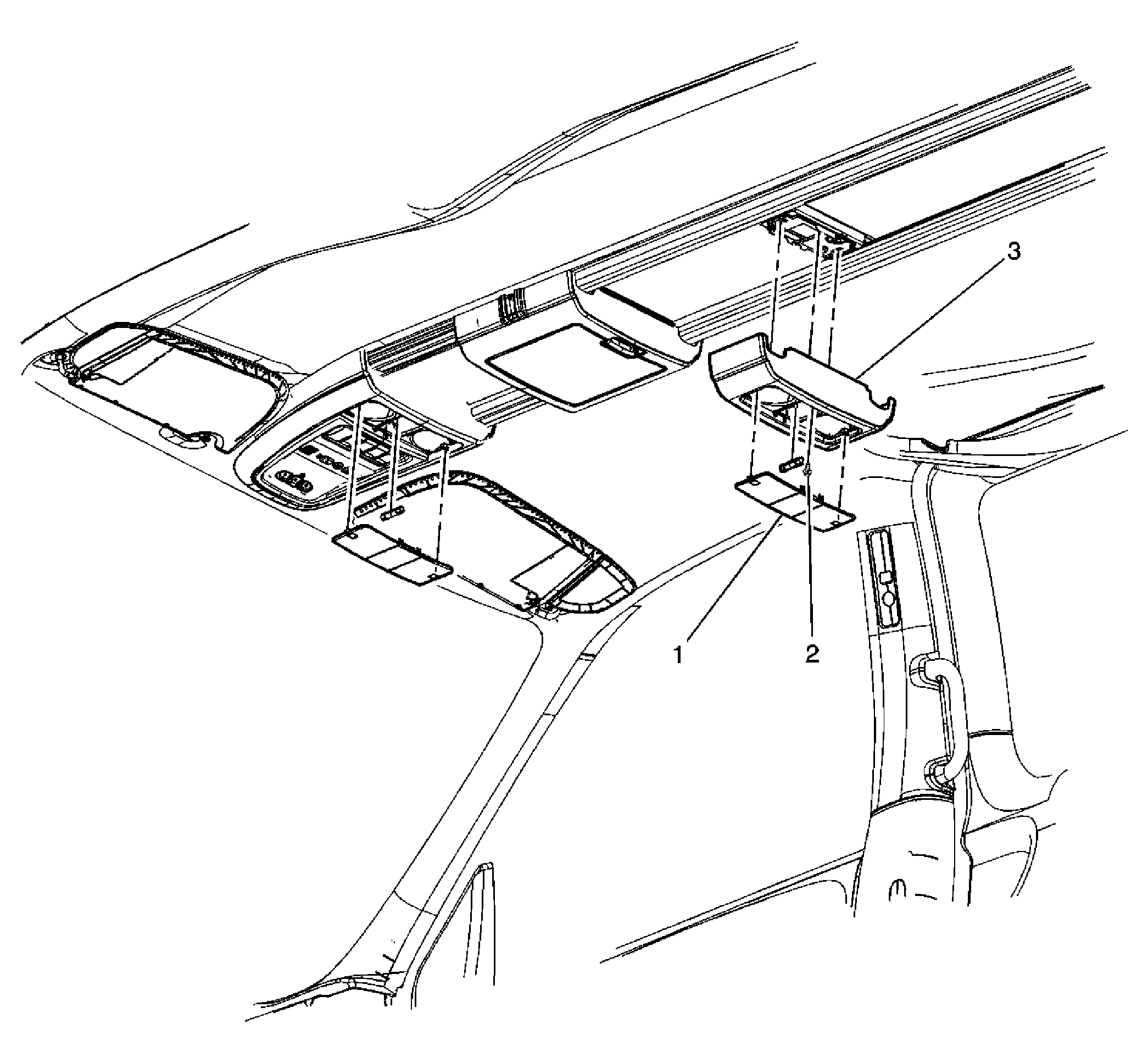

Dome Lamp Replacement
| Callout | Component Name |
|---|---|
| 1 | Lens, Dome Lamp |
| 2 | Screw, Dome Lamp (Qty: 1)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 3 | Lamp Assembly, Dome |
