Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

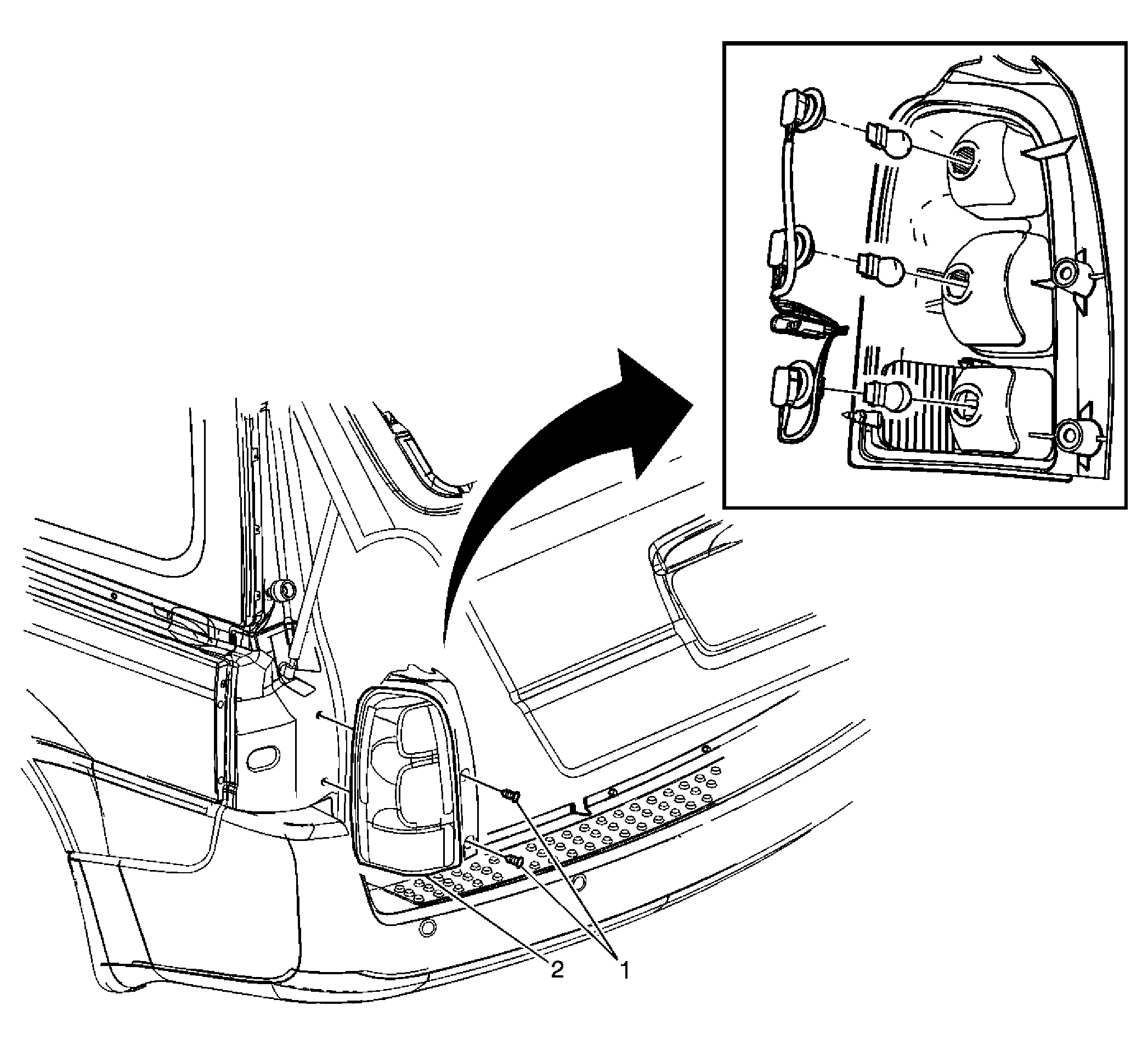

Fig 1: Backup Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open the liftgate in order to access the tail lamp screws. Remove either the LR or RR tail lamp assembly. Refer to Tail Lamp Replacement .
1	Tail Lamp Screws (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: Tighten the screws to 6 N.m (53 lb in).
2	Tail Lamp Assembly Tip: Remove the bottom socket and turn the bulb a quarter turn, counter-clockwise in order to remove.

Callout

Component Name

Preliminary Procedure

Open the liftgate in order to access the tail lamp screws.
Remove either the LR or RR tail lamp assembly. Refer to Tail Lamp Replacement .

Tail Lamp Screws (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: Tighten the screws to 6 N.m (53 lb in).

Tail Lamp Assembly
Tip: Remove the bottom socket and turn the bulb a quarter turn, counter-clockwise in order to remove.
