Video System Schematics

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

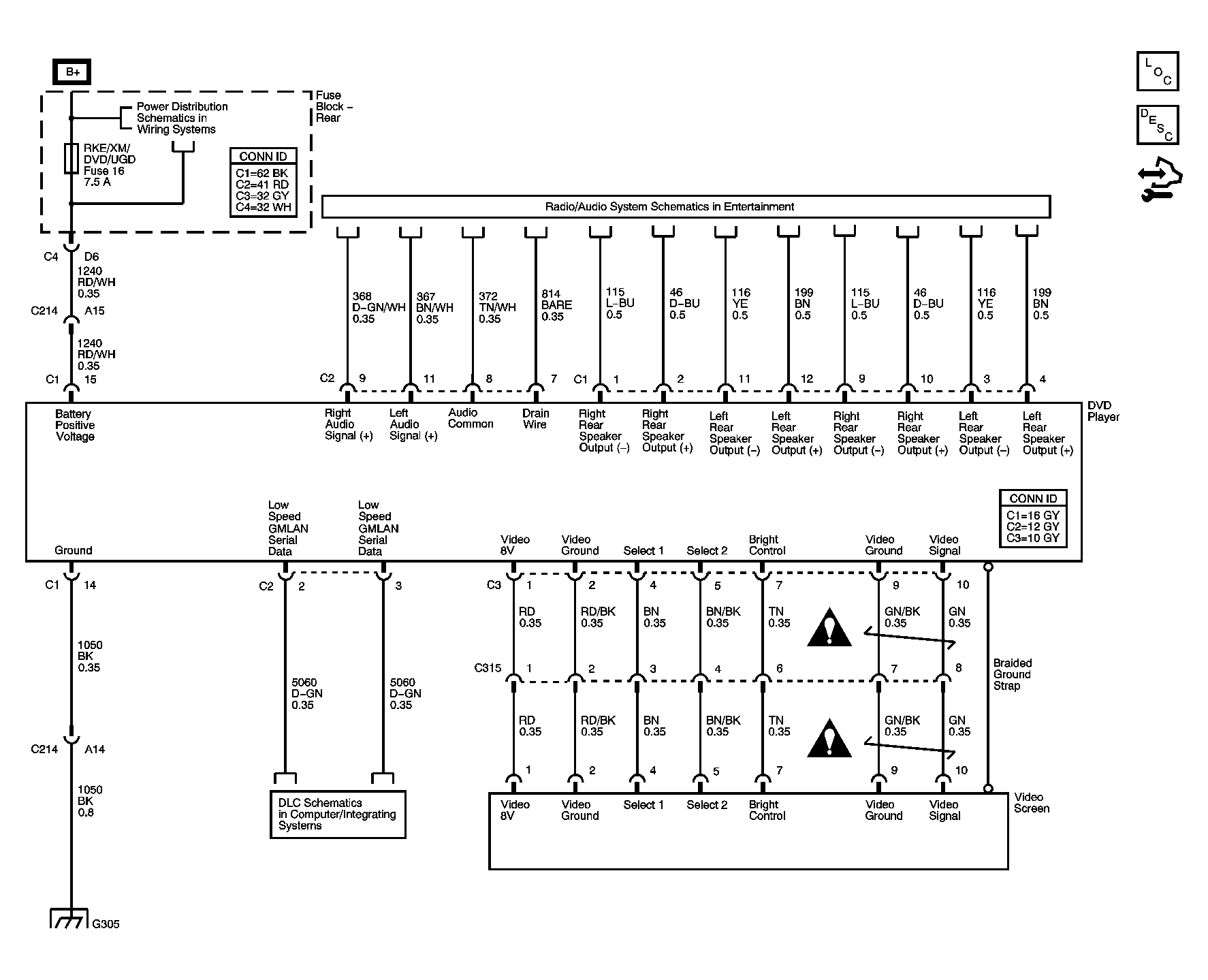

Fig 1: Schematic - Video System
GM1501111Courtesy of GENERAL MOTORS CORP.
