Removal Procedure

  1. Remove the generator. Refer to Generator Replacement .
  2. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement in Engine Mechanical-3.5L.

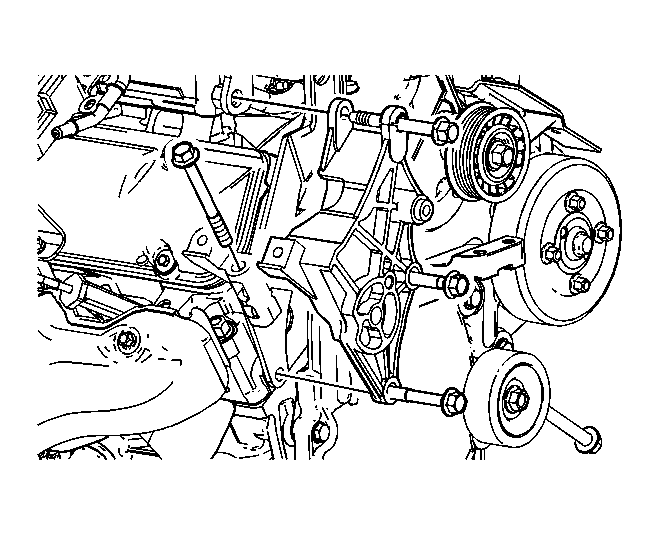

    3. Fig 1: Removing Generator Bracket Bolts
    GM1239046Courtesy of GENERAL MOTORS CORP.
  3. Remove the generator bracket bolts.
  4. Remove the generator bracket.
