Armrest Replacement - Front Seat
Armrest Replacement - Front Seat

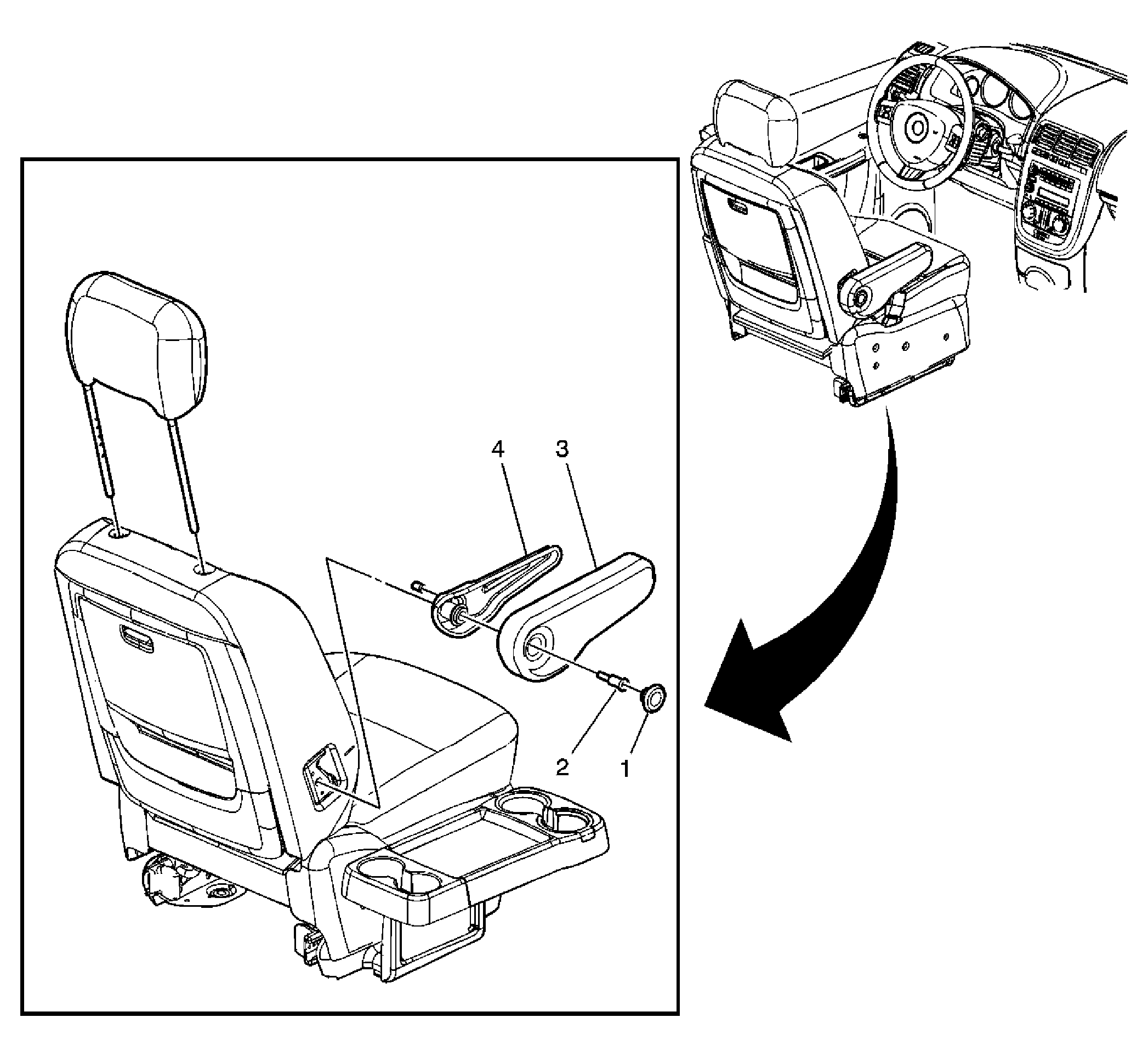

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Cap, Armrest |
| 2 | Bolt, Armrest Tighten: 9 N.m (80 lb in) |
| 3 | Cover, Armrest |
| 4 | Armrest |
