Theft Deterrent System Schematics

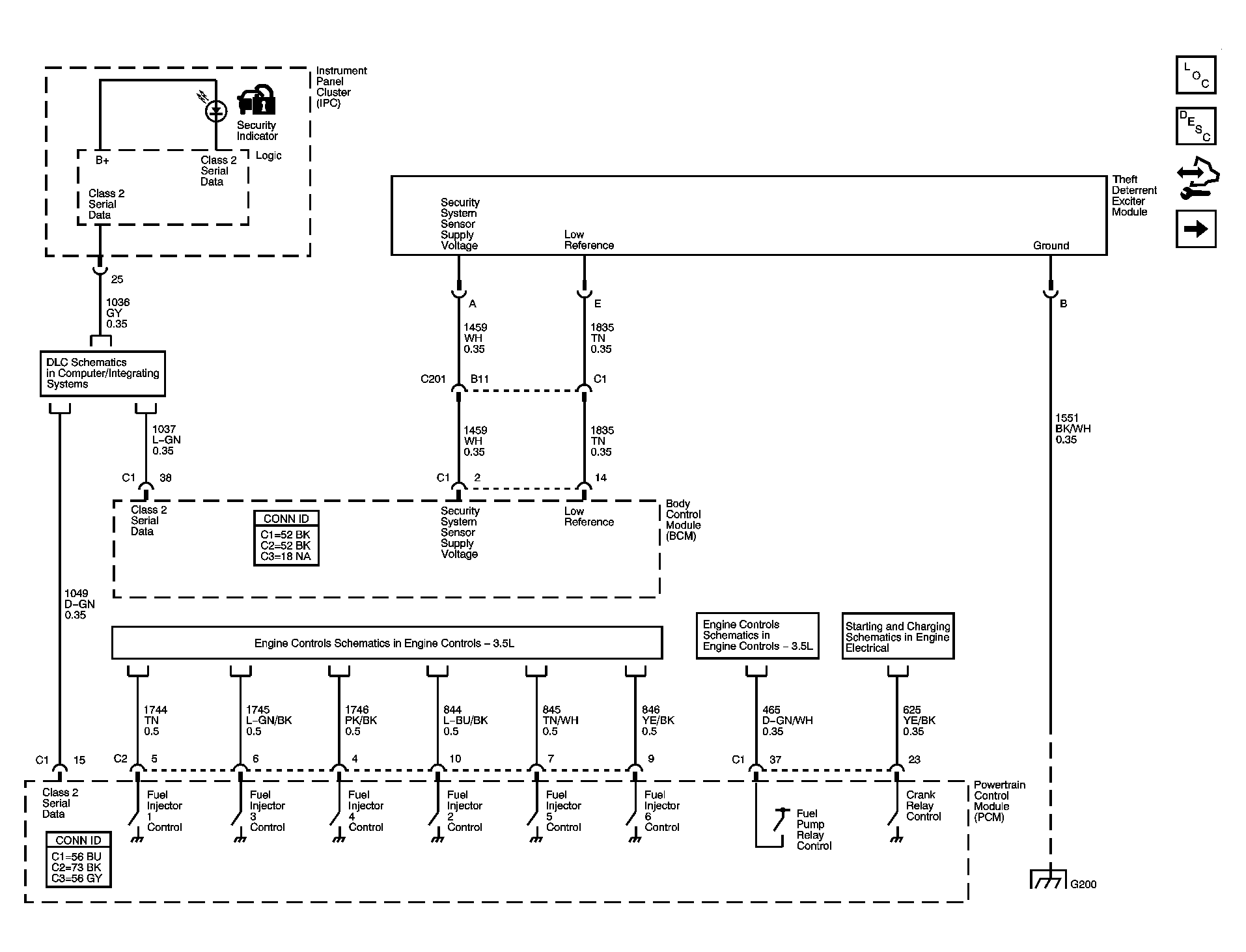

Fig 1: Vehicle Theft Deterrent Schematic
GM1500607Courtesy of GENERAL MOTORS CORP.

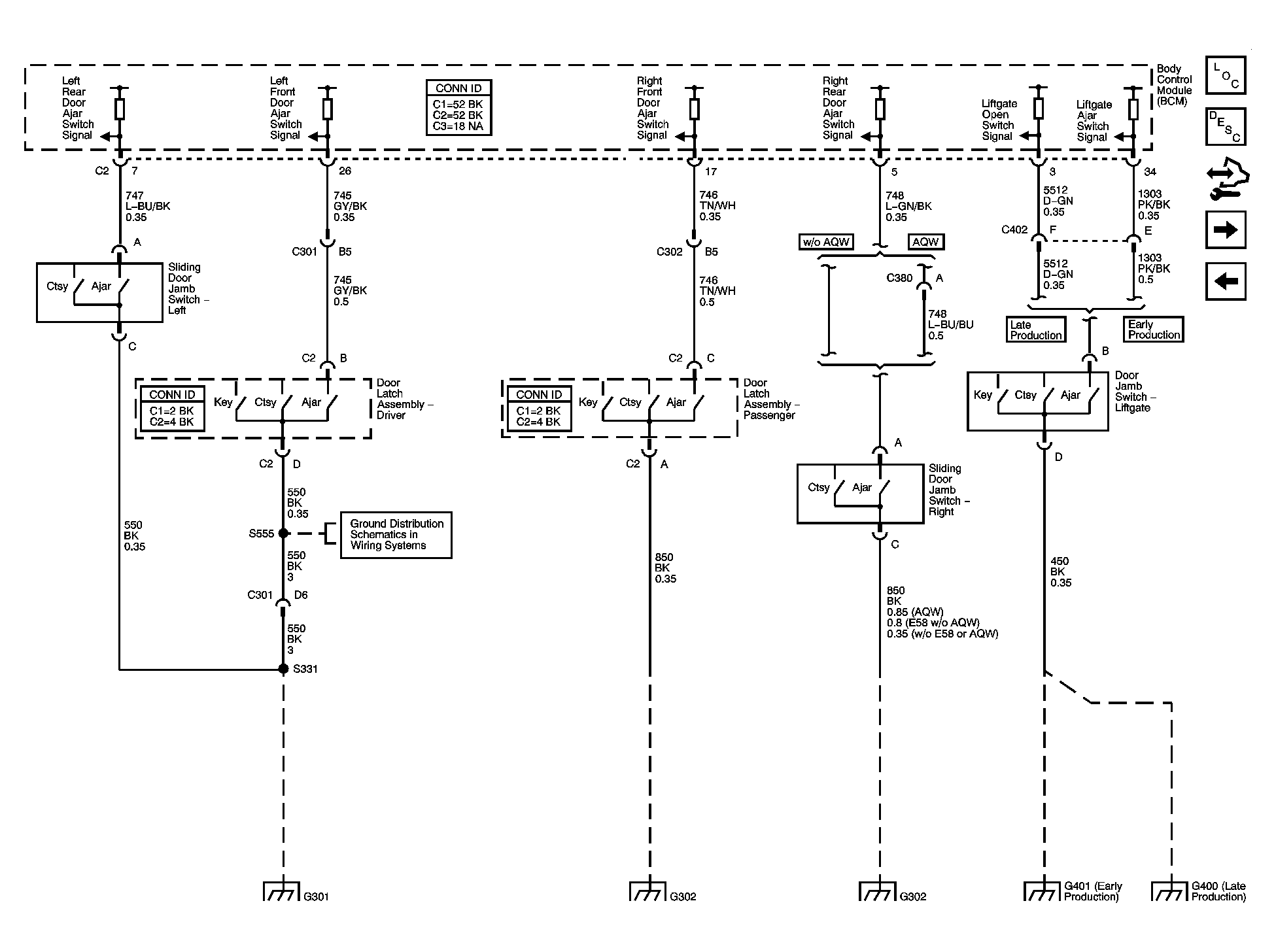

Fig 2: Content Theft Deterrent - Ajar Switches Schematic
GM1500629Courtesy of GENERAL MOTORS CORP.

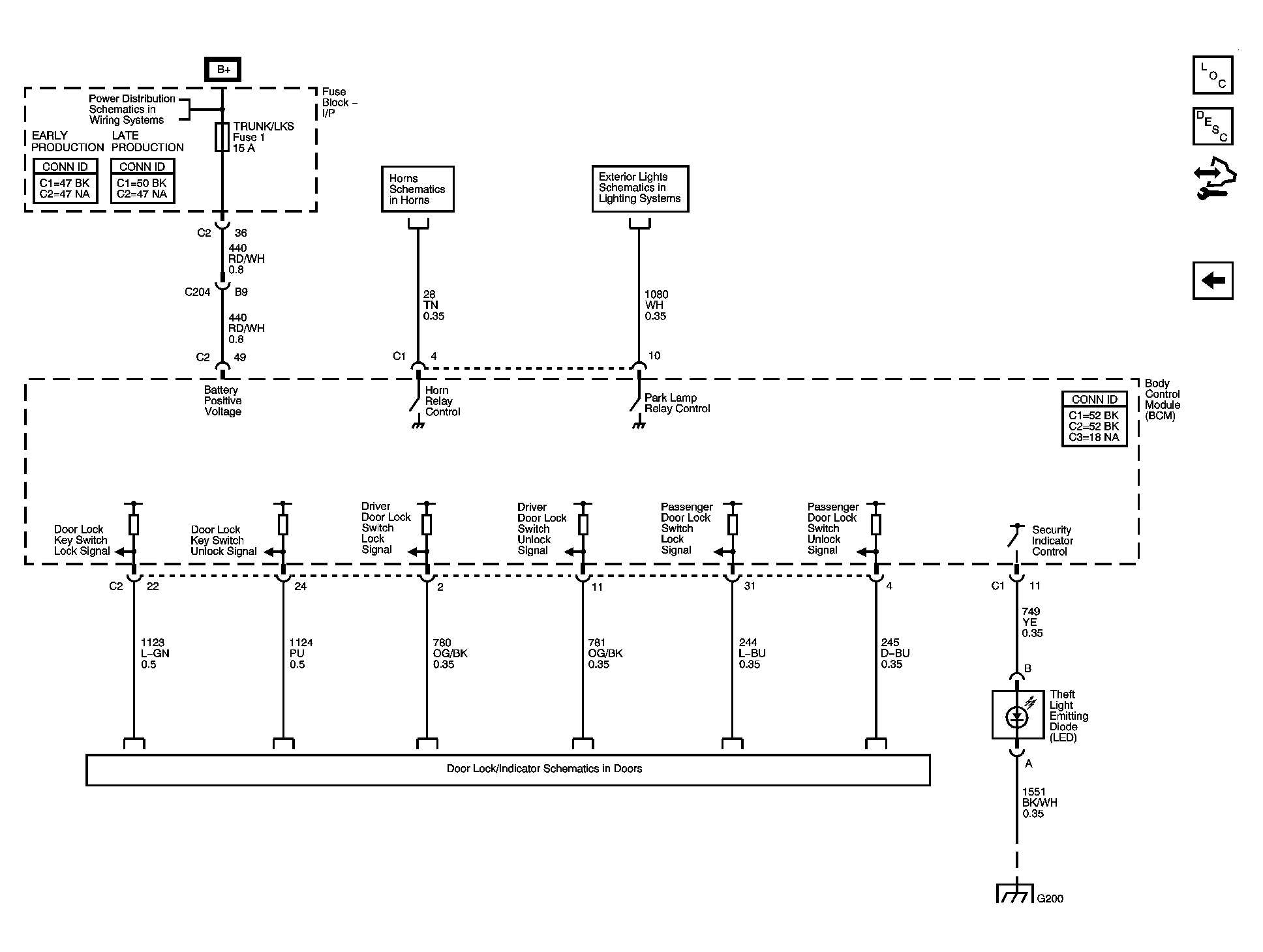

Fig 3: Content Theft Deterrent Schematic - Arm, Disarm & Warning
GM1500633Courtesy of GENERAL MOTORS CORP.
