Installation Procedure

WARNING: This page is about a different car, the 2005 Pontiac Aztek and 2005 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

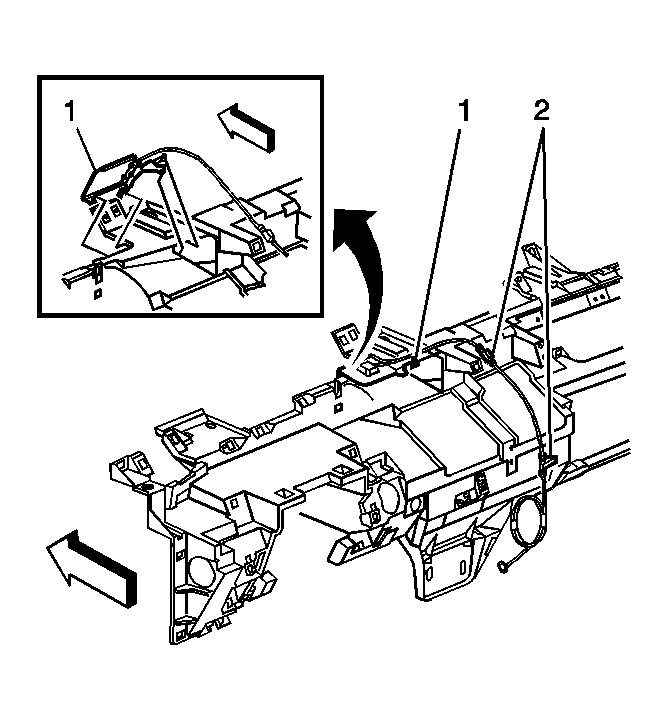

Fig 1: Locating GPS Antenna Assembly Bracket

Courtesy of GENERAL MOTORS CORP.

Tie the string to the new antenna.
Route the GPS antenna cable as noted during disassembly.
Install the clips (2) in order to secure the cable to the IP.
Install the GPS antenna bracket (1).

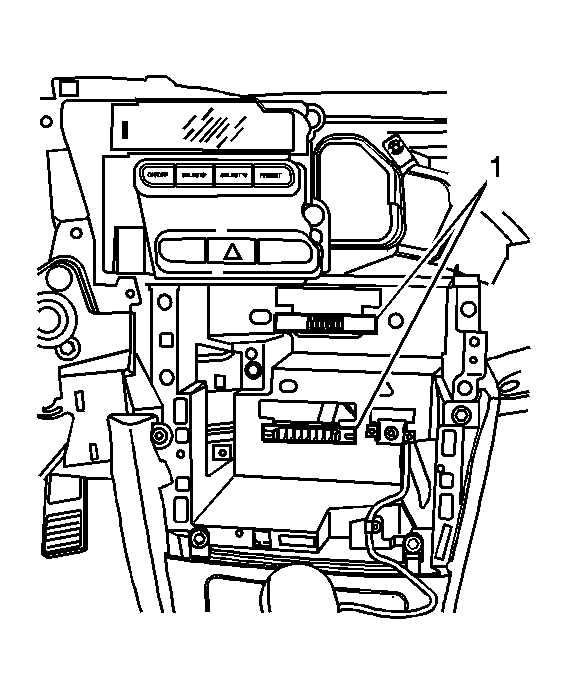

Fig 2: View Of GPS Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Install the electrical connectors to the IP retainer.
Install the HVAC module. Refer to HVAC Control Module Replacement in HVAC Systems - Automatic.
Install the IP upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper (Aztek) or Trim Pad Replacement - Instrument Panel (I/P) Upper (Rendezvous) in Instrument Panel, Gages and Console.
Install the radio. Refer to Radio Replacement in Entertainment.
