Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

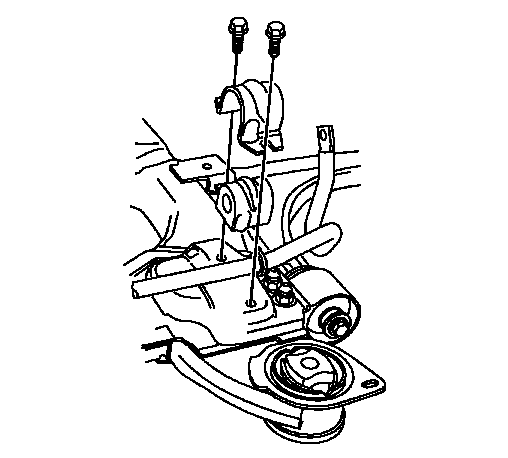

    Fig 1: Removing Stabilizer Shaft Mounting Clamp Bolts And Clamps From Both Sides Of Vehicle
    GM1229965Courtesy of GENERAL MOTORS CORP.
  1. Install the stabilizer bushings on the stabilizer shaft with the cut line facing rearward.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the stabilizer shaft clamps and bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the front wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  4. Lower the vehicle.
