Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

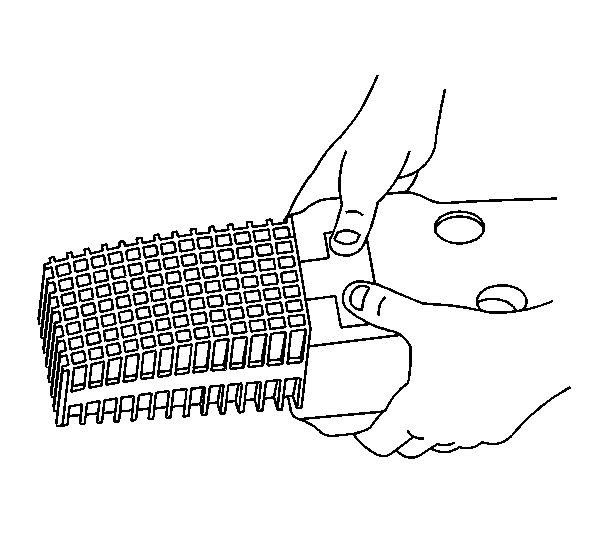

Fig 1: Installing Energy Absorber Extensions To Absorber

Courtesy of GENERAL MOTORS CORP.

Install the energy absorber extensions to the absorber. Press into place until fully seated.

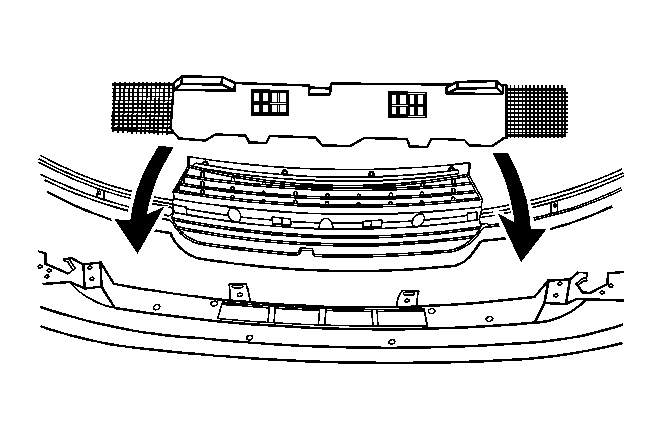

Fig 2: Installing Energy Absorber In Front Bumper Fascia

Courtesy of GENERAL MOTORS CORP.

Position the energy absorber to the front bumper fascia.

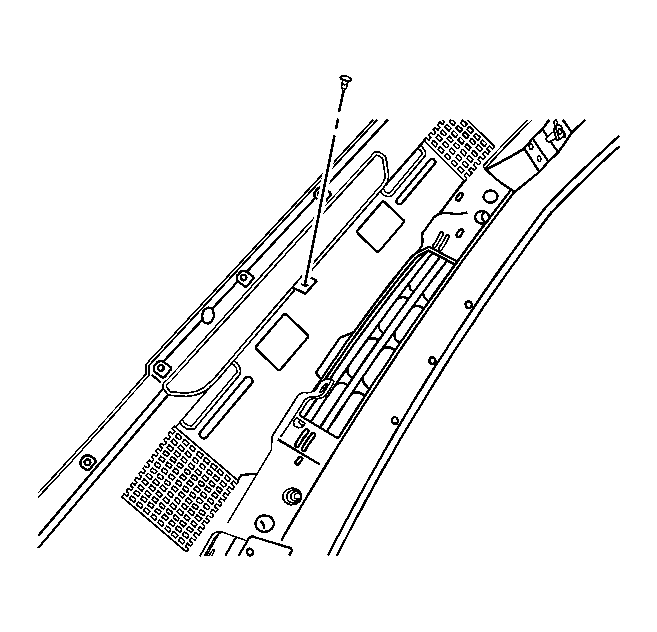

Fig 3: Installing Lower Screw Retainers In Energy Absorber

Courtesy of GENERAL MOTORS CORP.

Install the lower screw retainers to the energy absorber. Hand tighten only.

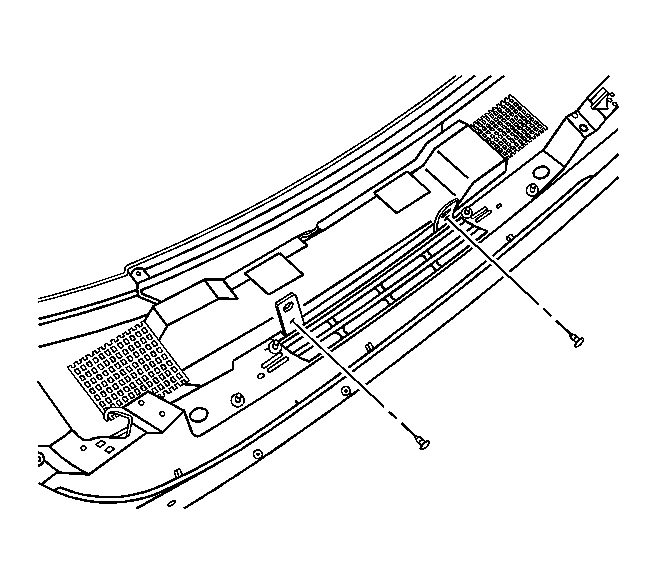

Fig 4: Installing Upper Screw Retainer In Energy Absorber

Courtesy of GENERAL MOTORS CORP.

Install the upper screw retainer to the energy absorber. Hand tighten only.
Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
