Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

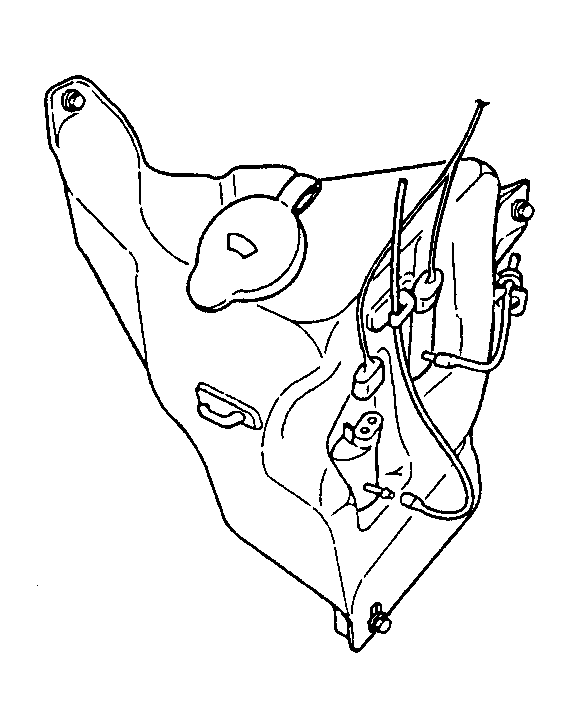

    Fig 1: View Of Washer Pump Components
    GM512032Courtesy of GENERAL MOTORS CORP.
  1. Position the front washer hose to the vehicle.
  2. Install the front washer hose to the washer pump.
  3. Secure the front washer hose to the washer solvent container.
    4. Fig 2: Locating Windshield Washer Hoses
    GM1480124Courtesy of GENERAL MOTORS CORP.
  4. Install the front washer hose grommet into the grille panel pinch weld.
  5. Connect the front washer hose to the air inlet cowl panel retainers (2).
  6. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement (Buick)  or Air Inlet Grille Panel Replacement (Chevrolet)  or Air Inlet Grille Panel Replacement (Pontiac) .
