Engine Controls Schematics

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

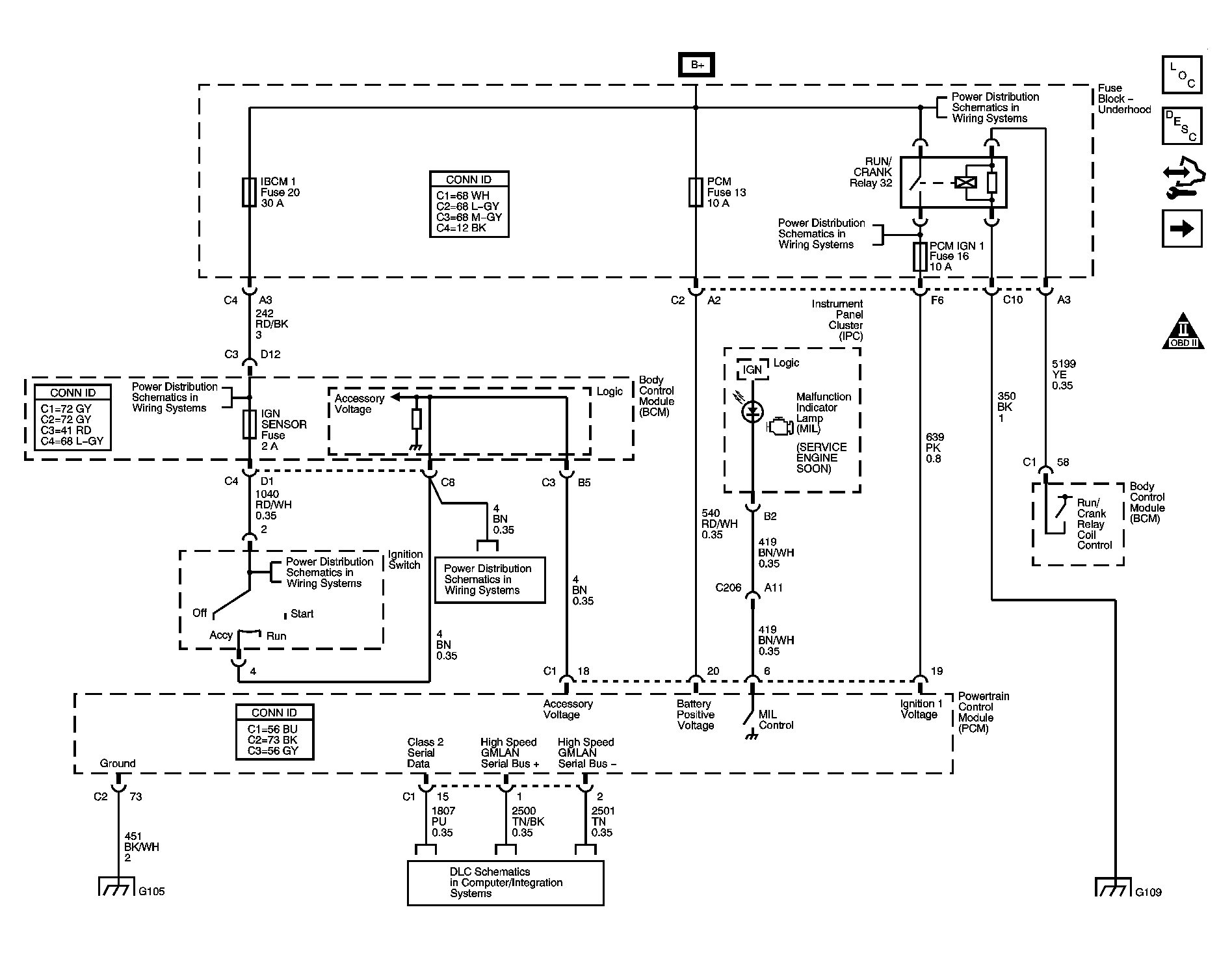

Fig 1: Power, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

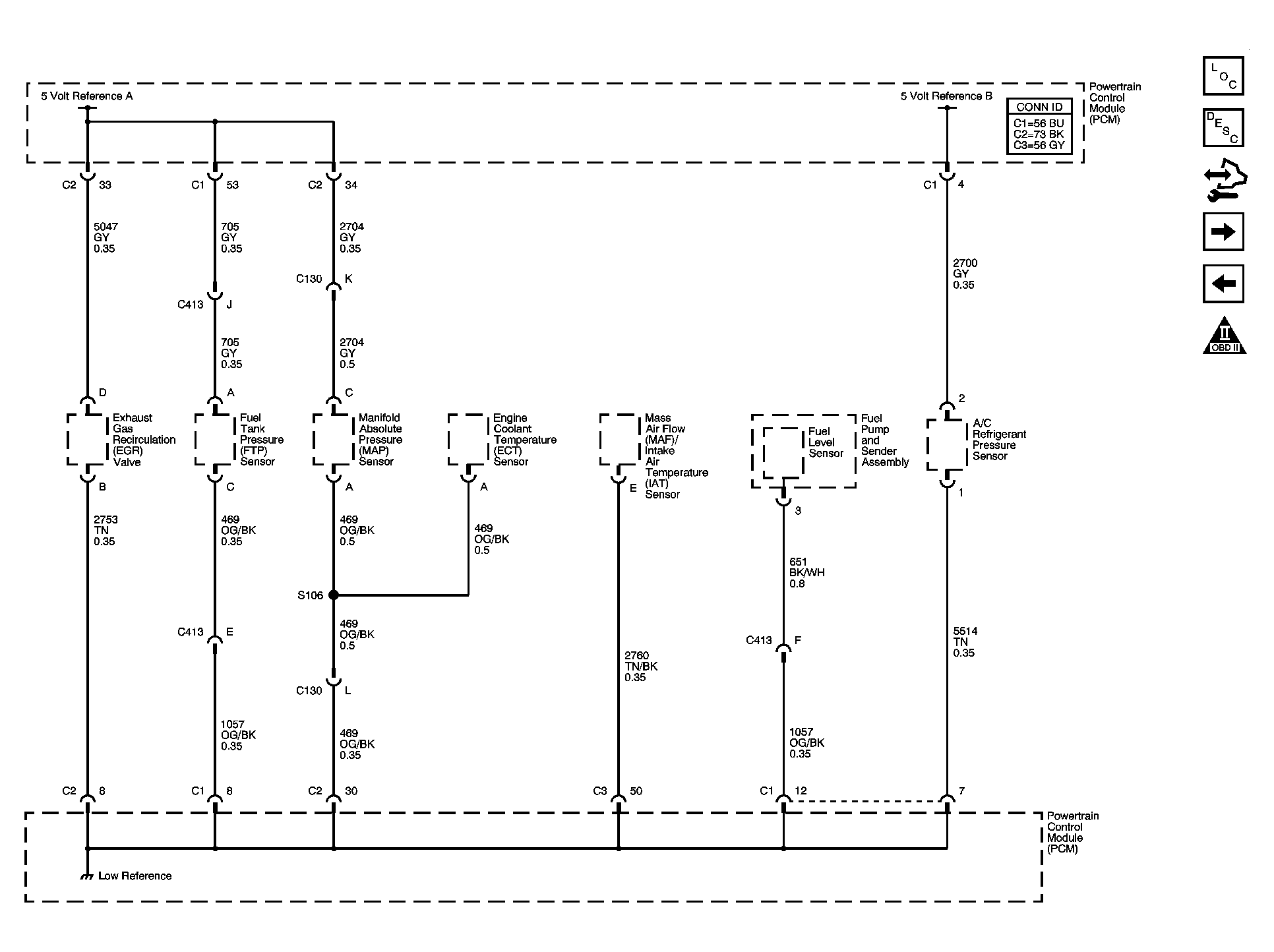

Fig 2: Engine Data Sensors - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

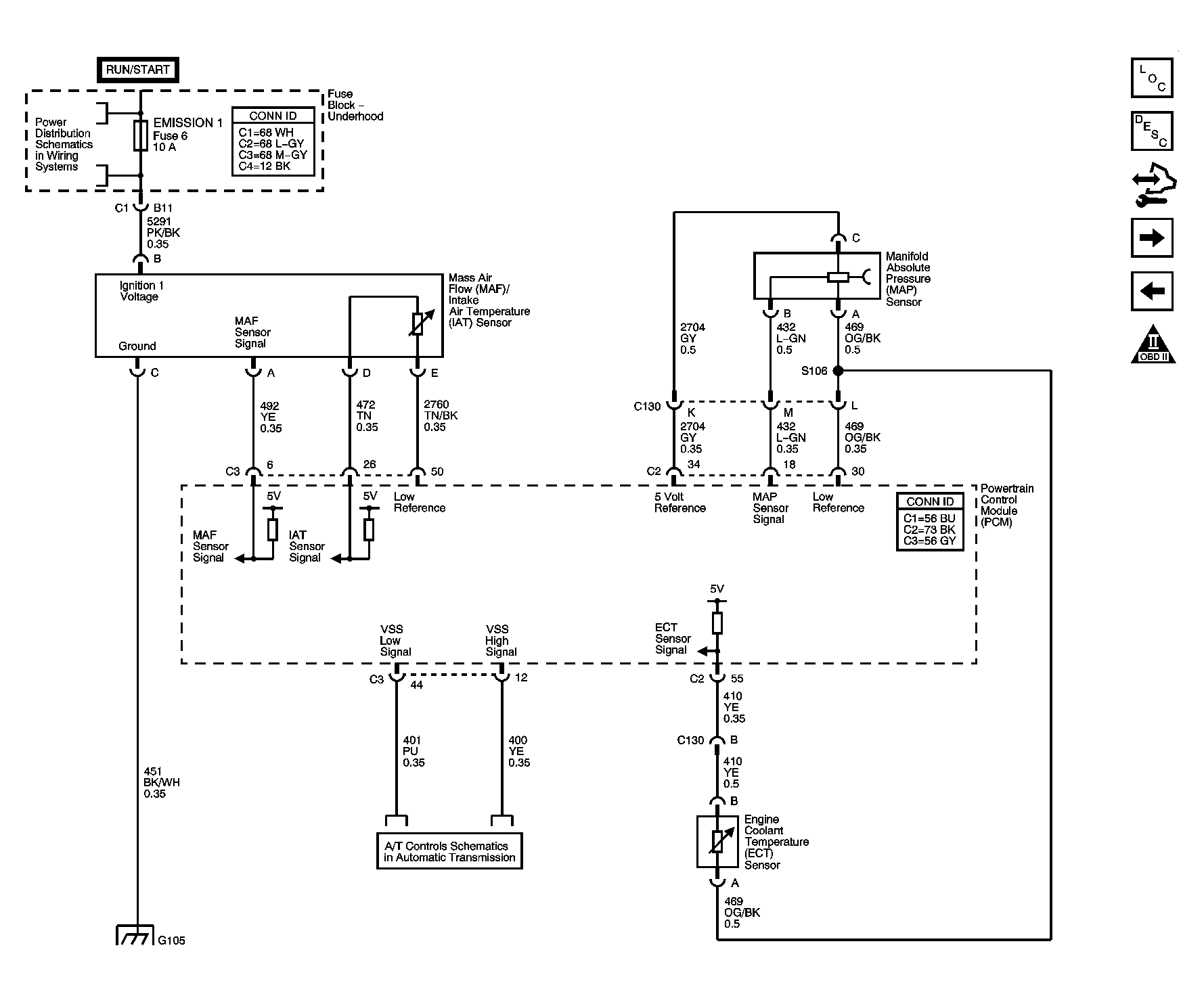

Fig 3: Engine Data Sensors - Pressure and Temperature

Courtesy of GENERAL MOTORS CORP.

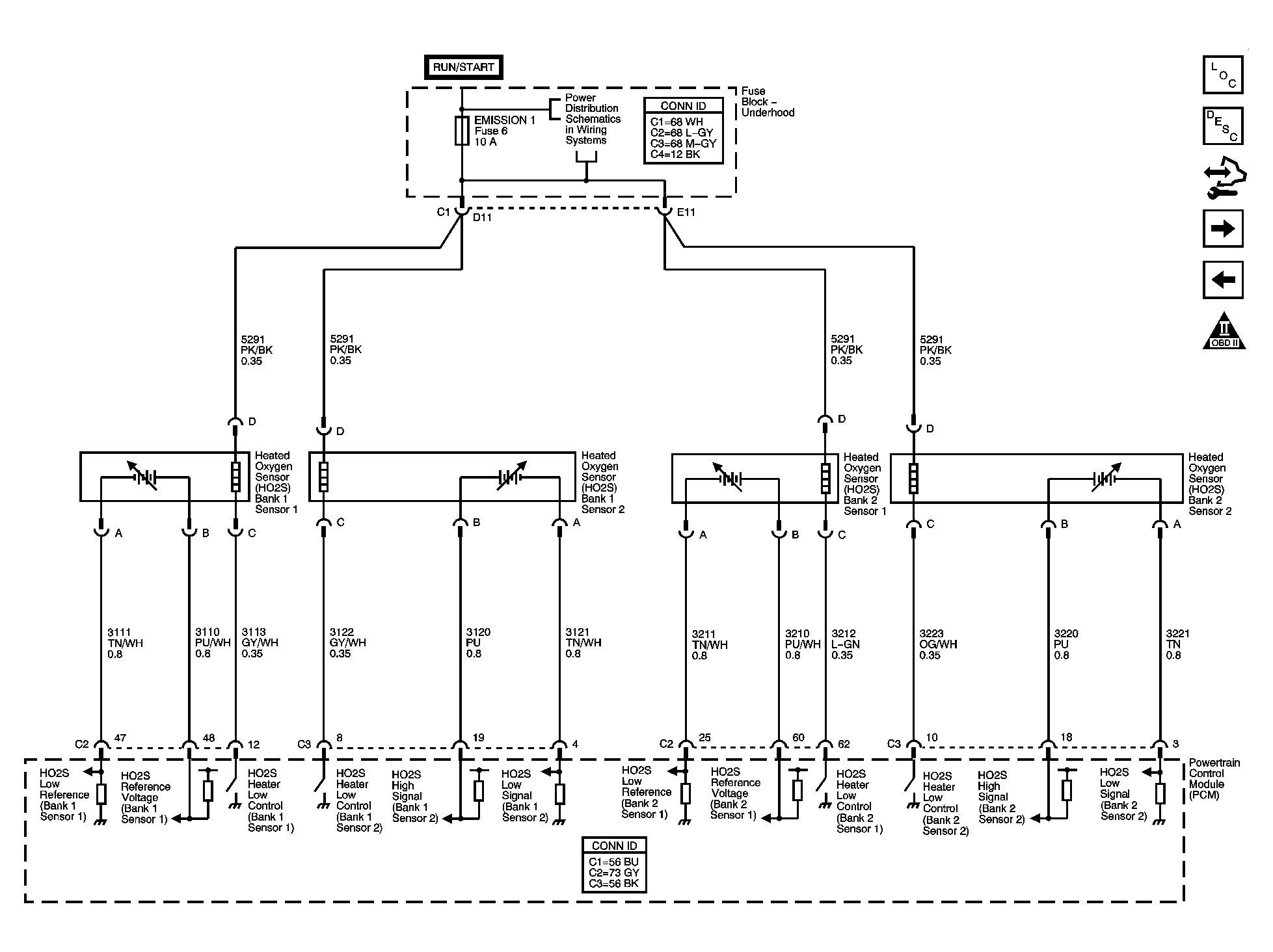

Fig 4: Engine Data Sensors - Heated Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

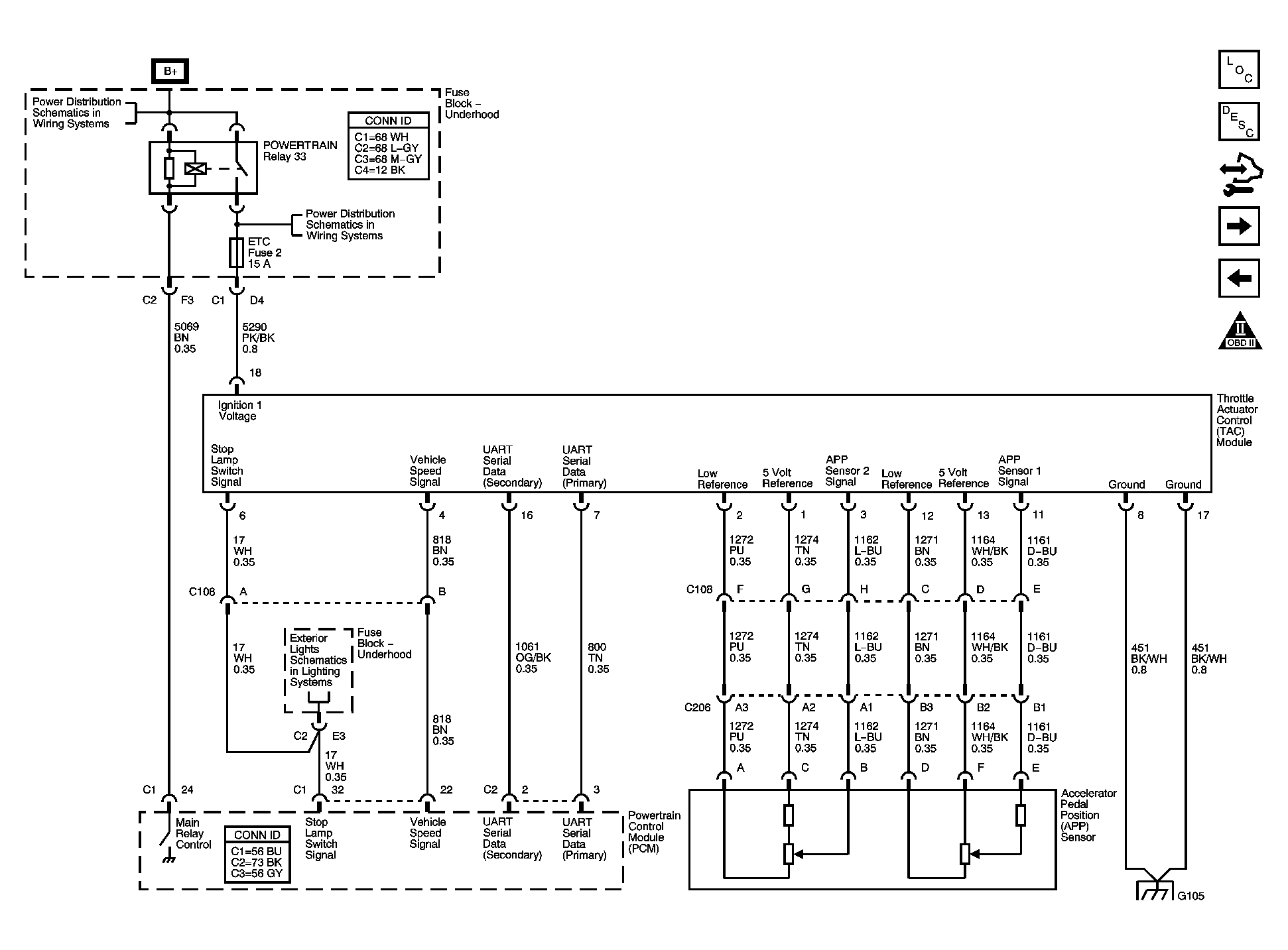

Fig 5: Engine Data Sensors - Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

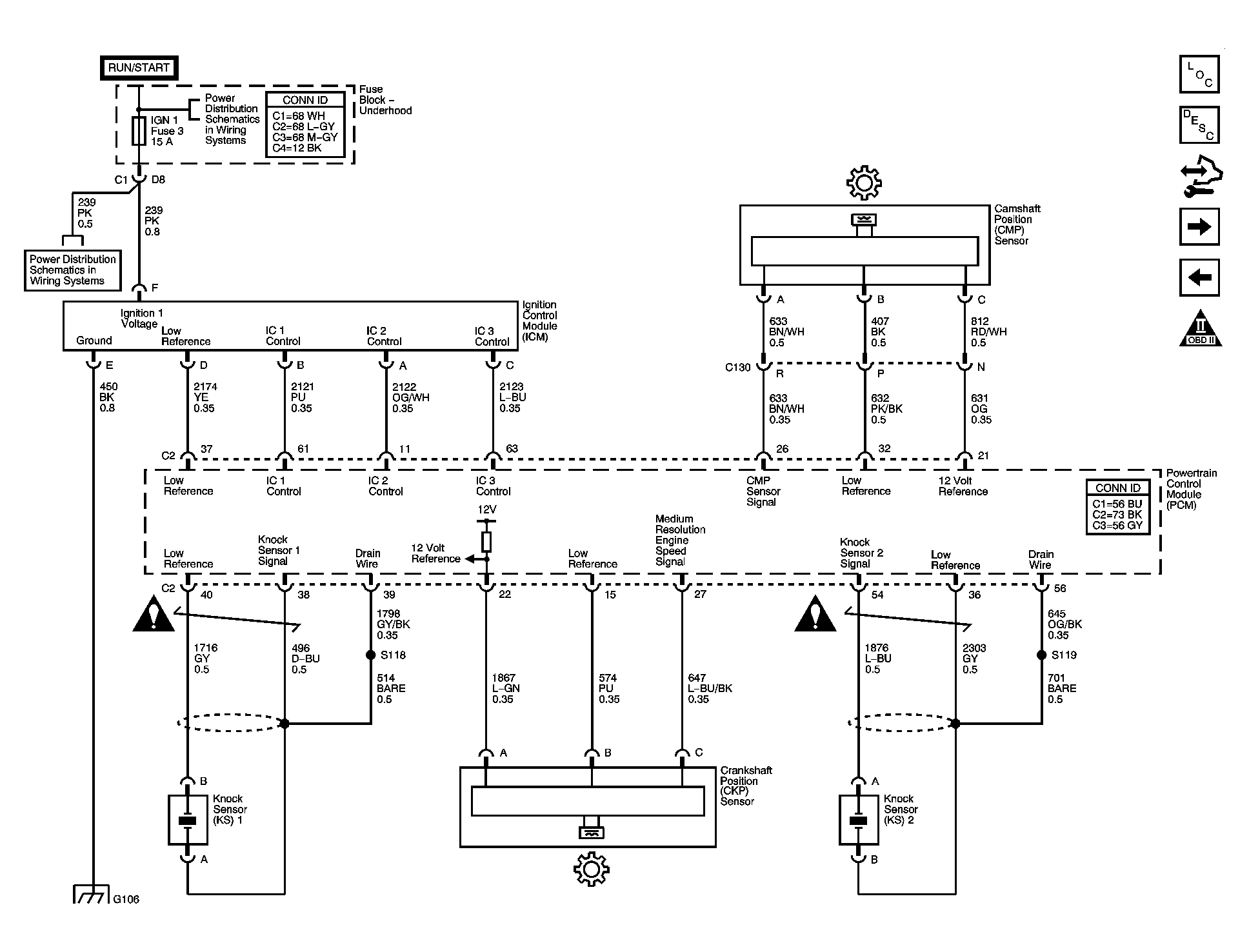

Fig 6: Ignition Controls - Ignition System

Courtesy of GENERAL MOTORS CORP.

Fig 7: Fuel Controls - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

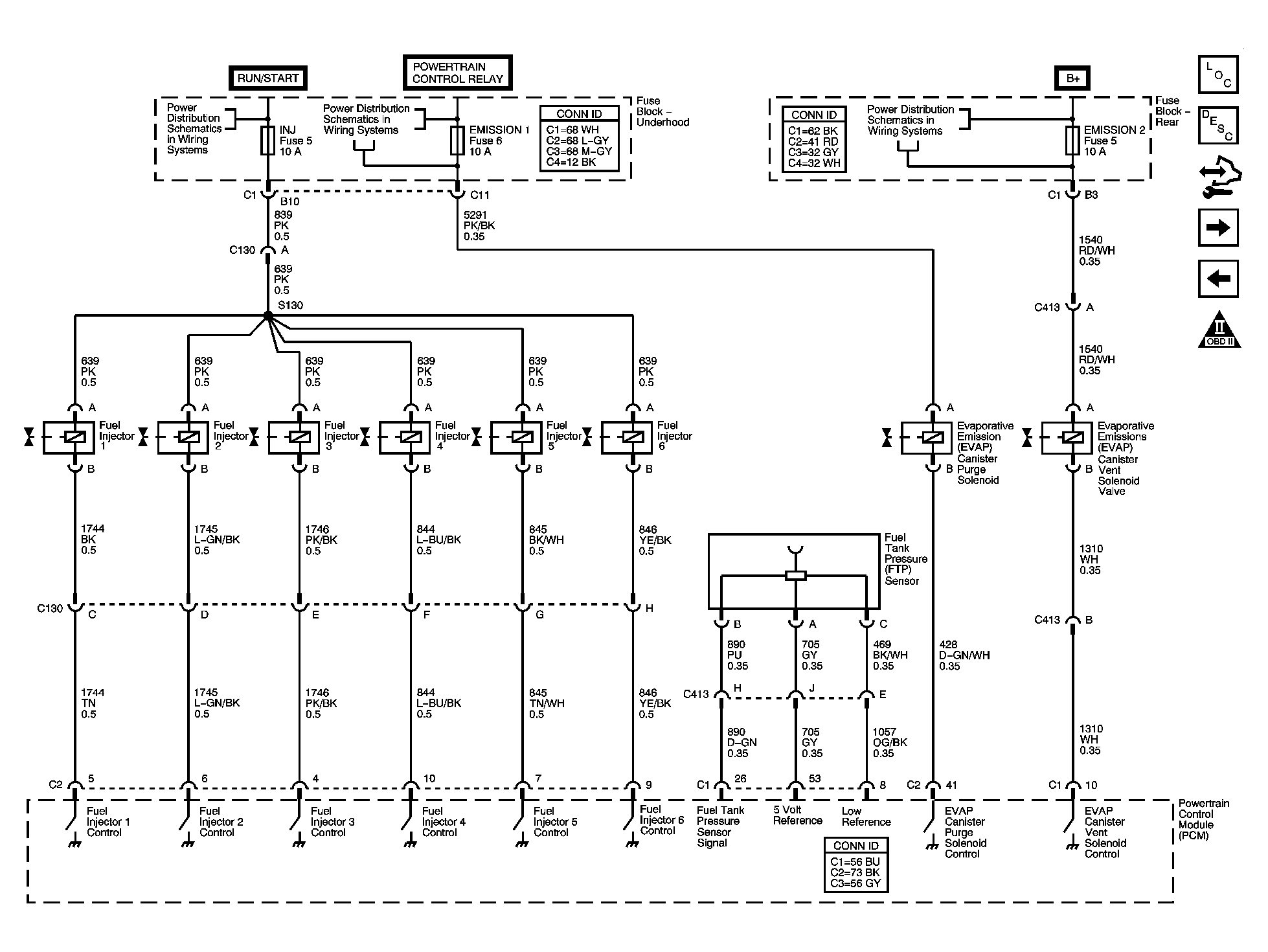

Fig 8: Fuel Controls - Fuel Injectors and EVAP

Courtesy of GENERAL MOTORS CORP.

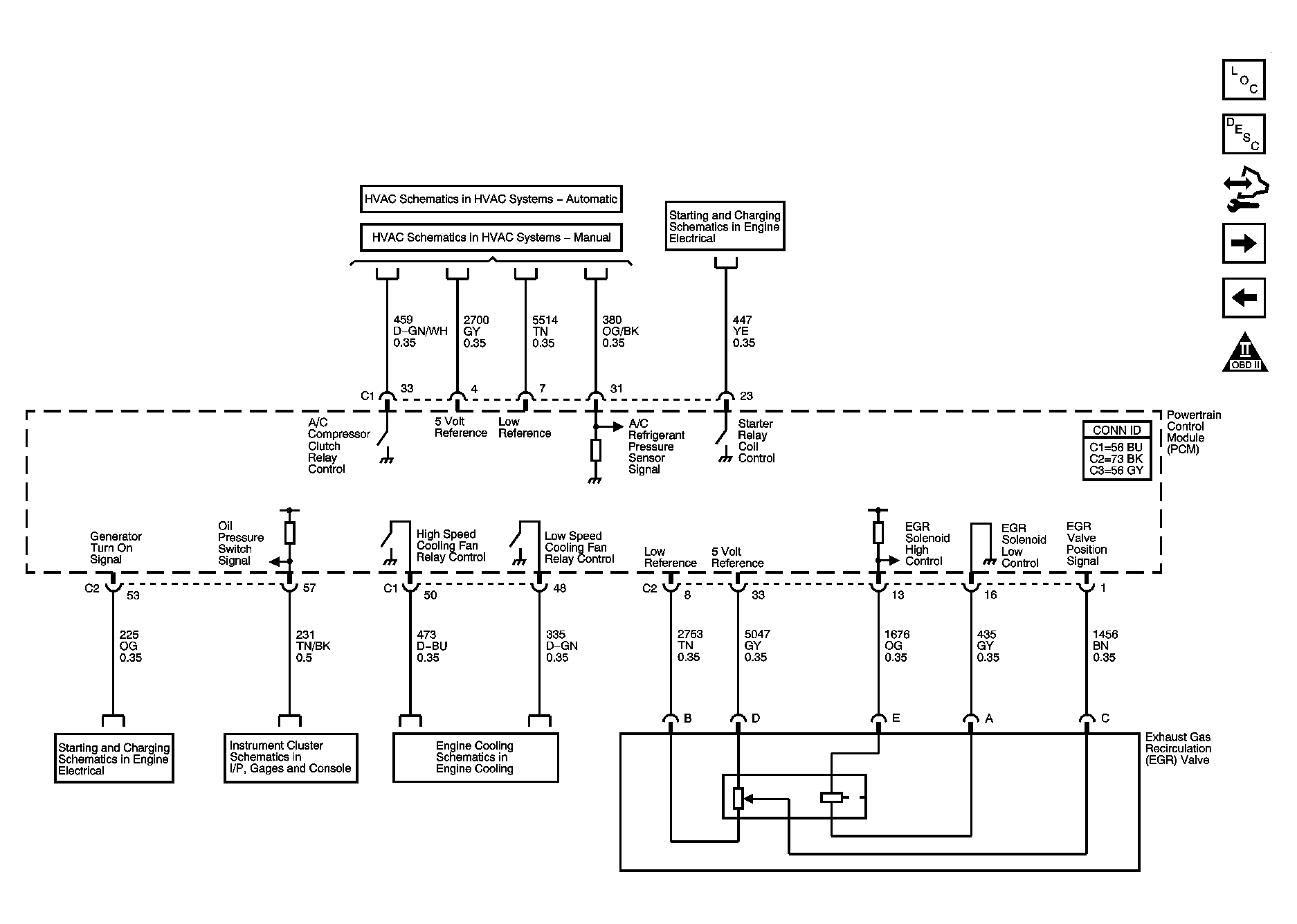

Fig 9: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

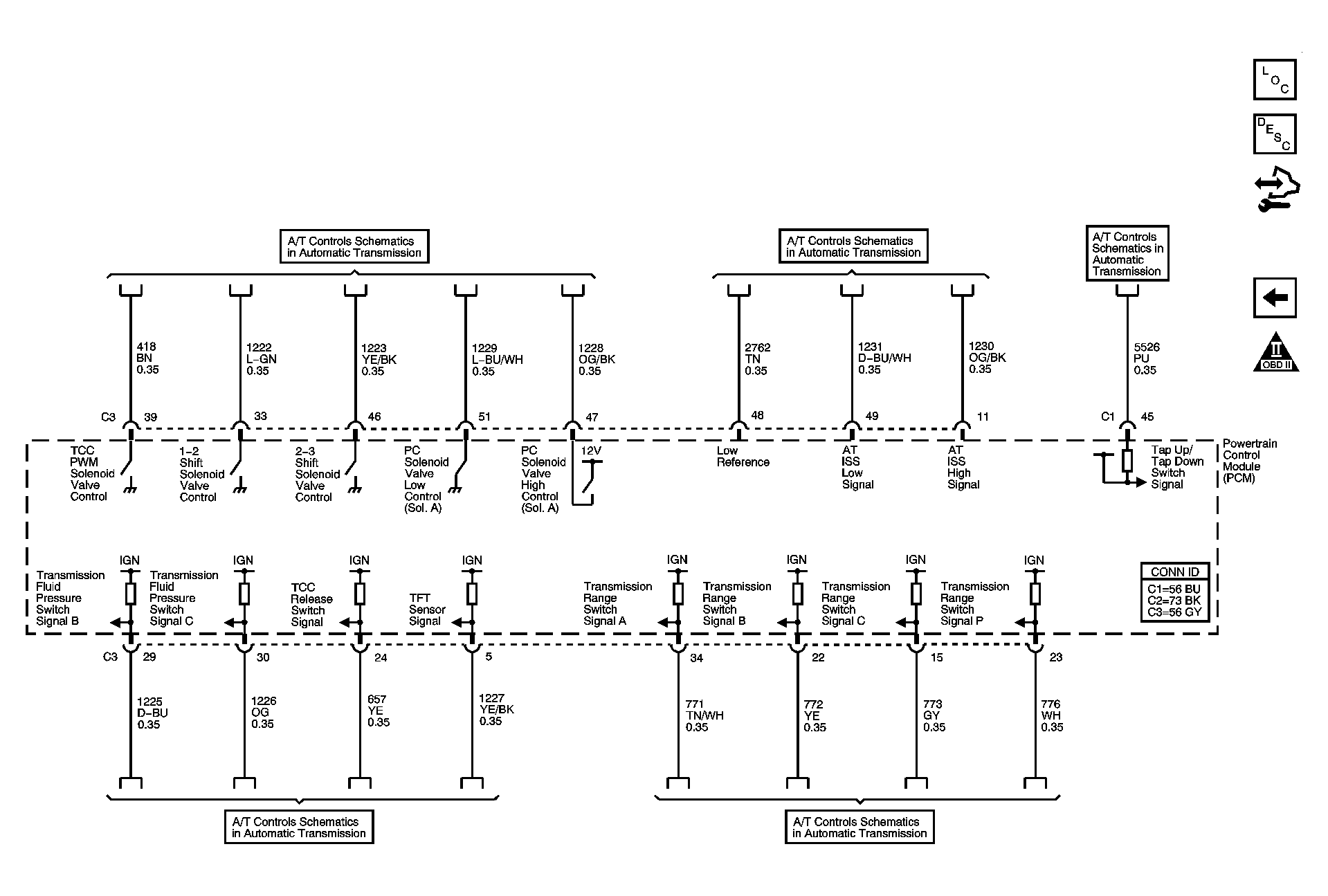

Fig 10: Transmission Control References

Courtesy of GENERAL MOTORS CORP.
