Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

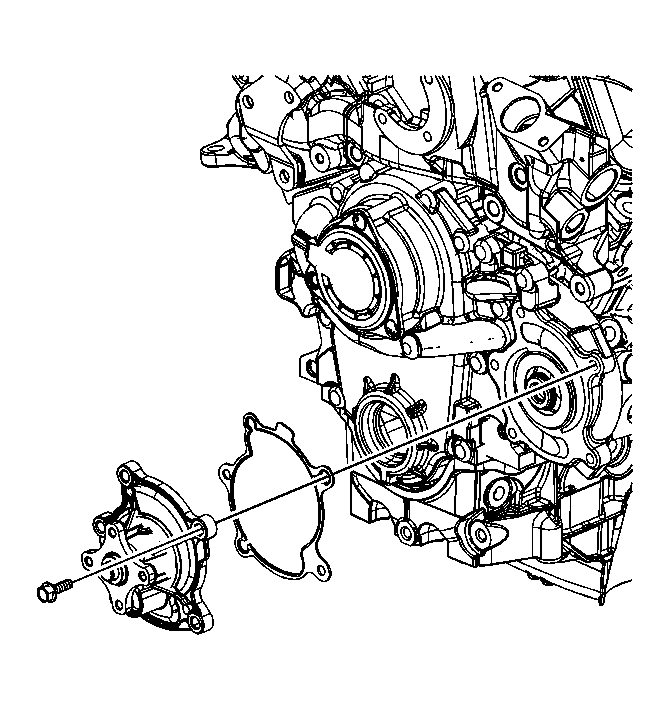

    Fig 1: View Of Water Pump, Bolts & Gasket
    GM1557689Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the water pump gasket and pump.
  2. Install the water pump bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

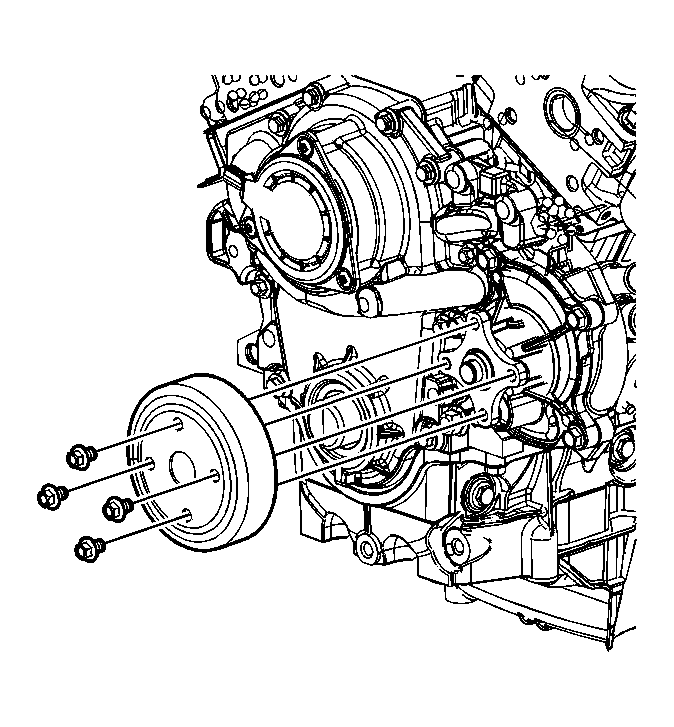

    3. Fig 2: View Of Water Pump Pulley
    GM1557687Courtesy of GENERAL MOTORS CORP.
  3. Install the water pump pulley and bolts until snug.
  4. Install the drive belt. Refer to Drive Belt Replacement .
  5. Tighten the water pump pulley bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  6. Fill the cooling system. Refer to Draining and Filling Cooling System (Static Fill LZ9)  or Draining and Filling Cooling System (Vac-N-Fill) .
  7. Inspect for leaks.
