Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

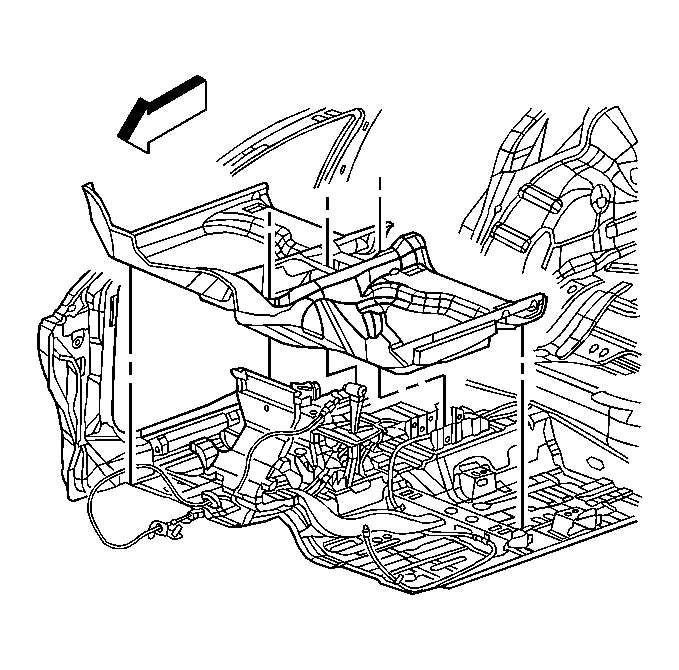

    Fig 1: View Of Front Carpet From Vehicle
    GM1151436Courtesy of GENERAL MOTORS CORP.
  1. Install the front carpet to the vehicle.
  2. Install the right and the left garnish molding from the lower center pillar. Refer to Garnish Molding Replacement - Center Pillar Lower  .
  3. Install the right and the left front carpet retainers. Refer to Carpet Retainer Replacement - Front  .
  4. Install the transaxle floor shift control. Refer to Floor Shift Control Replacement in Automatic Transaxle - 4T40-E/4T45-E.
  5. Install the driver and the passenger front seat. Refer to Seat Replacement - Front Bucket in Seats.
