Radio/Audio System Schematics

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

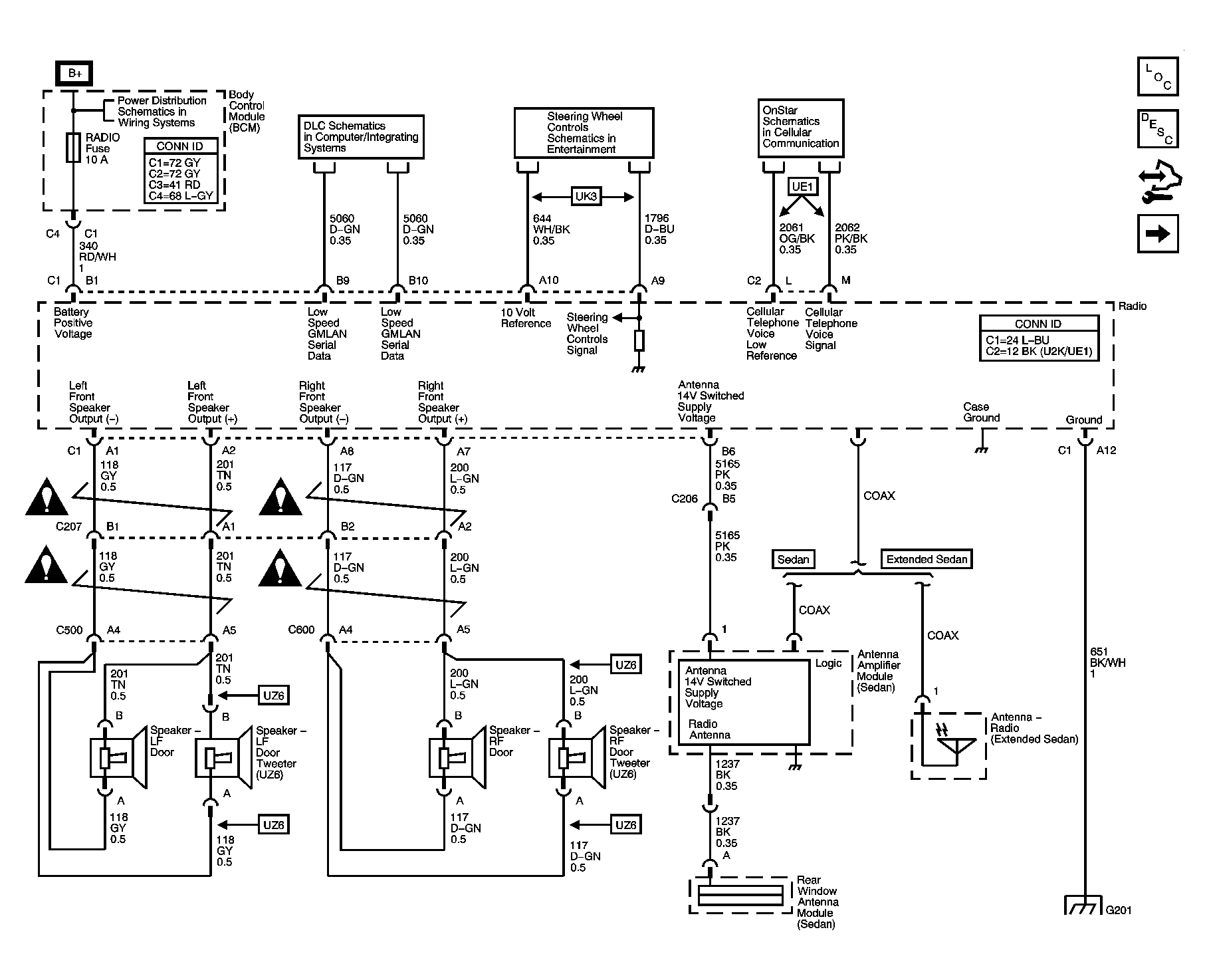

Fig 1: Schematic - Radio Power, Ground, Front Speakers, Antenna and References

Courtesy of GENERAL MOTORS CORP.

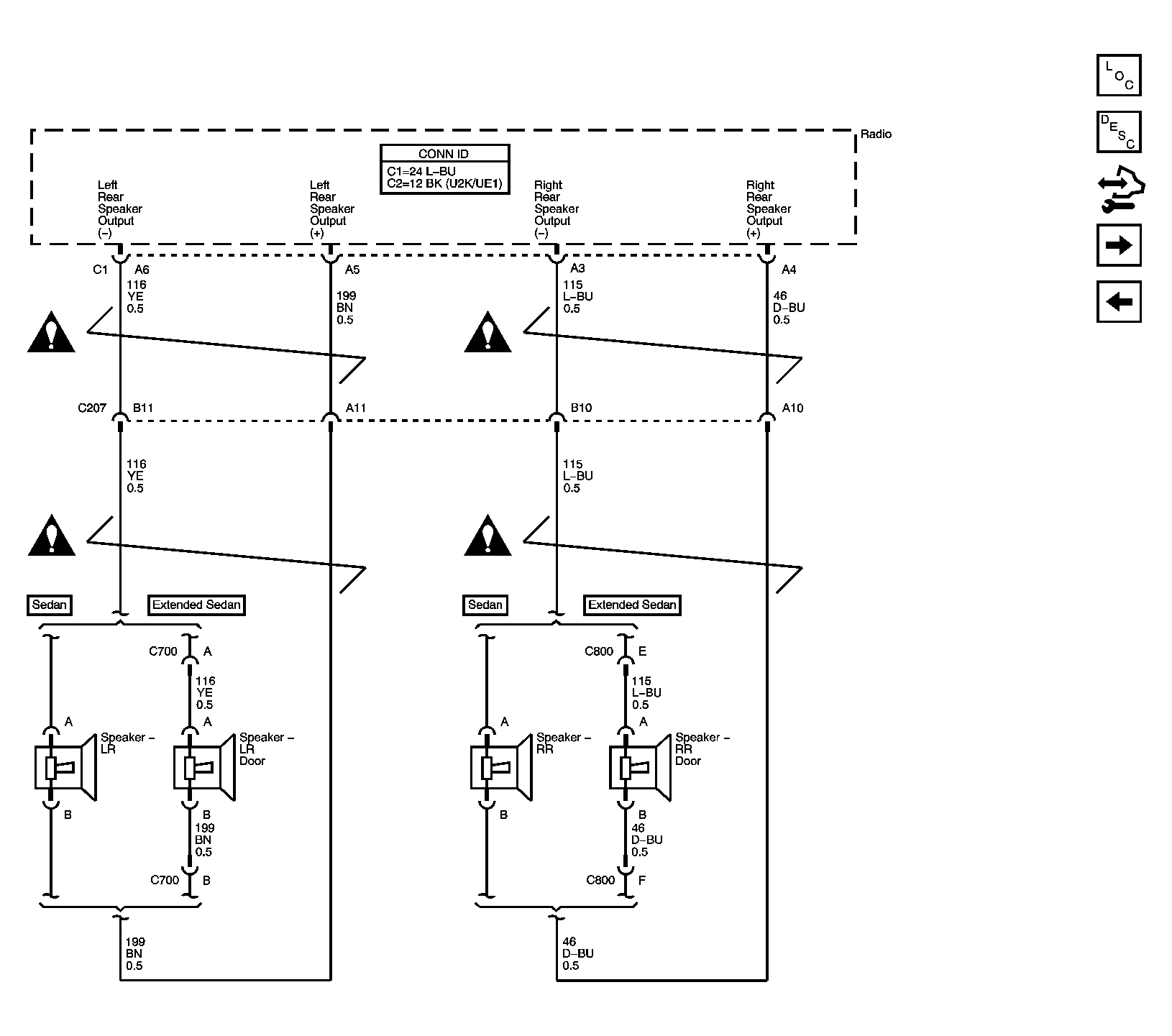

Fig 2: Schematic - Rear Speakers w/o UK6, U32 or U2K

Courtesy of GENERAL MOTORS CORP.

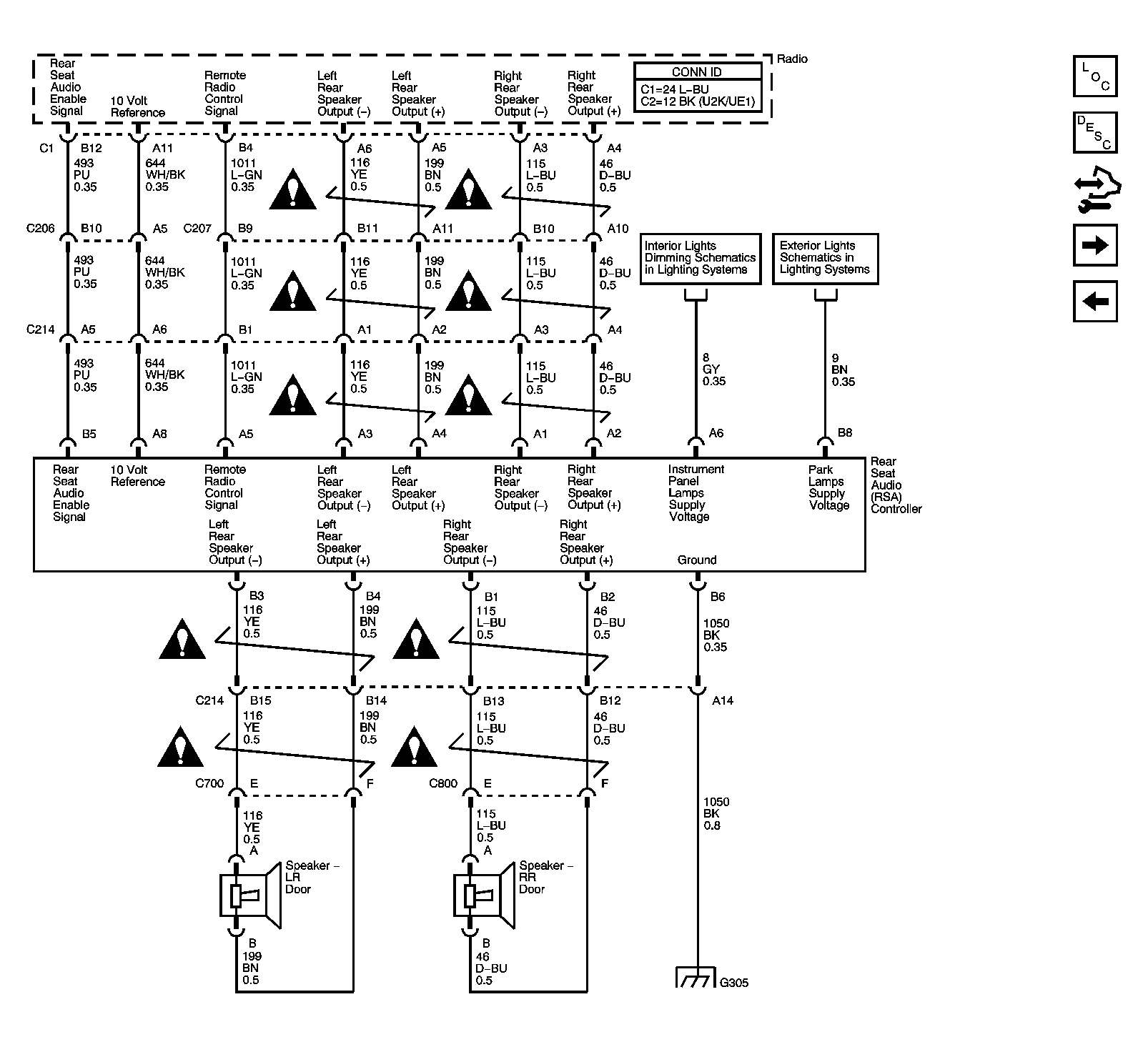

Fig 3: Schematic - Rear Seat Audio (RSA) Controller

Courtesy of GENERAL MOTORS CORP.

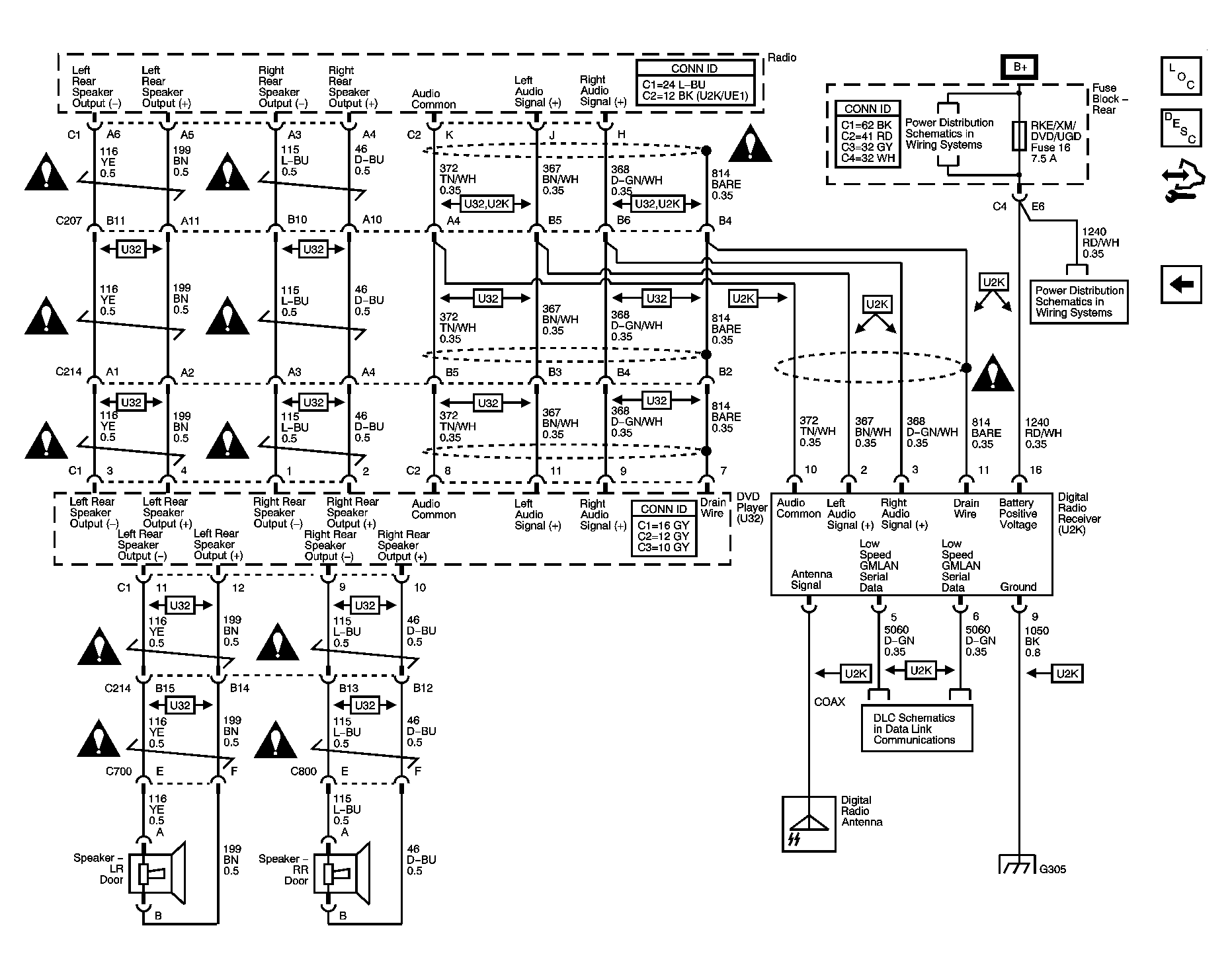

Fig 4: Schematic - DVD Player and Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.
