Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

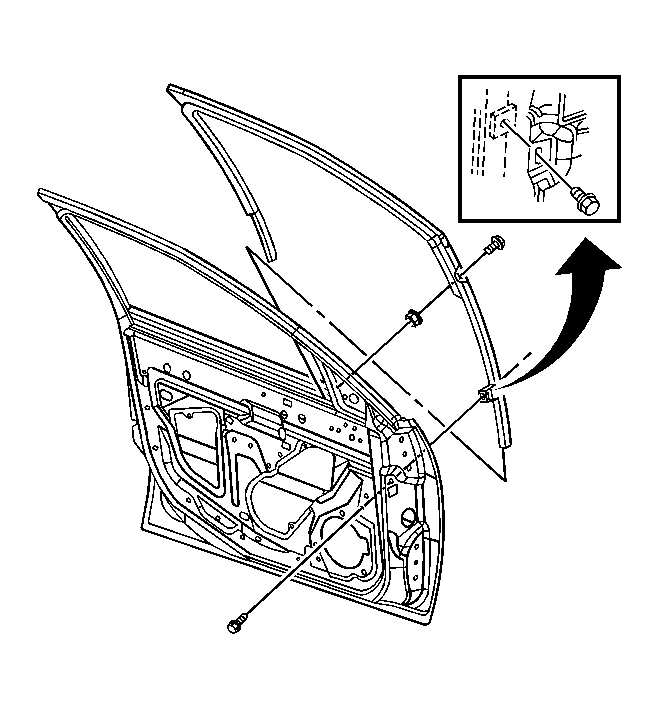

    Fig 1: Installing Screw In Window Channel
    GM1226148Courtesy of GENERAL MOTORS CORP.
  1. Position the window channel into the front door.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the front door window channel screws.

    Tighten:  Tighten the screw to 10 N.m (89 lb in).

  3. Install the window channel to the front door, starting in the top corner working out in both directions.

    Firmly seat the window channel to the front door.

  4. Inspect the window for proper operation.
  5. Install the outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
  6. Install the water deflector. Refer to Water Deflector Replacement - Front Door .
  7. Install the trim panel. Refer to Trim Panel Replacement - Side Front Door .
