Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

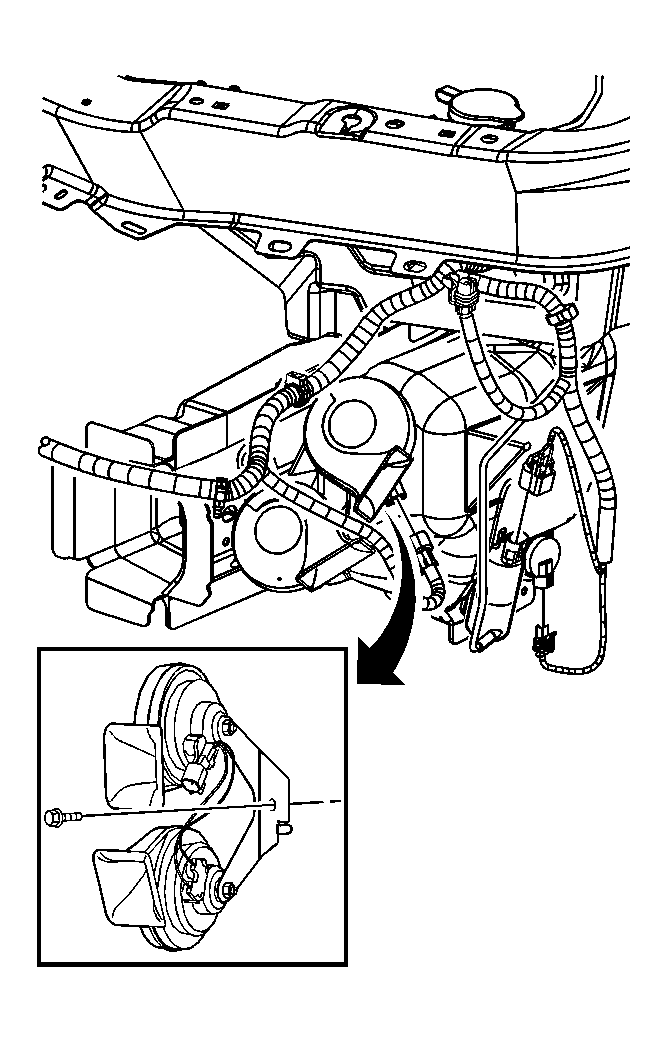

    Fig 1: Removing Horn Bracket Bolt
    GM1317330Courtesy of GENERAL MOTORS CORP.
  1. Position the horn into the slot in the front frame rail.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the horn bracket bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Connect the horn electrical connector.
  4. Install the left headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement in Lighting Systems.
