Installation Procedure

WARNING: This page is about a different car, the 2005 Pontiac Aztek and 2005 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

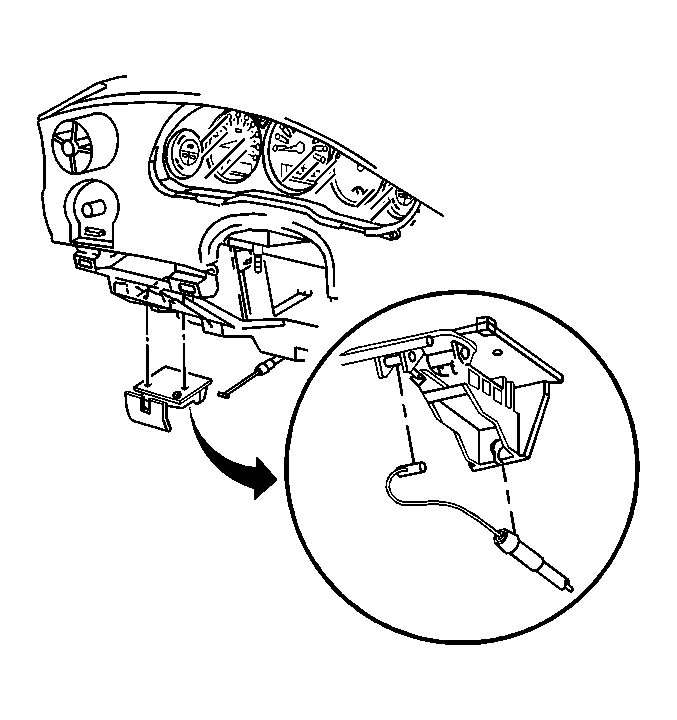

    Fig 1: Locating Hood Release Handle
    GM630479Courtesy of GENERAL MOTORS CORP.
  1. Install the hood release cable to the hood release handle.
    2. Fig 2: Hood Release Handle Base
    GM182644Courtesy of GENERAL MOTORS CORP.
  2. Install the hood release handle to the instrument panel.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolts to hood release handle base.

    Tighten:  Tighten the hood release handle base bolts to 2 N.m (18 lb in).

  4. Install the knee bolster panel. Refer to Knee Bolster Replacement in Instrument Panel, Gauges, and Console.
  5. Install the left IP Insulator Panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gauges, and Console.
