Installation Procedure

WARNING: This page is about a different car, the 2005 Pontiac Aztek and 2005 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

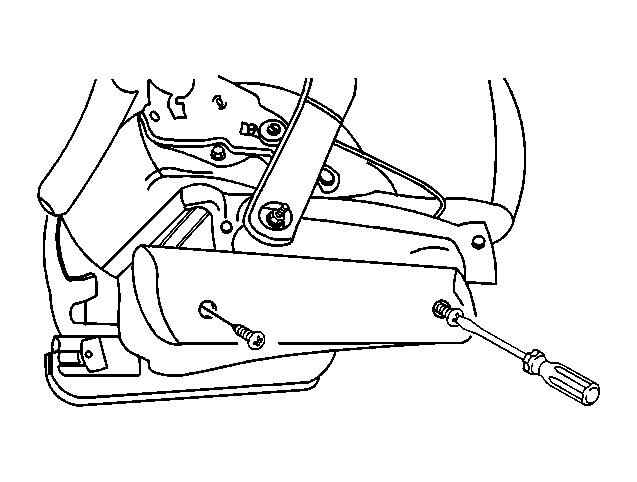

    Fig 1: Locating Front Seat Track Covers Screws
    GM626934Courtesy of GENERAL MOTORS CORP.
  1. Install the track covers to the front seat.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screws to the front seat track covers.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  3. Install the front bucket seat. Refer to Seat Replacement - Bucket .
