Outside Mirror Schematics
Outside Mirror Schematics

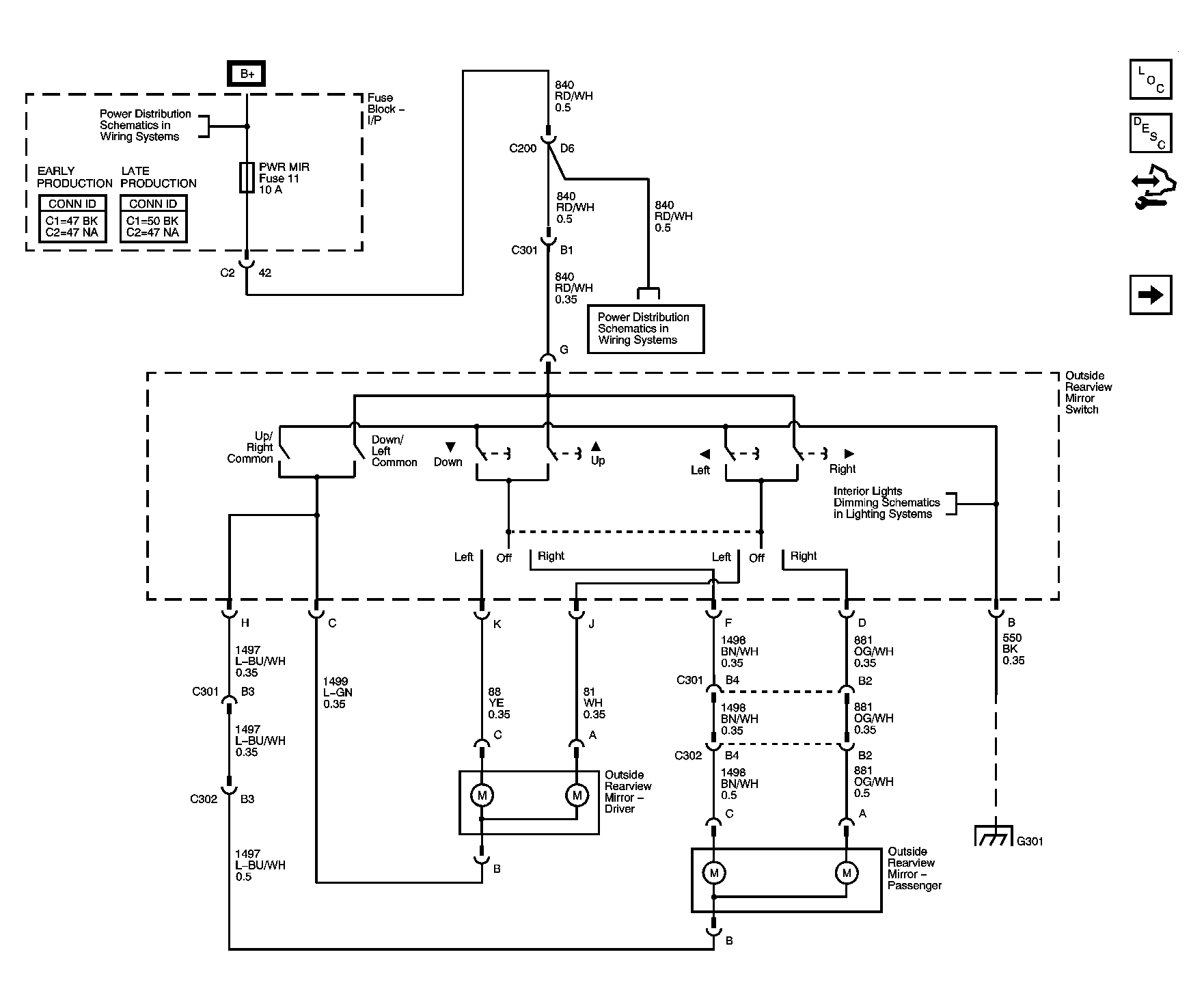

Fig 1: Power Mirrors Schematic
Courtesy of GENERAL MOTORS CORP.

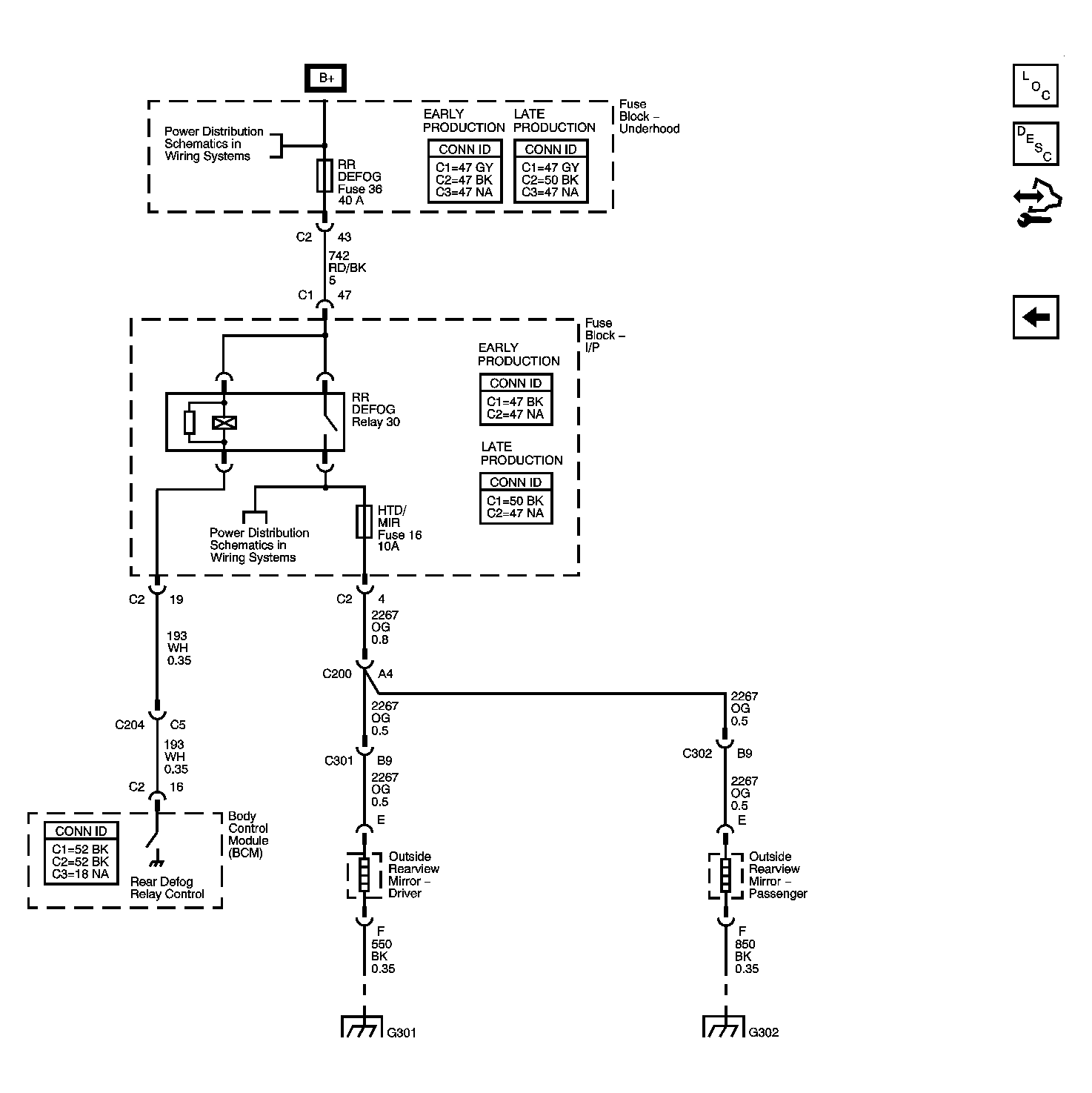

Fig 2: Heated Mirrors Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
