Removal Procedure

CAUTION: When working with any type of glass, use approved safety glasses and gloves to reduce the chance of personal injury.
CAUTION: Refer to Express Window Down Caution in Cautions and Notices.
  1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  2. Remove the front door window inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .

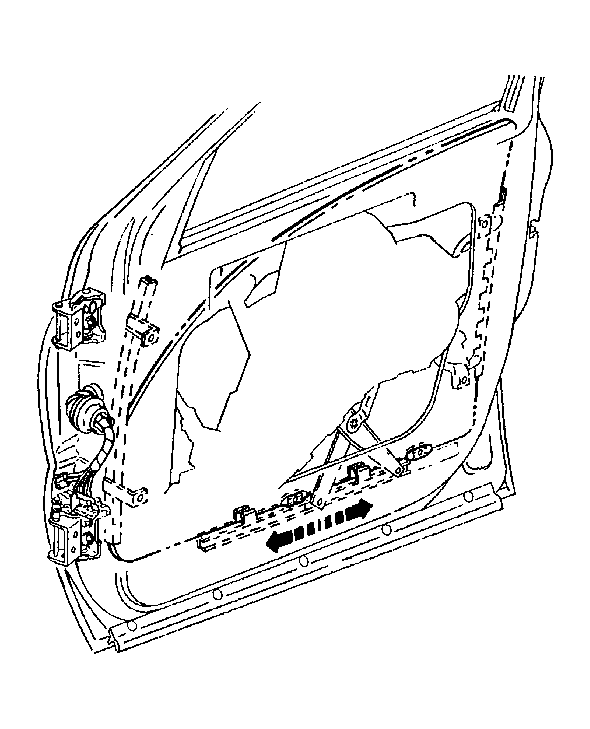

    3. Fig 1: View Of Front Door Window & Regulator Track
    GM319809Courtesy of GENERAL MOTORS CORP.
  3. Using a small flat-bladed tool, press in on the retaining tabs to release the front door window from the front door lower run channel.
  4. Slide the front door window from the lower run channel.
    5. Fig 2: View Of Front Door Window Assembly
    GM319807Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door window from the front door.
