Power Window Switch Replacement - Right Front

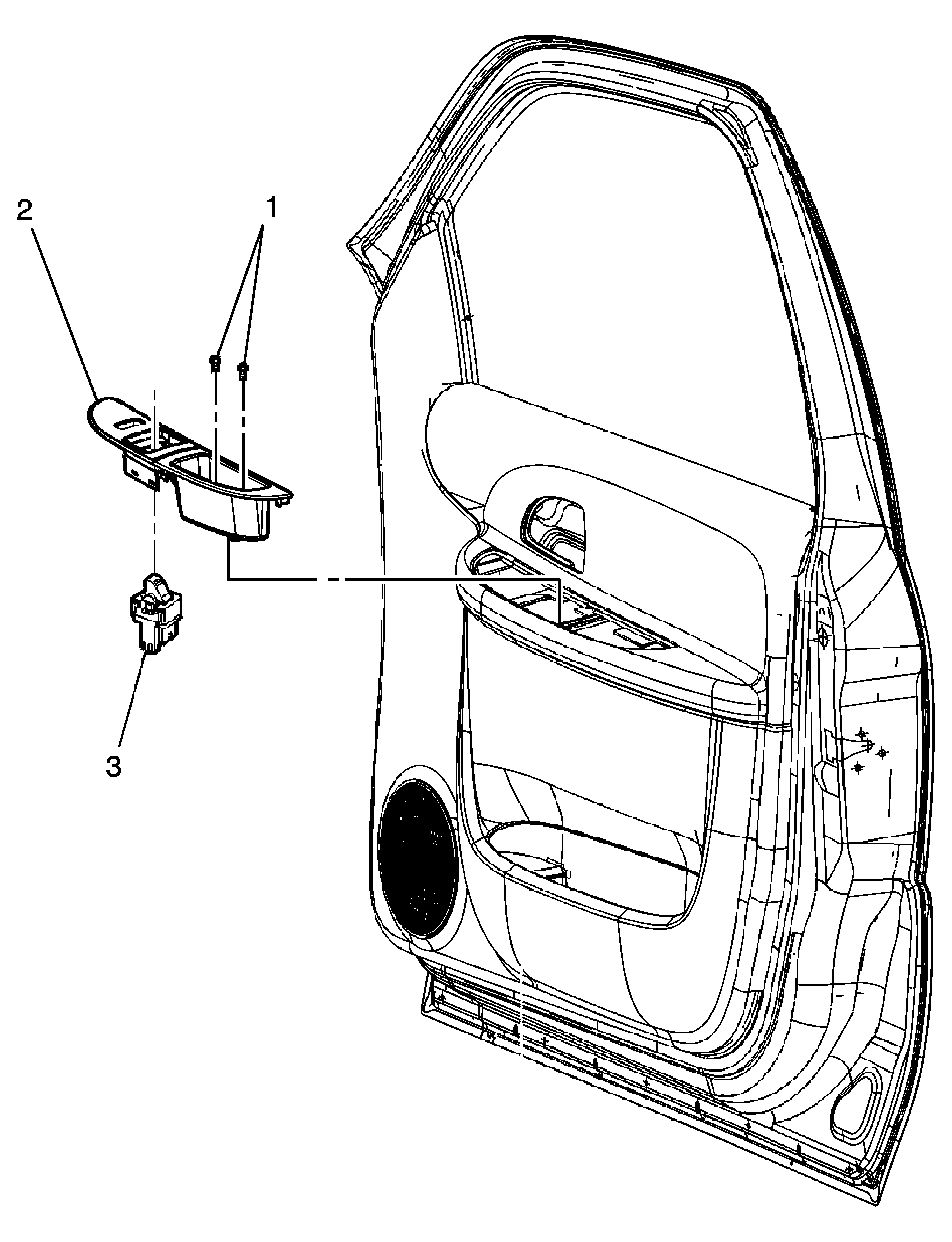

Fig 1: Replacing Power Window Switch - Right Front

Courtesy of GENERAL MOTORS CORP.

Power Window Switch Replacement - Right Front

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Screws, Door Pull Handle (Qty: 2) Tighten:  2 N.m (18 lb in)
2	Bezel, Switch Plate
3	Switch, Power Window
