Motor Replacement - Power Mirror

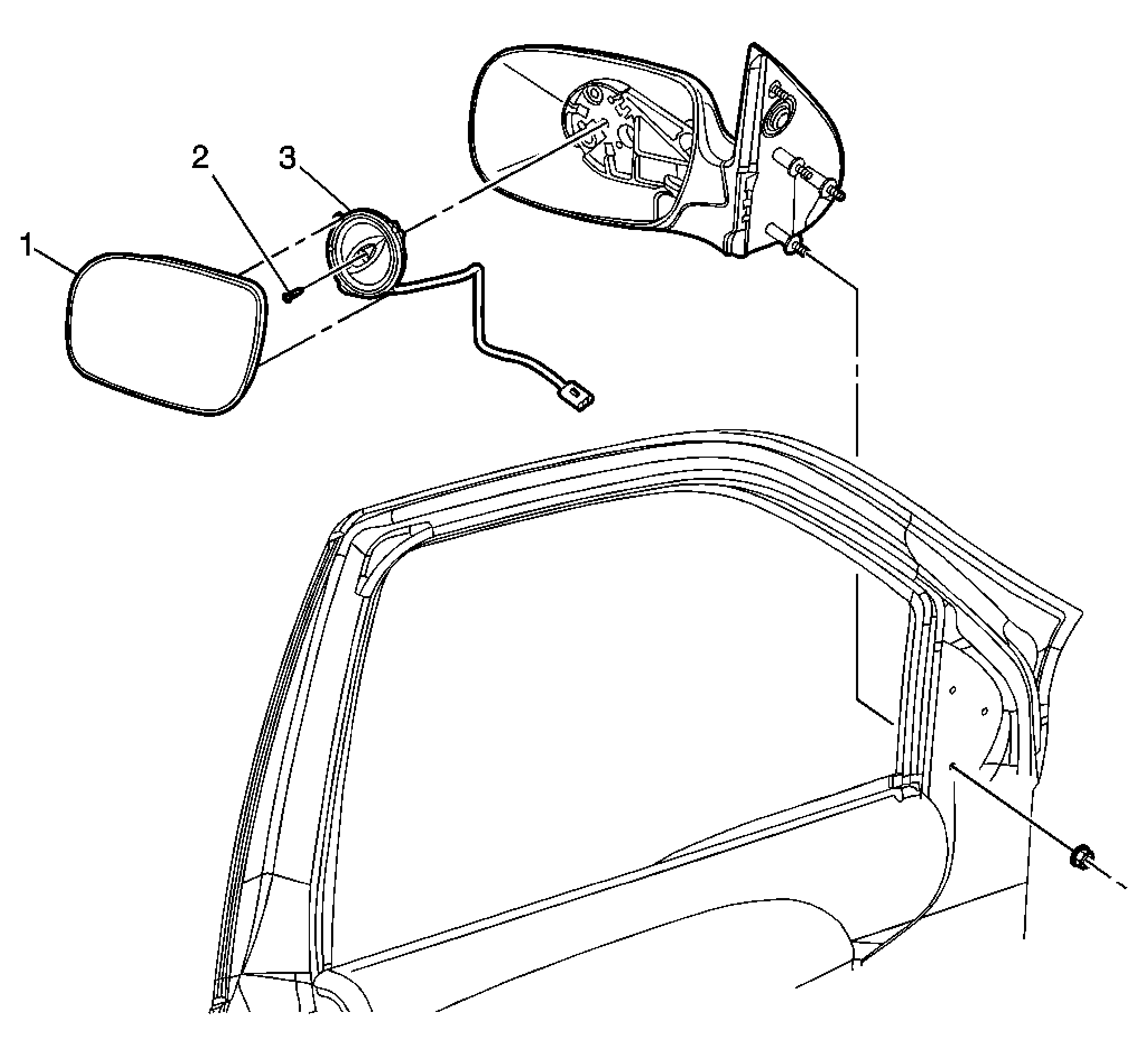

Fig 1: Identifying Power Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door .
1	Mirror Glass, Outside Rearview CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and Notices. Tip: Apply masking tape to the top of the outside of the mirror housing to prevent damage. Push the mirror face inward at the bottom until full travel is reached. Insert a J 38778 Door Trim Pad Clip Remover or equivalent behind the glass and the first rib support and pry outward until the mirror face is released. When installing the mirror glass align the mirror face to the backing plate and apply pressure, using a rubber sanding block or equivalent, until an audible click is heard.
2	Screw, Front Door Mirror Motor Tighten: 3 N.m (25 lb in)
3	Motor, Front Door Outside Rearview Mirror Tip: Disconnect the electrical connector.
