Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door conduit. Refer to Rubber Conduit Replacement - Front Door .
  4. Remove the front door window belt inner sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  5. Remove the front door window weatherstrip. Refer to Weatherstrip Replacement - Front Door Window .
  6. Remove the front door window. Refer to Window Replacement - Front Door .

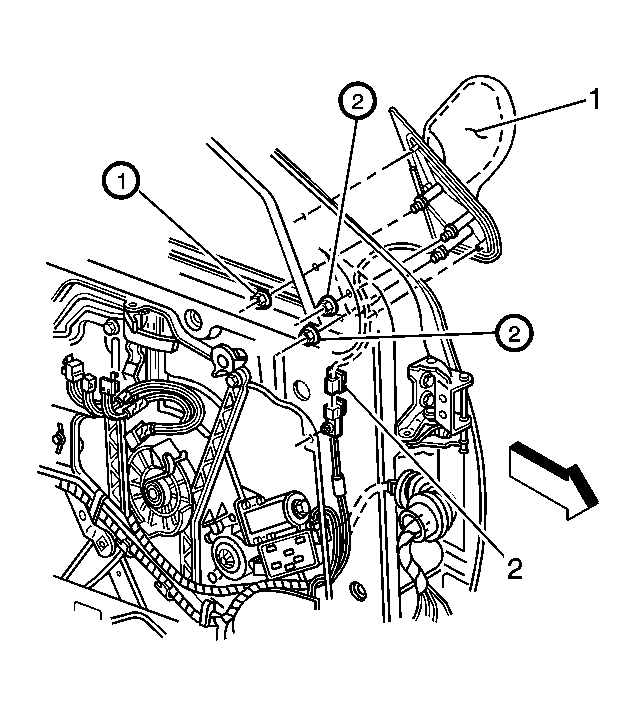

    7. Fig 1: Removing/Installing Outside Rearview Mirror
    GM1482358Courtesy of GENERAL MOTORS CORP.
  7. Remove the outside rearview mirror (1). Refer to Mirror Replacement - Power .
    8. Fig 2: View Of Front Door Module
    GM1480545Courtesy of GENERAL MOTORS CORP.
  8. Remove the front door module (2). Refer to Door Module Replacement - Front .
    9. Fig 3: Identifying Outside Door Handle Components
    GM1480535Courtesy of GENERAL MOTORS CORP.
  9. Remove the front door outside handle (5). Refer to Door Handle Replacement - Front Outside .
  10. Remove the front door lock. Refer to Lock Replacement - Front Door .
  11. Remove the front door window belt outer sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
  12. Remove the front door window run channel. Refer to Window Run Channel Replacement - Front Door .
  13. Remove the front door molding. Refer to Molding Replacement - Door Body Side (Front) or Molding Replacement - Door Body Side (Rear) in Exterior Trim.
  14. Remove the front door hinges. Refer to Hinge Replacement - Front Door .
    15. Fig 4: View Of Front Door
    GM533515Courtesy of GENERAL MOTORS CORP.
  15. With the aid of an assistant, remove the front door shell from the hinge pillar.
